Intel i5/i7 12.2 inch Windows 11 Touch Screen Rugged Tablet PC EM-I20A IP65 4G

• Intel Core i5-1235U/i7-1255U processor

• Windows 11 OS and 8GB RAM+128GB storage

• 12.2 inch IPS Full HD screen with 10-point capacitive touch

• 2.4G/5.8G Dual band WIFI 6 & High speed 5G

• BT 5.1 fast transmission

• IP65 Waterproof and Dustproof, Anti-Static

• 1.22m drop resistant & MIL-STD-810G certified

• Support GPS and GLONASS, optional Beidou

• Choose 1 from 4 modules (2D scan engine, RJ45 Gigabit Ethernet, DB9 and USB2.0 )

Intel Windows Rugged Tablet I7/I5
Intel Windows Rugged Tablet I7/I5
Intel Windows Rugged Tablet I7/I5
Intel Windows Rugged Tablet I7/I5
Intel Windows Rugged Tablet I7/I5
ip65 ip65
gps gps
nfc nfc
2d 2d
4g 4g
wifi wifi
bluetooth bluetooth
windows windows
high capacity high capacity
camera camera
5g 5g

Features of Intel Windows 11 Rugged Tablet I7/I5 EM-I20A

Speed up your productivity

Equipped with the latest and seamless multi-communication including Wi-Fi 6, Bluetooth 5.0, 5G LTE and NFC reader, field operators can experience faster data transfer, less latency, and broader coverage throughout the entire task.

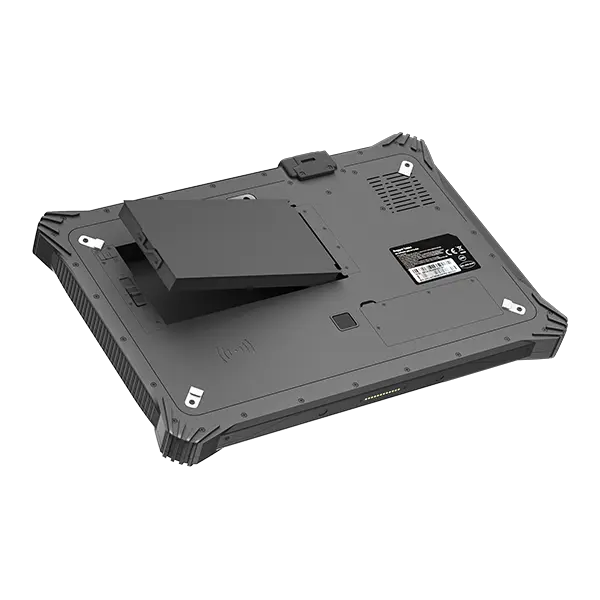

Two batteries, Long standby

The I20A’s hot-swappable dual-battery design allows you to enjoy an uninterrupted working time. This unique design allow you to swape a new battery in while running important applications.


Field-tough Tool

The I20A has been independently tested and certified to MIL-STD 810G and IP65 standards. It is tough enough to withstand repeated drops, extreme temperatures, altitudes, humidity, water and dust exposure.

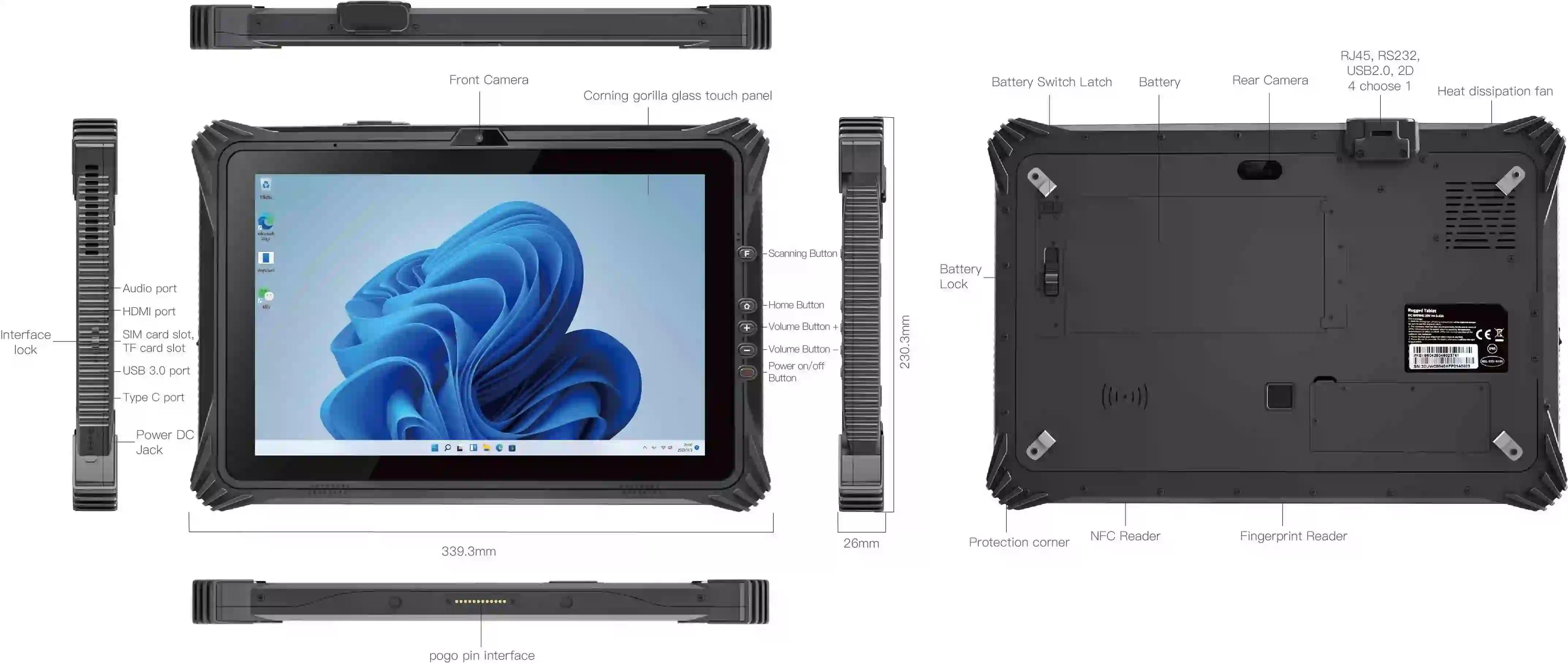

Six views of Intel Windows 11 Rugged Tablet I7/I5 EM-I20A



Specifications of Intel Windows 11 Rugged Tablet I7/I5 EM-I20A

Basic parameters
Dimension339.3 x 230.3 x 26mm
Weightdevice unit: 1500g
Product Colorblack
LCD12.2 inch LCD 16:10,1920×1200, 650nits
Touch Panel10 point G+G capacitive touch screen
CameraFront 2.0MP Rear 8.0MP
I/O

USB 3.1 Type-A x 1, USB Type-C x 1,

SIM Card x 1, TF Card x 1,

HDMI 1.4a x 1,

12pins Pogo Pin x 1,

Φ3.5mm standard earphone jack x 1,

Φ5.5mm DC jack x 1

PowerAC100V ~ 240V, 50Hz/60Hz, Output DC 19V/3.42A
NFC Optional
FingerprintSPI fingerprint (power on login)
Performance parameter
CPUIntel Core i5-1235U/i7-1255U
OSWindows 11, Optional Windows 10
RAM16GB
Storage128GB
Network connections
WIFIWi-Fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax (2.4G/5.8G)
Bluetooth

BT5.1

5G

5G SA&NSA:

LTE FDD: B1/B3/B5/B7/B8/B20 LTE-TDD:

B40  WCDMA:

B1/B5/B8 GSM:

B3/B8 N1/N3/N5/N7/N8/N20/N28/N38/N40/ N41/N71/N77/N78/N79

GNSSGPS, Glonass, Optional Beidou
Reliability
Operate Temperature-20 °C ~ 60 °C
Store Temperature-30 °C ~ 70 °C
Humidity95% Non-Condensing
Rugged FeatureIP65 certified, MIL-STD-810G certified
Drop Height1.22m drop
Electrostatic Discharge± 8kV contact discharge, ± 15kV air discharge
Battery 1
Capacity7.4V/700mAh
TypeBuilt-in Li-polymer battery
Endurance

30mins ( 50% volume sounds, 200 lumens brightness, 1080P HD video display by default )

Battery 2
Capacity7.4V/6300mAh
TypeRemovable Li-polymer battery
Endurance4.5hrs ( 50% volume sounds, 200 lumens brightness, 1080P HD video display by default )
Extension modules(1 out of 4)
Ethernet interfaceRJ45 (10/100M) x 1, Support customized (10/100/1000M)
Serial portDB9 (RS232) x 1
USB2.0USB 2.0 x 1
QR Code ScannerOptical resolution: 5mil, scan speed: 50 times/s


* Please be aware all technical data, specification and performance figures subject to change without notice.


Accessories of Intel Windows Rugged Tablet I7/I5 EM-I20A

Various modules and accessories can be selected to meet customers' application in various industries.


docking charger
docking charger
hand strap
hand strap
vehicle mount
vehicle mount
car charge
car charge
carry handle
carry handle
battery
battery

Application Range of Intel Windows Rugged Tablet I7/I5 EM-I20A

Various modules and accessories can be selected to meet customers' application in various industries.


emdoor surveying mapping industry
emdoor surveying mapping industry
emdoor manufacturing industry
emdoor manufacturing industry
emdoor energy industry
emdoor energy industry
emdoor public industry
emdoor public industry
emdoortrafficindustry220x220
emdoortrafficindustry220x220
emdoor warehouse logistics industry
emdoor warehouse logistics industry
