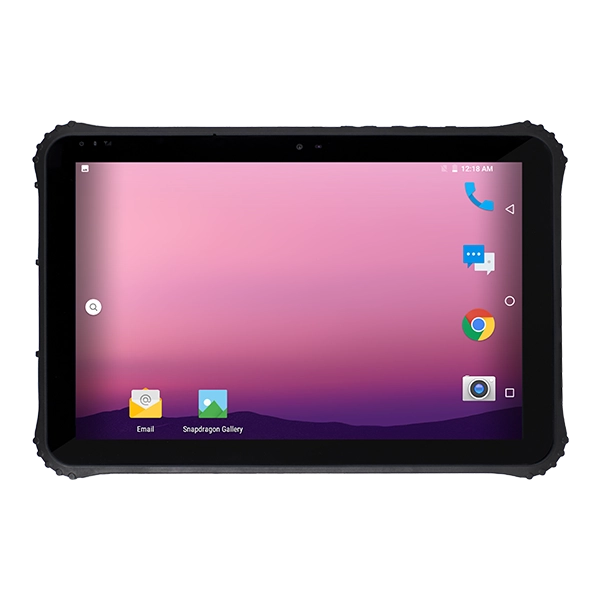

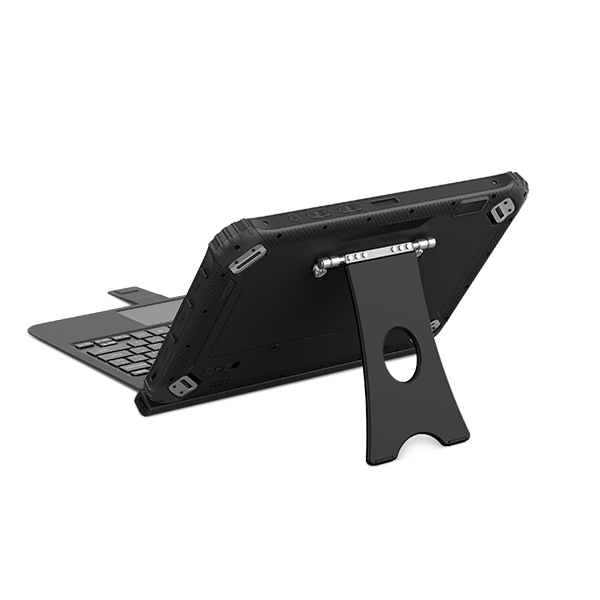

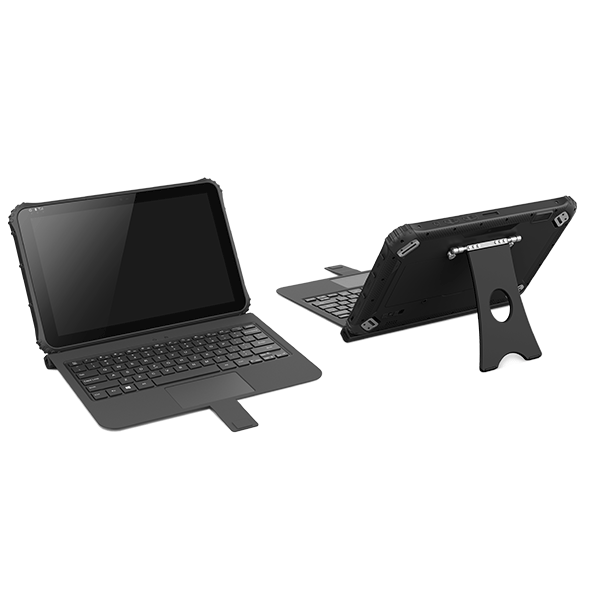

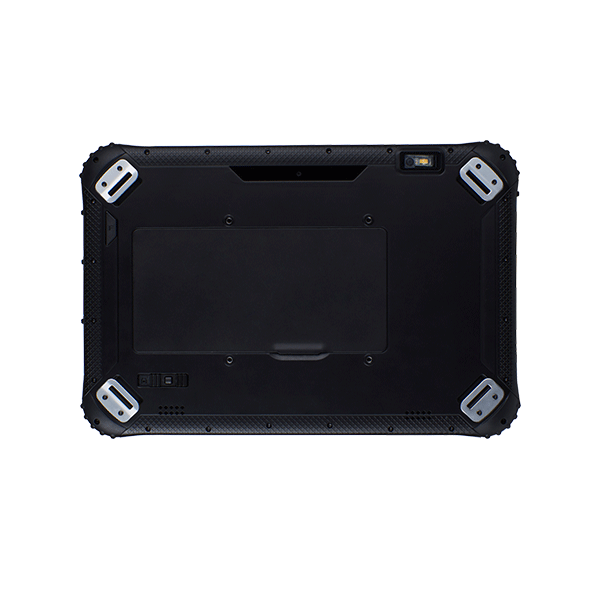

NEW LAUNCH 12.2'' Android: EM-Q22M 2 in 1 Rugged Tablet/Notebook


  • Support for Andriod 10 system

  • Optional 3G/4G all network communication, WiFi, Bluetooth and other communication modes

  • 12600mAh battery, 6-8 hours of machine endurance

  • IP65 high protection level, in accordance with MIL-STD-810G

  • Support GPS, Glonass, more accurate positioning

  • Support 1920x1200 high score screen, optional with Corning gorilla TP

  • Support 1D/2D, NFC and other functional modules for free selection

NEW LAUNCH 12.2'' Android: EM-Q22M 2 in 1 Rugged Tablet/Notebook
NEW LAUNCH 12.2'' Android: EM-Q22M 2 in 1 Rugged Tablet/Notebook
NEW LAUNCH 12.2'' Android: EM-Q22M 2 in 1 Rugged Tablet/Notebook
NEW LAUNCH 12.2'' Android: EM-Q22M 2 in 1 Rugged Tablet/Notebook
NEW LAUNCH 12.2'' Android: EM-Q22M 2 in 1 Rugged Tablet/Notebook
Android Android
IP65 IP65
GPS GPS
High-capacity High-capacity
Bluetooth Bluetooth
1D 1D
2D 2D
WiFi WiFi
NFC NFC
4G
4G

Features of 8'' Android Tablet EM-Q22M Rugged PC

  • Support Andriod10 system, use MAG mature module performance more stable;

  • Support USB2.0 & USB3.0 connector;

  • Support NXP NFC;

  • Support Ublox GPS high-precision positioning; bright screen; dual-band WIFI; wide temperature battery;

  • Support 1D/2D barcode scanner;

  • Support standard DB9 connector;

  • Rugged IP65 protection level;

  • Support 12600mAh loadable batteries;

  • Support High strengthened glass touch panel;

  • Support gigabit network interface;

  • Support wrist strap and leather keyboard;

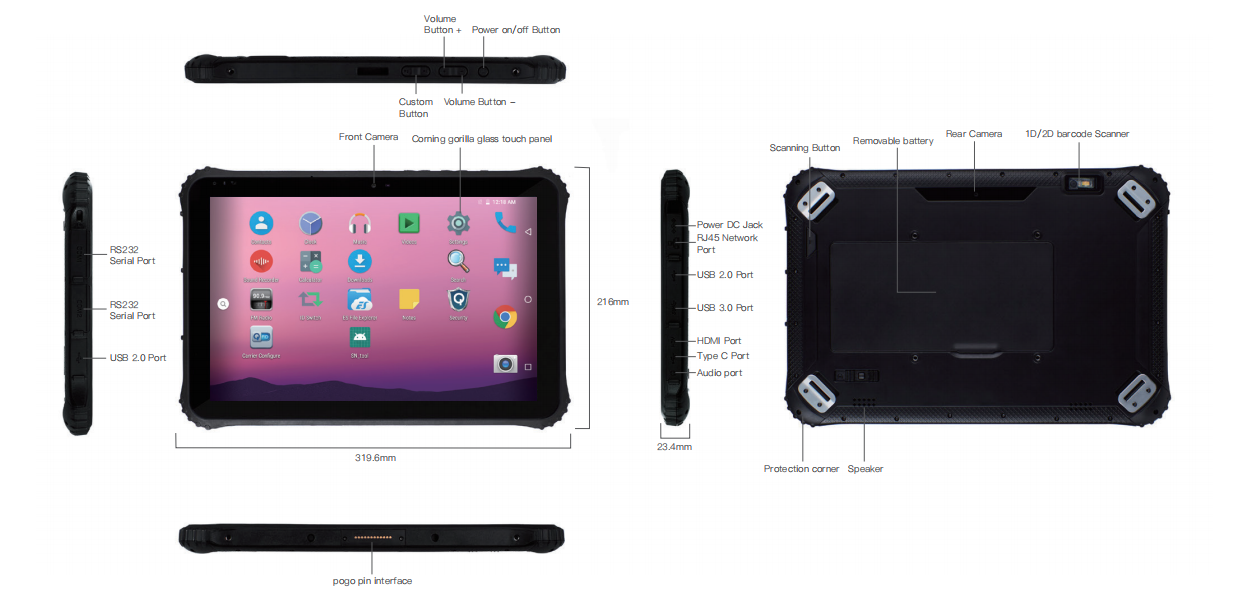

Six Views of 8'' Android Tablet EM-Q22M Rugged PC




Specifications Of 12'' Android Tablet EM-Q22M Rugged PC

TypeDetailsStandard ConfigurationOptional Configuration
Product FormType12.2-inch Rugged Tablet(optional keyboard)NA
Dimension319.6*216*24.3 mmNA
WeightMain Unit: 1500gNA
Device ColorBlack+silver(Back panel-silver, Front panel-black)NA
LCDScreen Size12.2 inch   16:10NA
Resolution1920*1200 IPS screenNA
Brightness280Nit650Nit
TPTouch Panel10 point capacitive,G+G, Corning gorilla glass, Rigidity: 7H above, anti-scratch, COF, update to support GP930 stylus firmwareNA
CameraFrontFront 5.0MPNA
Rearrear 13.0MPNA
SpeakerBuilt-inbuilt-in 8Ω/1W water-proof speaker x2NA
MicBuilt-insensivity:-42db, Output resistance:2.2kΩNA
BatteryTypeRemovable polymer lithium batteryNA
Capacity3.7V/12600mAhNA
Endurance8Hrs (default 50%volumn,default 200lumens brightness,play 1080P HD video)NA
System Hardware Configuration
TypeDetailsDescriptionsOptional Configuration
CPUTypeSLM758NE-6469, MAG module (including 4G+64G EMCP, MSM8953)NA
Speed2.0GHZNA
GPUTypeAdreno506; 650MHzNA
RAMDDR3L4GBNA
ROMEmmc64GBNA
G_sensorBuilt-ingravity sensorNA
L_sensorBuilt-inLight sensorNA
Gyro Sensor *1Built-inGyro SensorNA
Internet Connections
TypeDetailsDescriptionsOptional Configuration
WIFIWIFI ModuleWIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G  dual-band WIFI (Qualcomm WCN 3680+PA)NA
BluetoothBuilt-inBT4.2 (BLE) class1 transmission distance:10mNA
3GBuilt-inWCDMA: B1/B5/B8
GMS: B5/3/8

NA
4GBuilt-inEU EDITION TDD-LTE: B38/40/41
FDD-LTE: B1/3/5/7/8/20
NA
GPSBuilt-inSleeve support: GPS+Glonass; capture sensitivity: -140 dBm; cold start time:<50 seconds, hot start time: <5 seconds, GPS frequency: 1575.42MHz, Glonass frequency: 1602MHZ; support BeidouNA
NFCBuilt-inST21NFCDDBGARA7 (Qualcomm/RK series)
Support 14443A protocol under ISO/IEC, reading distance: 3-5cm
NA
Data Collection
TypeDetailsDescriptionsOptional Configuration
1D barcode scannerOptionalNAMOTO  SE655E100R
Optical Position: 5mil
Scan speed: 50/s
Symbol system:UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93  ,Code 11
2D barcode scannerOptionalNAEM80 hardware decoder
Optical Resolution:5mil
Scan speed:50/s
Symbol system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
 Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
Connectors
TypeDetailsDescriptionsOptional Configuration
TF slotExtensive External Memorysupport TF   x1    max:128GNA
SIM card slot3G/4G communicationSIM card   x1NA
USB connectorExtensive external memory and data transferUSB 2.0*2 (4pin)NA
USB 3.0*1 (9pin)NA
Type CType CType C x1(data&charing)NA
Earphone JackAudio Output∮3.5mm standard earphone jack  x1NA
DC JackPowerDC 5V 4A ∮3.5mm  power adaptor  x1NA
HDMIVideo OutputHDMI   x1NA
Serial port connectorSerial PortDB9 (RS232) ×1, DB9 (RS485) ×1DB9 (RS232) ×1, DB9 (RS232) ×1
RJ45 connectorEthernet port10/100Mbps ×1NA
Extensive connectorpogo Pin12pin  Pogo Pin   x1NA
Button Key
TypeDetailsDescriptionsOptional Configuration
powerOn/Offx1NA
volumevolume up/volume downvolume+- x2NA
F KEYScannerCode scanner(back of unit) x1NA
programProgram KeyP1HOME,P2 BACKNA
Standard Accessories
TypeDetailsDescriptionsOptional Configuration
USB CableUSB CableUSB to micro 5P L=1.2M  4core aluminum foil shield cableNA
Carry handleCarry handle
Carry handleNA
Power AdaptorStandardAC100V ~ 240V、50Hz/60Hz output DC 5V/4A    USA standard   CE approvedUSA standard
EU Standard
Software Configuration
TypeDetailsDescriptionsOptional Configuration
Operation SystemOS versionAndriod10NA
Product Certificate
TypeDetailsDescriptionsOptional Configuration
Certificate SystemIP65IP65 Report: Water resistance: IP-X5,Dust resistance: IP-6X
a.Inner Nozzle diameter:6.3mm;   b. water speed:12.5±0.625L/min;
c. Water Pressure: adjust according to water volume;
d.Central part of water volume: diameter of 40mm, distance from nozzle: 2.5M
e.Spray time in surface of panel: about 1min;f.test time: at least 3min;
g.distance between nozzle and panel surface:2.5~3m。
After the test, there is no water leakage in the sample.
NA
CCE NBY
FCCY
RoHSY
MIL-STD-810GY
BatteryUN38.3,MSDS,IEC62133
Reliability
TypeDetailsDescriptionsOptional Configuration
Product ReliabilityDrop HeightMIL-STD-810G 1.22m drop
Operate Temperature‘-20 °C to 60 °C
Store Temperature’-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing



Accessories of Rugged Tablet PC EM-Q22M

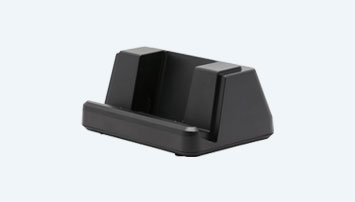

Docking charger
Docking charger

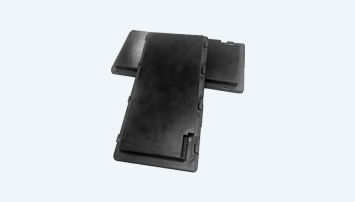

Removable battery
Removable battery

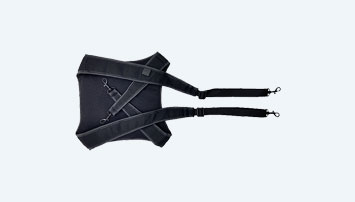

Back-strap
Back-strap
Hand-strap
Hand-strap

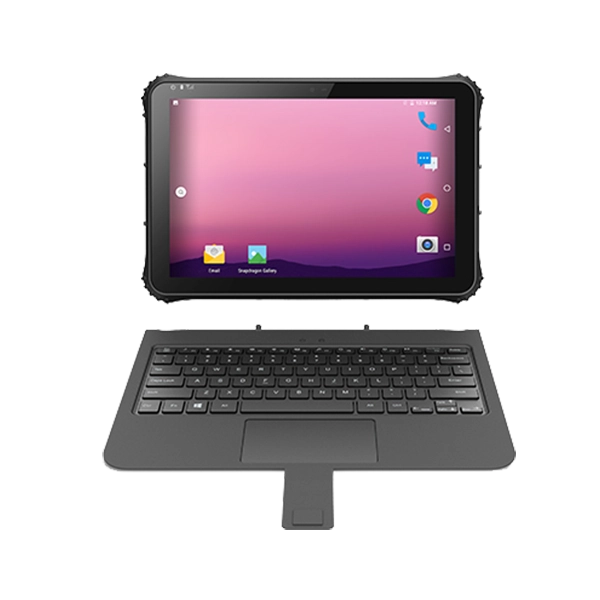

Removable keyboard
Removable keyboard
Vehicle Mount
Vehicle Mount

Application Range of Rugged Tablet PC EM-Q22M


Warehouse Logistics Industry
Warehouse Logistics Industry
Surveying Mapping Industry
Surveying Mapping Industry
Manufacturing Industry
Manufacturing Industry
Energy Industry
Energy Industry
Public Industry
Public Industry
Traffic Industry
Traffic Industry
