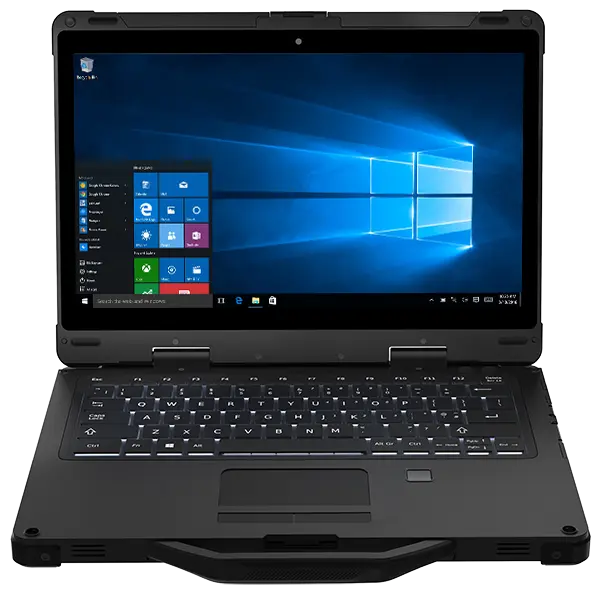

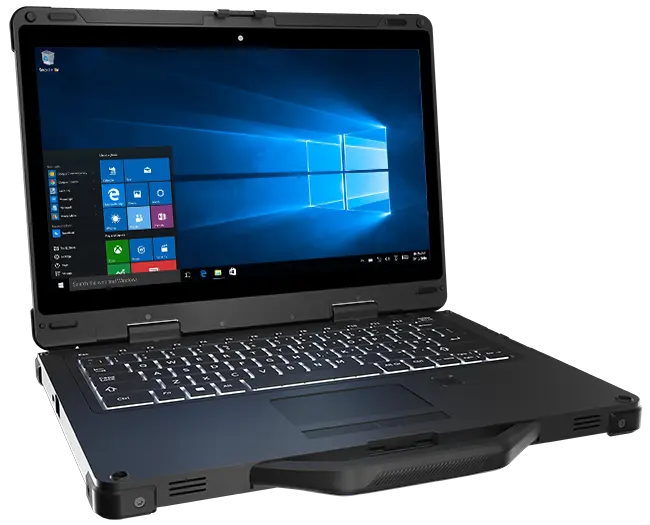

NEW LAUNCH 13.3'' Intel: EM-X33 Fully Rugged Laptop

  • Intel 11th CPU with built-in GPU

  • It supports Windows 10 OS

  • Rich interfaces and support Thunderbolt 4

  • Support the latest WiFi 6, Bluetooth 5.1

  • IP65 protection grade of three proofs

  • Double battery design, hot-swap battery

  • Support high-strength glass touch screen and glove touch

X33
X33

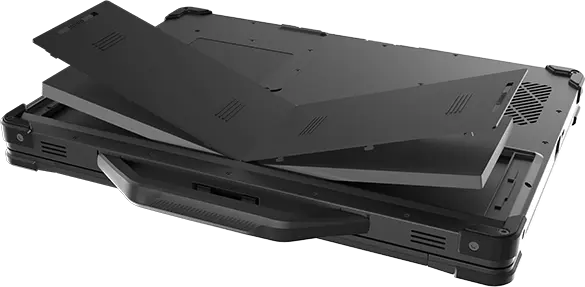

X33 0003 X33 Huandianchi3

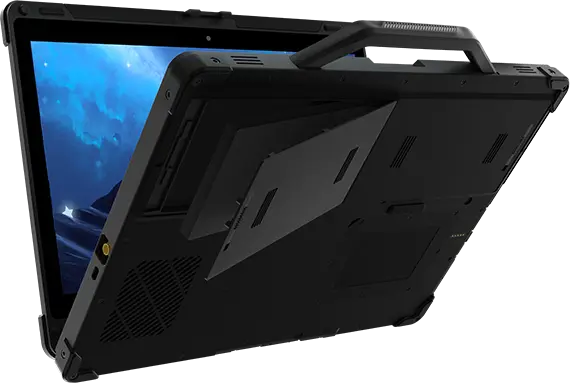

X33 0002 X33
Windows Windows
IP65 IP65
GPS GPS
Camera Camera
Dual-battery Dual-battery
Fingerprint Fingerprint
3G/4G 3G/4G
WiFi WiFi
Bluetooth Bluetooth
Thunderblot 4 Thunderblot 4

Features of 13.3'' Intel: EM-X33 Rugged Notebook


  • Support for Win 10 system

  • Intel® i5-1135G7, greatly improved performance

  • The fuselage is equipped with a dual-battery design, and the endurance is increased to 10 hours

  • IP65 high protection level, in accordance with MIL-STD-810G

  • Support WiFi 6, BT 5.1

  • Support 1920x1080 FHD, optional with Corning gorilla screen and sunshine visual screen

  • Support rich expansion slot and fingerprint design can be applied to various complex industry needs and expand demand

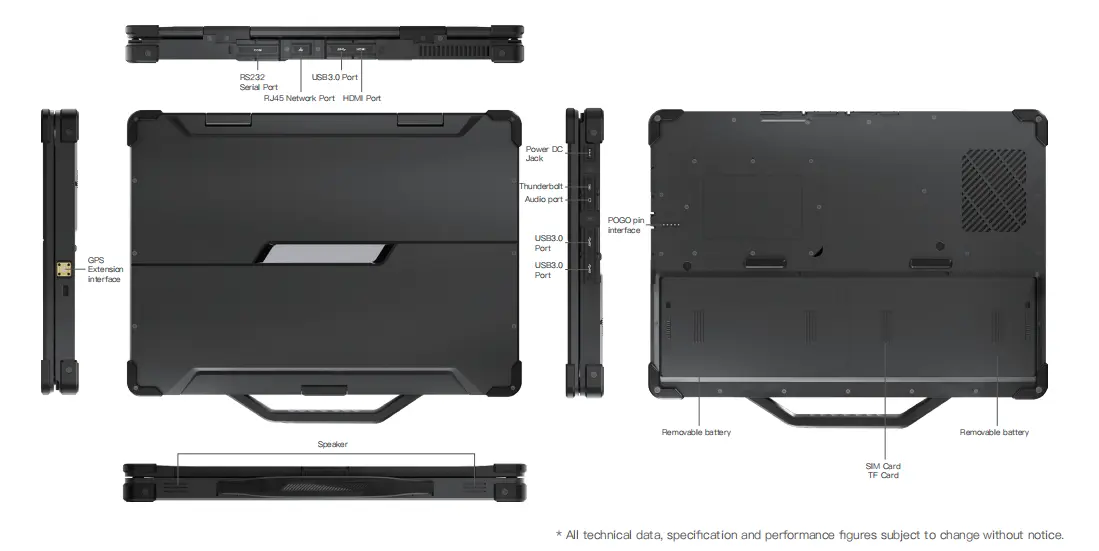

Six Views of 13.3'' Intel: EM-X33 Rugged Notebook


EM-X33



Specifications of13.3'' Intel: EM-X33 Rugged Notebook

TypeDetailsStandard ConfigurationOptional
Product FormType13.3-inch Full-rugged NetbookNA
Dimension332*233*26 mm  (Host)NA
Weight2.1KGNA
Device ColorBlackNA
LCDScreen size13.3“   16:9NA
Resolution1920(H)×1080(V) FHDNA
Brightness400cd/㎡NA
TPTouch panelNA10 point touch capacitive,G+G,Rigidity: 7H up, Anti-scratch,Support glove touch
CameraFrontFront 2.0MP  ,Anti camera LEDNA
SpeakerBuilt-inBuilt-in 8Ω/1W  x2NA
MicBuilt-in×2  Internal  Digit MICNA
Battery(Pluggable)Type×2  External polymer lithium-ion batteryNA
Capacitive5600mAh/11.1V  (2800mAh/11.1V  x2 )NA
Endurance10hrs(Default 50% volume,default 200 nit,Play 720P HD video)NA
System Hardware Configuration
TypeDetailsDecriptionOptional
CPUTypei5-1135G7  (11th Generation  Intel Tiger Lake UP3 -28W)i7-1165G7 (11th Generation  Intel Tiger Lake UP3 -28W )
SpeedProcessor 4 core eight threads, processor base frequency 2.40 GHz, maximum frequency 4.20 GHzProcessor base frequency 2.80 GHz,maximum frequency 4.7 GHz
GPUTypeGen 12 Intel® Iris® Xe GraphicsNA
RAMDDR4L8GB16GB
SSDNGFF SSD256GB512GB
TPMBuilt-inBuilt-in TPM2.0   SLB9665TNA
Hall switchhallhallNA
Keyboardkeyboard78 key, with LED backlightNA
Network Connections
TypeDetailsDecriptionOptional
WIFIWIFI ModleIntel AX200: support wi-fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,axNA
BluetoothBuilt-inBluetooth V5.1NA
4GBuilt-inNAM. 2 interface (EM)_ YY4GM2_ PCB_ V11R1 PCBA(EC25-EC))
LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8
China (Unicom Telecom, mobile support is not good, only B8 support, no TDD band) Europe, Middle East, Africa, Taiwan, Japan
GPSBuilt-inNAU-Blox neo-7 support satellite: GPS; acquisition sensitivity: - 160 DBM; cold start time: < 50 seconds, hot start time: < 28 seconds, frequency: 0.25 Hz 10 MHz (configurable)
Data Collection
TypeDetailsDecriptionOptional
FingerprintBuilt-in×1 SPI fingerprint(Power on login)NA

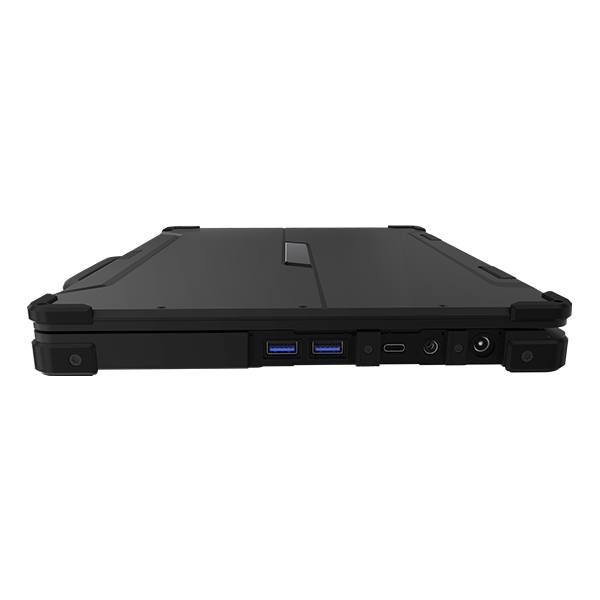

Interface
TypeDetailsDecriptionOptional
USB3.0USB3.0USB3.0*3NA
Type CType Cx1 Thunderbolt 4NA
Earphone JackEarphone Jack∮3.5mm Standard earphone jack  x1 hostNA
HDMIHDMIHDMI  x1 (type-A)NA
SD CardSD CardSD Card  x1Inside the battery compartment
SIM CardSIM CardSIM Card   x1
DCDC JackDC 19V 3.42A power jack  x1NA
Serial portSerial portDB9 (RS232) ×1NA
RJ45 portInternet portx1(10/100/1000M Self-adaption)NA
Burglar lock hole(Right)KensingtonKensington x1NA
Heat dissipation air outlet(Right)Heat dissipation air outlet(Right)Heat dissipation air outlet(Right) x1NA
Left  extension dockLeft extension dockNA×1 External GPS antenna
POGO PINPOGO PINNAPogo 5pin (USB interface definition)
Button
TypeDetailsDescriptionOptional
powerPower Buttonx1NA
P1P1Used to lock or open screen  ×1NA
Indicator light
TypeDetailsDescriptionOptional
powerBuilt-in×1 Light color is blue when booting (Blue will not look too bright), Light off when machine closed.NA
battery 1Built-in×1( red and green double - color ) Light color is red when charging, then becomes green when full charge,  red light flash when low - power, it is not bright when discharge.NA
battery 2Built-in×1( red and green double - color ) Light color is red when charging, then becomes green when full charge,  red light flash when low - power, it is not bright when discharge.NA
Caps lockBuilt-in×1NA
Standard Accessories
TypeDetailsDecriptionOptional
Power AdaptorStandard100~240V Input 19V3.42A/65W output      USA standard  CE approvalUSA standard
EU standard
Software Configuration
TypeDetailsDecriptionOptional
OSOS versionWindows 10 home 64bit OSwindows 10 IOT 64bit
Windows10 Pro 64bit
Windows 10  enterprise 64bit

Product Certificate
TypeDetailsDecriptionOptional
Certificate SystemIP65IP65 Report: Water Resistance: IP-X5,Dust Resistance: IP-6X
a.Inner Nozzle Diameter:6.3mm;   b. Water Speed:12.5±0.625L/min;
c. Water Pressure: Adjust according to water flow;
d.Central part of water flow: A round with a diameter of about 40mm at a distance from the nozzle 2.5m.
e.Spray time in surface of panels: About 1 min/Square meter;f.Test time: at least 3min;
g.Distance between nozzle and panel surface:2.5~3m。
After the test,, there is no water leakage in the sample.
NA
CertificateCE,RoHS,CCC,MIL-STD-810G,FCC
Reliability
TypeDetailsDecriptionOptional
Product ReliabilityDrop HeightMIL-STD-810G 1.22m drop
Operate Temperature‘-20 °C to 60 °C
Store Temperature’-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing



Accessories of 13.3'' Intel: EM-X33 Rugged Notebook

Various modules and accessories can be selected to meet customers' application in various industries.


Application Range of 13.3'' Intel: EM-X33 Rugged Notebook

Various modules and accessories can be selected to meet customers' applications in various industries.


Surveying & Mapping Industry
Surveying & Mapping Industry

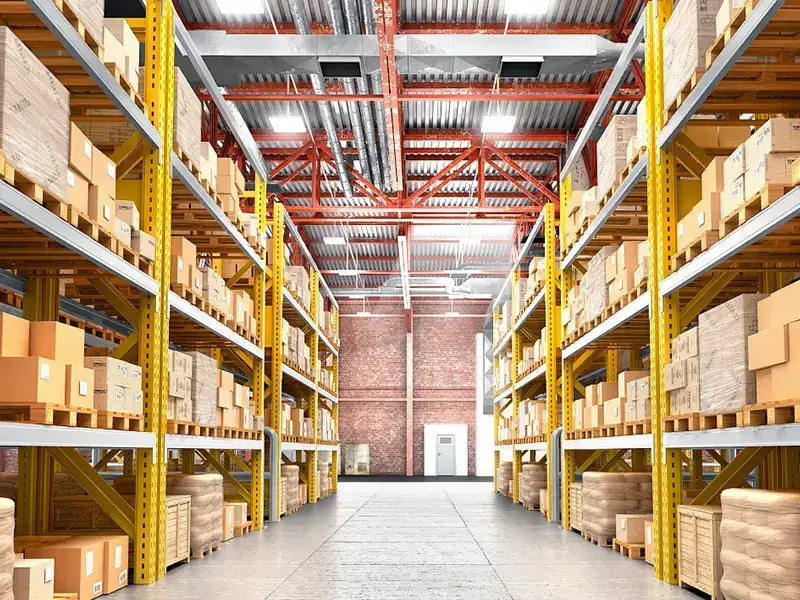

Manufacturing Industry
Manufacturing Industry
Energy Industry
Energy Industry
Public Industry
Public Industry
Traffic Industry
Traffic Industry
