Rockchip RK3568 Windows Fanless Embedded BOX PC B10R

● The latest RK3568 computing platform, Android 12 OS;

● With WIFI 5 high-speed wireless communication module, BT5.0, can expand 4G communication;

● Supports 12-24V wide voltage input, 24/7 all day operation;

● Up to 10 interfaces, including USB3.0/RJ45/DB9/HDMI;

● Fanless design, stable operation from -20°C to 60°C;

● Supports wall-mounted, embedded, or desktop installation;

● Aluminum alloy material and sleek black body design.

Embedded Box PC
Embedded Box PC
Embedded Box PC
Embedded Box PC

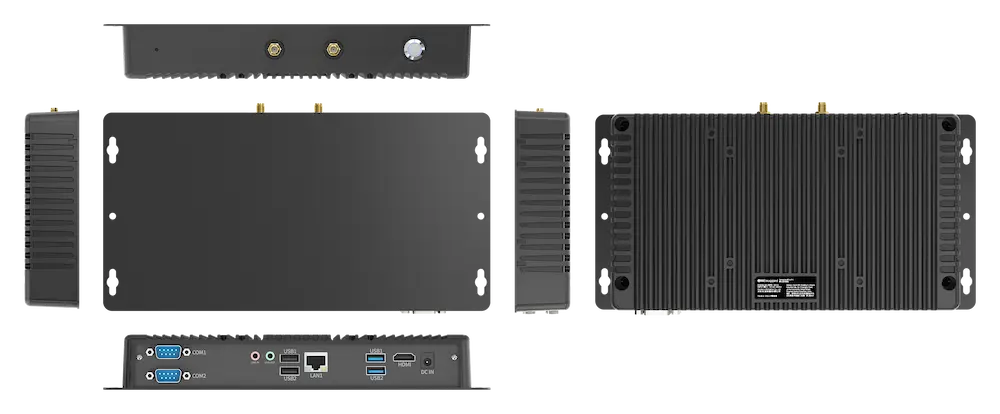

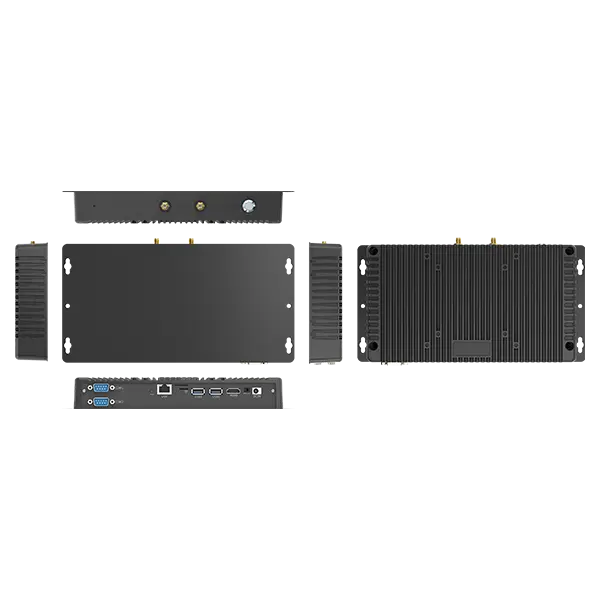

Six Views of Rockchip RK3568 Fanless Embedded Box PC B10R


Embedded Box PC


Features of Rockchip RK3568 Fanless Embedded Box PC B10R

● The latest RK3568 computing platform, Android 12 OS;

● With WIFI 5 high-speed wireless communication module, BT5.0, can expand 4G communication;

● Supports 12-24V wide voltage input, 24/7 all day operation;

● Up to 10 interfaces, including USB3.0/RJ45/DB9/HDMI;

● Fanless design, stable operation from -20°C to 60°C;

● Supports wall-mounted, embedded, or desktop installation;

● Aluminum alloy material and sleek black body design.


Specification of Rockchip RK3568 Fanless Embedded PC B10R


B10R
CPURK3568, 2.0GHz
MemoryRAM 4GB   onboard        ROM  64GB
OS supportAndroid 12
System Parameter
CPURK3568 Quad-core Cortex up to 2.0GHz
ChipsetMali-G52-2EE
RAM4GB
Storage64GB

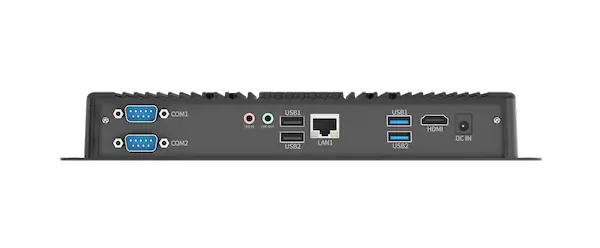

I/O

SIM*1 TF*1

USB3.0*1 + USB3.0*1 OTG + USB2.0*2

DC IN 12-24V *1

DB9  RS232 *2

∮3.5mm Standard earjack*1

RJ45 *1(10/100/1000M adaptive)

HDMI *1

M.2 *1

InternetExpandable: 4G
OSAndroid 12
Power
DCAC100V ~ 240V, 50Hz/60Hz, DC 12V/4A
Product Form
Dimension264x 135.2 x 37.2 mm
Device Colorblack
Weight1 Kg
Reliability
Operate Temperature-20℃ to 60℃
Store Temperature-30℃ to 70℃
HumidityHumidity: 95% Non-Condensing



Product specifications, pictures, and other information are for reference only.  The appearance is subject to the material object. This instruction is subject to change without notice.


Advantages of Rockchip RK3568 Fanless Embedded BOX PC B10R

Suitable for continuous use

The box PC 10R combines scalable platforms with broad levels of integration and power-efficient processing capabilities particularly suited to multimedia applications. It is equipped with an advanced implementation of the quad ARM Cortex-A55 core, which operates at speeds up to 2.0 GHz.


Rich Industrial Connectivity

The box PC 10R offers a great number of interface options that allows it to be used in any industrial system. It is the perfect combination of the latest high-speed interfaces like USB3.0, HDMI or Gigabit Ethernet and more traditional industry standard ones like RS-232 and RS-485.


Designed for industrial demands

The box PC 10R is designed as a durable solution for industrial environments. Its fanless body makes dust accumulation avoidable. Also, it comes with an extended operating temperature range from -20°C to 60°C* to eliminate the risk of unwanted disconnections.


Integrate WiFi or Cellular through Mini PCIe

The Mini-PCIe slot of box PC 10R offers extreme flexibility to add whichever wireless format is needed.


Customized module

Reserving space inside the box PC 10R caters to the various customization demands. Stably fixed by four 63x64 mm positioning holes, the customized module connects to the mainboard via a serial port or USB interface.


Compact for more computing applications

Due to its compact structure, The box PC 10R is easily integrated into the existing industrial automation environment due to its compact structure, The box PC 10J is easily integrated into existing industrial automation environments. It offers multiple mounting options for different settings. While it can simply be used as a desktop computer or mounted on the wall via the VESA holes.
