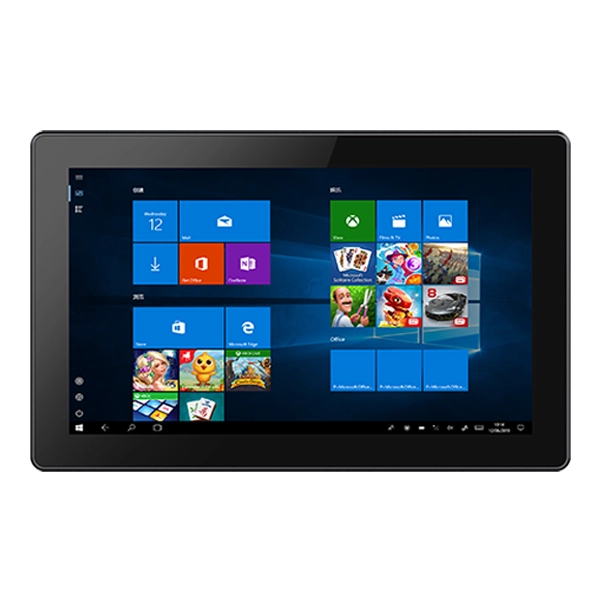

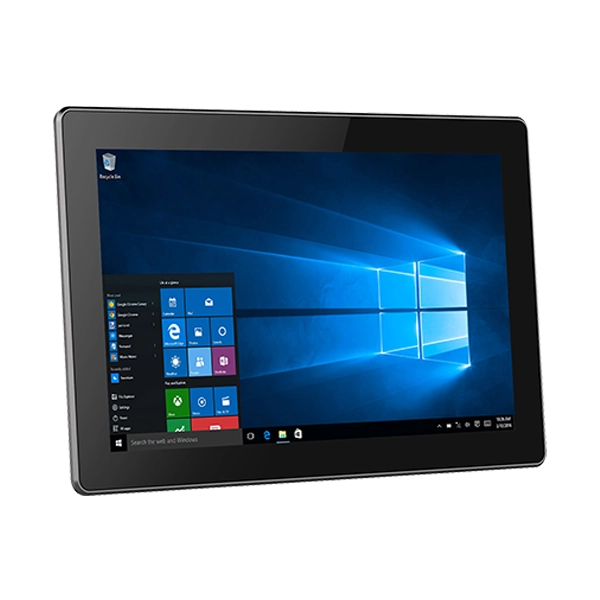

Windows Industrial Panel PC EM-PPC15S PRO

Windows Industrial Panel PC EM-PPC15S PRO will be beneficial for your work life.

Windows Industrial Panel PC EM-PPC15S PRO
Windows Industrial Panel PC EM-PPC15S PRO
Windows Industrial Panel PC EM-PPC15S PRO
Windows Industrial Panel PC EM-PPC15S PRO
Android Android
WiFi WiFi
RFID RFID
1D 1D
2D 2D
Bluetooth Bluetooth
ID-card ID-card
Windows Windows
GPS GPS
3G/4G 3G/4G
NFC NFC

As one of the most famous industrial panel PC suppliers in China, Emdoor is dedicated to providing you the high quality Windows industrial panels.


Feature of Windows Industrial Panel PC EM-PPC15S PRO


  • Support Intel® Celeron® i3/i5

  • Up to DDR4 16GB RAM

  • Fanless with low consumption

  • Wide Temperature Operating: -20℃ ~ 60℃

  • IP65 of the front panel

  • 9~36V Wide Voltage Input

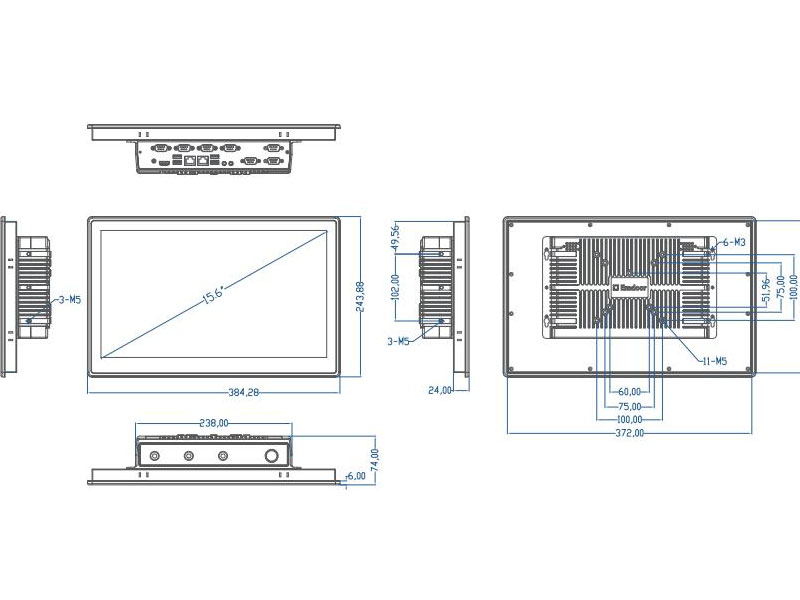

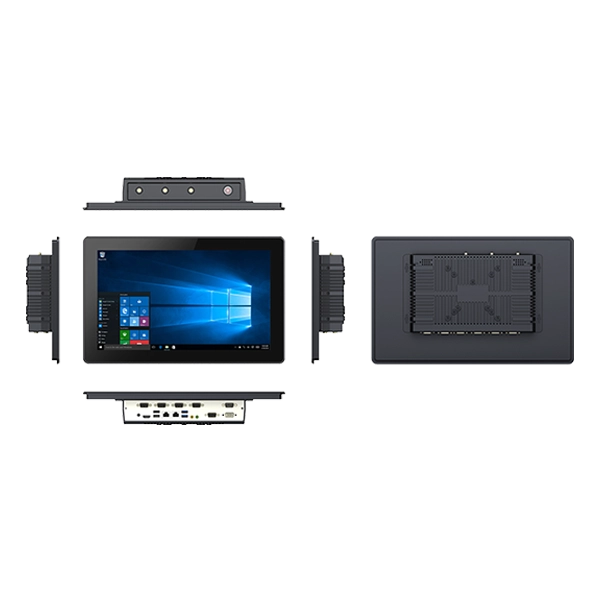

Six Views of Windows Industrial Panel PC EM-PPC15S PRO

Windows Industrial Panel PC EM-PPC15S PRO

Ordering Information of Windows Industrial Panel PC EM-PPC15S PRO


Model No: EM-PPC15S PRO Specification
TypeDetailsStandard ConfigurationOptional configuration
Product FormTypePPCNA
Dimension384.3 x 243.9 x 74 mmNA
WeightDevice unit: 3.1KgNA
Device ColorBlack(Front and Rear Panel: Black,Decorate Board:Black)Silver+Silver(front and rear Panel: Silver,Decorate board:Silver)
LCDScreen Size15.6inch   16:9NA
Resolution1920x1080NA
Brightness300 cd/m2
TPTouch PanelCapacitive touch
SpeakerBuilt-in2 x 8Ω 2W Power amplifier output(Optional)NA
System Hardware Configuration
TypeDetailsDescriptionsOptional configuration
CPUTypeIntel® Celeron® 3855U 1.6GHz/3865U 1.8GHzIntel® i3 6100U 2.3GHz/7100U 2.4GHzIntel®          i5 6200U 2.3GHz/7200U 2.5GHz
Speed1.6GHz/ 1.8GHzNA
GPUTypeIntel® HD GraphicsNA
RAMDDR44GB16GB /8GB
EMMC/SSDEMMC/SSD64GB128G/256G/64G
Interface Configuration
TypeDetailsDescriptionsOptional configuration
type A usbUSBUSB3.0*4NA
DC JackPower9-36V DC INNA
Earphone JackAudio Output∮3.5mm Standard Earphone Jack  x1NA
Extensive SlotMiniPCIE1*MiniPCIE X1  3G 4GWIFI BT
DB9 PORTSerial port*4 RS2322X /RS422/RS485
DisplayDisplay
HDMI
VGA
RJ45 PORTInternet port2 x GbE RJ45 Intel i211NA
TypeDetailsDescriptionsOptional configuration
Power AdaptorStandard9-36V DC INNA
NA
Software Configuration
TypeDetailsDescriptionsOptional configuration
Operation SystemOS versionWindows® 7,Windows® 10,LinuxNA
NA
NA
Product Certificate
TypeDetailsDescriptionsOptional configuration
Certificate SystemIP65IP65 Report: Water Resistance: IP-X5,Dust Resistance: P-6X
a. Inner Nozzle Diameter:6.3mm;   b. Water Speed: 12.5±0.625L/min;
c. Water Pressure: Adjust according to water volume;
d. Central part of water volume: A round with a diameter of about 40mm at the distance from the nozzle 2.5m.
e.Spray time in surface of panels: About 1 min/Square meter;f.Test time: at least 3min;
g.Distance between nozzle and panel surface: 2.5~3m。
After the test, there is no water leakage in a sample.
NA
CE-NBNANA
MIL-STD-810GNANA
CCCNANA
Reliability
TypeDetailsDescriptionsOptional configuration
Product ReliabilityDrop HeightNA
Operate Temperature‘-20℃ to 60℃
Store Temperature’-30 °C to 70 °C
Humidity10~90%@40℃,Non-Condensing

Product specifications, pictures and other information are for reference only.  The appearance is subject to the material object. This instruction is subject to change without notice.



Application Range of Windows Industrial Panel PC EM-PPC15S PRO

Various modules and accessories can be selected to meet customers' application in various industries.


Warehouse & Logistics Industry
Warehouse & Logistics Industry
Surveying & Mapping Industry
Surveying & Mapping Industry
Manufacturing Industry
Manufacturing Industry
Energy Industry
Energy Industry
Public Industry
Public Industry
Traffic Industry
Traffic Industry
