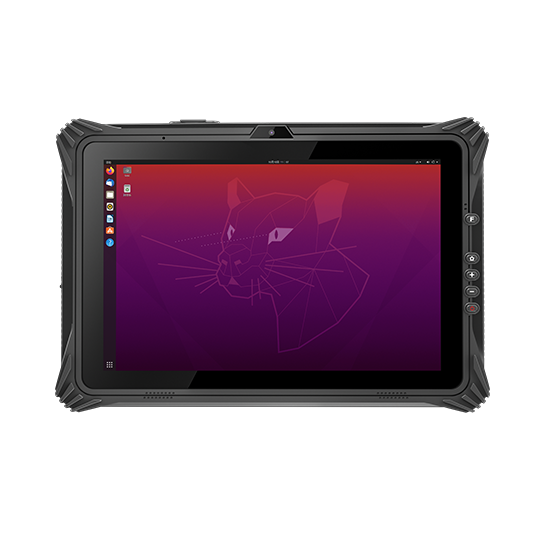

EM-I20A (Linux)
12.2 Inch Rugged Tablet PC Linux
Powered by Intel Core i5/i7 and Ubuntu OS, this device features 16GB RAM and a 12.2" FHD touch screen.
- CPU: i5-1235U
- GPU: Intel® Iris® Xe Graphics eligible
- Operating system: Ubuntu22.04.4
- Resolution: 1200*1920
- Screen size: 12.2 inches
EM-I20A (Linux)
Specifications
-
Basic parameters
Dimensions339.3*230.3*26 mmMachine weight1500gMachine colorBlack + BlackDisplay12.2 inch IPS 16:10，1920×1200, 650nitsTouch screen10 point G+G capacitive touch screenCameraFront 2.0MP + Rear 8.0MPI/O InterfaceUSB 3.0 Type-A x 1, USB Type-C x 1, SIM Card x 1, TF Card x 1 Max: 128GB HDMI 2.1a Mini x 1, 12Pin Pogo Pin x 1, Φ3.5mm standard earphone jack x 1, DC 19V 3.42A jack x 1Power adapterAC100V ~ 240V, 50Hz/60Hz, Output DC 19V/3.42A -
Wireless Communications
WIFIWiFi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax (2.4G+5.8G)BluetoothBT5.12G/3G/4G/5G4G/5G(Optional)GNSSSupport GPS, Glonass, optional Beidou -
Performance parameters
CPUi5-1235UGPUIntel® Iris® Xe Graphics eligibleOperating systemUbuntu22.04.4Memory16GBStorage capacity128GB -
Battery Performance
BatterySmall - 700mAh/7.4V/Build in Lithium-ion polymer battery, Non-removable Large - 6300mAh /7.4V/Removable Li-polyment Battery/4.5 hours -
Data collection
NFCNo1DNo2DOptionalFingerprintNo -
Product reliability
Operating temperature-20℃~60℃Storage temperature-30℃~70℃Humidity95% Non-CondensingProtection levelIP65 certified, MIL-STD-810G certifiedDrop height1.22m drop resistance
*Note: There is a lag in updating product parameters on the site. Please refer to the information provided by Emdoor Sales for all product parameters.
