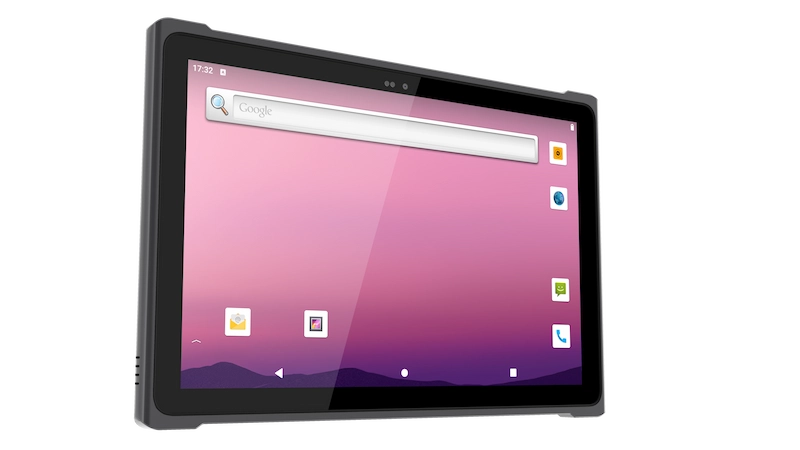

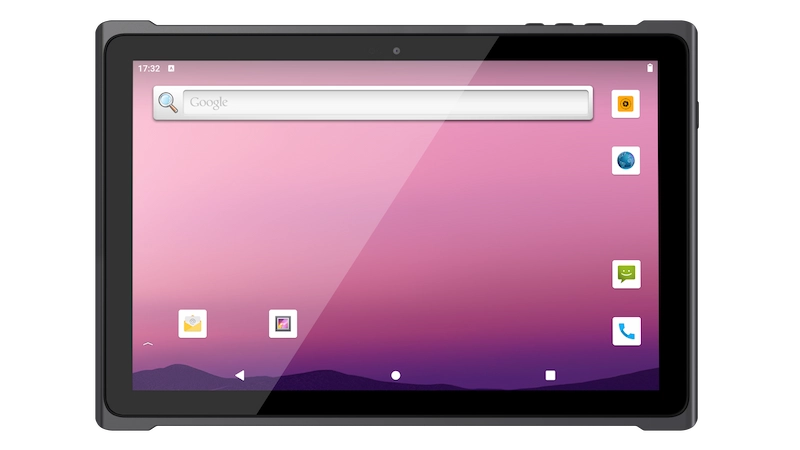

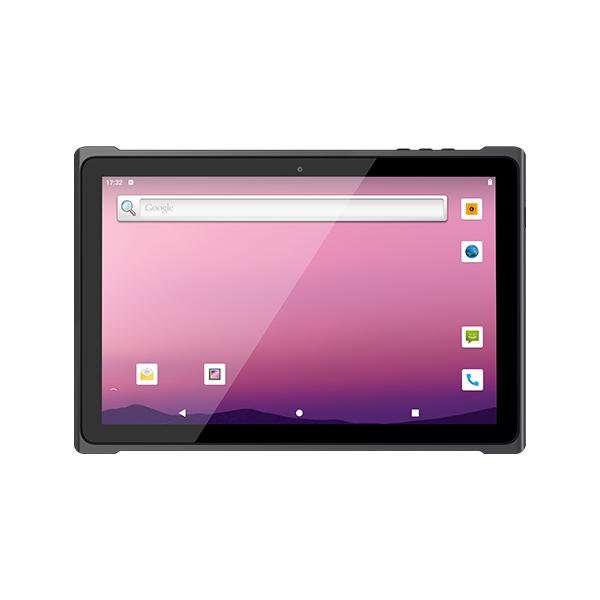

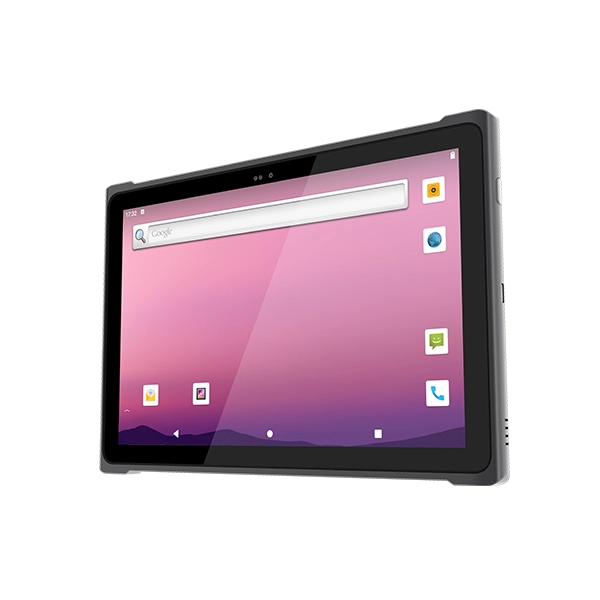

10.1 inch Android 11 Media Tek Octa-core CPU Dual 5G EM-T195

  • MediaTek Octa-core CPU with two Arm 'Big’ Cores

  • Android 11 OS and 4GB RAM+64GB storage  (optional 6GB+128GB)

  • 10.1 inch IPS screen with 10-point touch Communication

  • Dual 5G (SA/NSA) network support

  • High speed 4G LTE and dual-band Wi-Fi 5

  • Upgrade BT 5.1, fast and more stable

  • Professional 2D scanner and multi-function NFC

  • Support GPS / GLONASS / GALILEO / BDS

  • Equipped with multiple accessories, like docking charger,  hand-strap, vehicle mount

  • IP65 Waterproof and Dustproof

  • Impact resistance: Drop from a height of 1 meter

  • Built to operate in extreme temperatures

Android Android
IP65 IP65
GPS GPS
High-capacity High-capacity
NFC NFC
2D 2D
WiFi WiFi
Bluetooth Bluetooth
5G 5G
Camera Camera

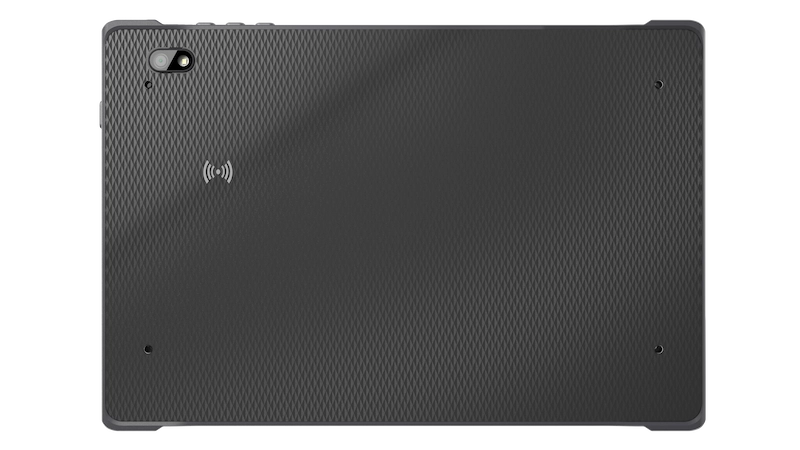

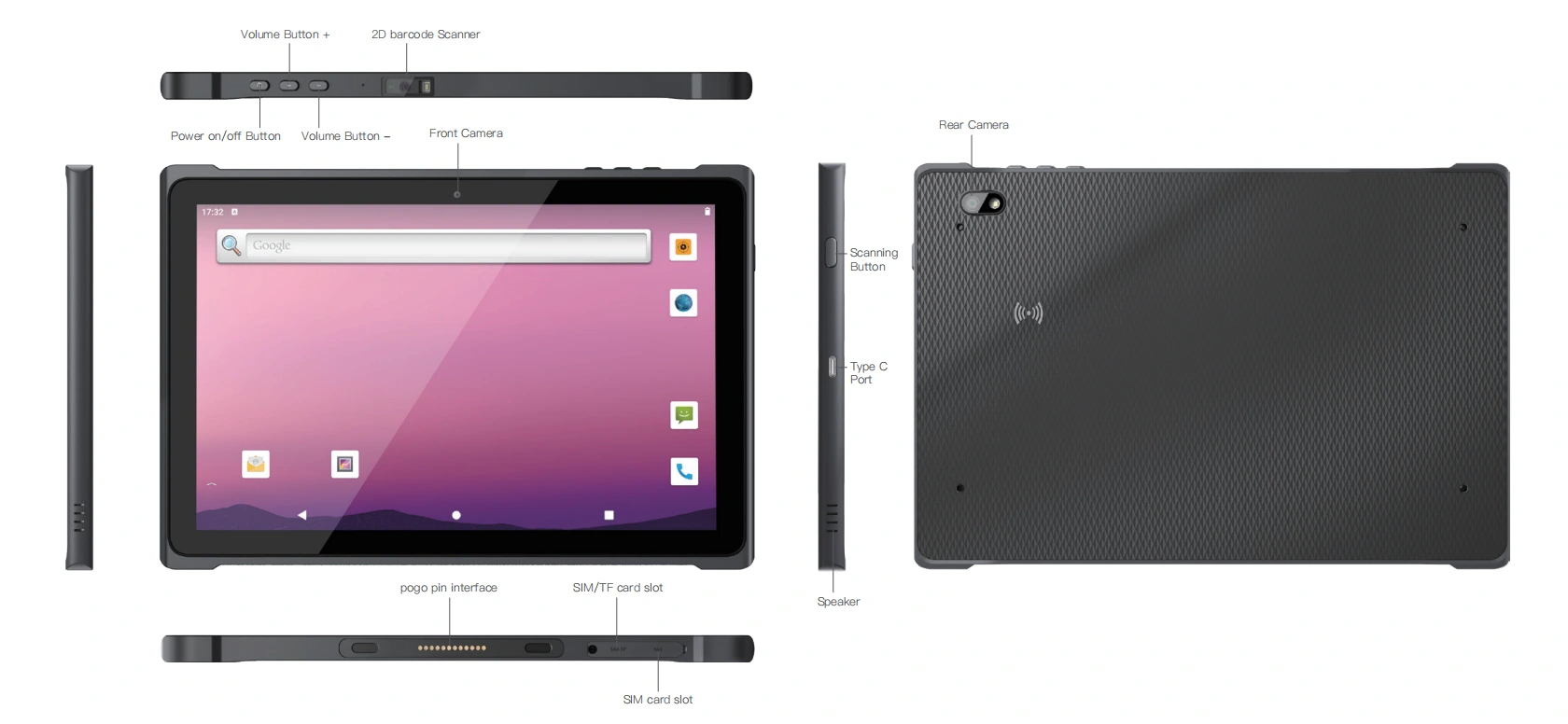

Six Views of Rugged Tablet PC EM-T195



Specifications of Rugged Tablet PC EM-T195

TypeDetailsStandard ConfigurationOptional
Product FormTypeRugged Tablet
Dimension263*177*10.5mm
Weight≈700g
LCDScreen Size10 inch  16:10
Resolution1200*19201200*1920
Brightness400cd/m2400cd/m2
TPTouch Panel10 points Capacitive, G+F+F,Support stylus10 points Capacitive,G+G
Front cameraFront camera500W(IC: GC5035),MIPI,(FF)NA
Light senseV2000NA
Charging indicatorSpecification: red and green two-color lamp
Logic: no breathing effect (red light flashes at 0% ~ 20% of low power, charging red light stays on, green stays on after 90% of power)
NA
Rear cameraRear camera1300W(IC:OV13855),MIPI,auto focus(AF)NA
Flash lampFlash lampSingle flash,1A/2WNA
LoudspeakerBuilt inEmbedded 8Ω/0.8W waterproof speaker x 2NA
MicBuilt inSensitivity:-42db, Output resistance:2.2kΩNA
BatteryTypeBuild in Lithium-ion polymer batteryNA
Capacity3.8V/9500mAhNA
Endurance10hrs(default 50% volumn,default 400nit,play 1080P HD video)NA
System Hardware Configuration
TypeDetailsDescriptionOptional
CPUTypeMTK(OCTA Core)NA
Speed2x A76 2.2GHz,256KB L2
6x A55 2.0GHz,128KB L2
NA
GPUTypeARM NATT MC2NA
RAMLPDDR4X4GB 6GB
ROMUMCP64GB128GB
M-SensorOnboardGeomagnetic sensing (Compass)NA
gyroscopeOnboardgyroscopeNA
G_sensorOnboardGravity acceleration sensorNA
Network Connections
TypeDetailsDescriptionOptional
WIFIWIFI ModuleFrequency band:WIFI 802.11(a/b/g/n/ac)
frequency:2.4G+5.0G(5.1G+5.8G) Dual band WiFi
Others: Support AP seamless roaming
NA
BluetoothBuilt inBT5.1NA
2G/3G/4GBuilt inGSM:B2、B3、B5、B8
WCDMA:B1、B2、B5、B8
TDD:B34、B38、B39、B40、B41
FDD:B1、B2、B3、B4、B5、B7、B8、B17、B20、B28a、B28b
5G:N1+N3+N5+N28+N38+N41+N77+N78+N79
NA
GPSBuilt in1. GPS/Galileo/GLONASS/BeiDou(G+G+G+B)
2. Alternative single Beidou
NA
NFCBuilt infrequency:13.56MHz
Support 14443a / 14443b / 15693 / 18092 / Mifare protocol under ISO / IEC
Card reading distance: 4cm
NA
Network Connections
TypeDetailsDescriptionsOptional
2DOptionalSerial portNewland N1   Hardware decoder
optical resolution: ≥3mil
SCAN Speed: 75 times/s
support code system :
1D:Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E,
Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code
93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11,
Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f Plessey
2D:PDF417, QR Code, Micro QR, Data Matrix
Interface Configuration
TypeDetailsDescriptionsOptional
TF SlotExtensive External Memoryx1    max:512GTwo out of three Cato (micro SIM + TF or micro SIM + nano SIM)
SIM SlotSIM Slotx2
Earphone JackAudio Output∮3.5mm Standard Earphone Jack  x1US CITA ( Note: optional.)
type CType CSupport USB2.0/OTG/PD&PE+18WUSB communication priority: 1. Type C 2. Base interface,
1. When type C is connected to OTG or PC, the base is inserted at the same time. The base has no function. Only type C has the function. Pull out the type C connecting line and automatically switch to the base
Charging priority: 1. Type C charging 2. Base charging
1. When pogo pin and typec charging coexist (whether on or off):. Typec takes priority, unplug typec and switch to pogo pin charging
2. The flat panel is connected to the base for DC charging. At this time, a USB flash disk is inserted into the readable USB flash disk on the base. Then, when a type OTG is inserted into the flat panel, the base USB flash disk will automatically break off and switch to type OTG. When the OTG is unplugged, it can switch to the base USB flash disk
Extension interfacePogo pin to base interface12pin  Pogo Pin   x1
Standard Accessories
TypeDetailsDescriptionsOptional
Type-C OTG lineType-C OTG lineType C OTG line_V1.0,AWM 2725 10/0.10*4C +LV +32/0.10 OD3.5 L=138MMNA
Type-C data lineOptionalType-C data line_ V1.10003946, the length of black wire is 1.0m, one side of CC pin is connected to VCC after adding resistance, and the other side is empty. Amendment: add tail, change differential wire to twisted pair, add shielding layer, and the internal resistance of copper core is less than 80 ΩNA
Type-C adapter
Standard
USB type-C interface, support fast charging PE +, Maximum Power 18W, maximum 9V / 2A.中规
Software Configuration
TypeDetailsDescriptionsOptional
Operation SystemOS versionAndroid 11 /GMSNA
Product Certificate
TypeDetailsDescriptionsOptional
Certificate SystemEOSVBUS 300/80us  VBAT 300v/20usNA
ESD± 10kV air discharge, ± 8Kv contact dischargeNA
authenticationCE/FCC/CCCNA
IP ratingIP65NA
Drop Height1m drop resistantNA
Operate Temperature‘-10 °C to 50 °CNA
Store Temperature’-20 °C to 60 °CNA
HumidityHumidity: 95% Non-CondensingNA
OptionalCharging baseBase interface: USB2.0 * 2, RJ45, RS232 serial port, type-C (only for power supply and charging)NA
Application scenarioField service / warehousing and logistics / production line maintenance / retail stores



Accessories of Rugged Tablet PC EM-T195

Various modules and accessories can be selected to meet customers' application in various industries.


Docking Charger
Docking Charger
Hand-strap
Hand-strap
Shoulder-strap
Shoulder-strap
Back-strap
Back-strap
Leather Cover
Leather Cover
Stylus
Stylus
Vehicle Mount
Vehicle Mount

Application Range of Rugged Tablet PC EM-T195

Various modules and accessories can be selected to meet customers' application in various industries.


Warehouse & Logistics Industry
Warehouse & Logistics Industry

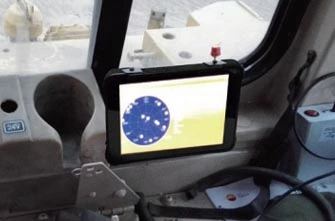

Surveying & Mapping Industry
Surveying & Mapping Industry

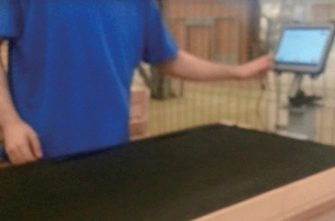

Manufacturing Industry
Manufacturing Industry
Energy Industry
Energy Industry
Public Industry
Public Industry
Traffic Industry
Traffic Industry
