12.2'' Intel: EM-I20J Industrial Tablet

  • Intel Celeron quad-core processor

  • Windows 10 OS and 8GB RAM+128GB storage

  • 12.2 inch IPS Full HD screen with 10-point capacitive touch

  • 2.4G/5.8G Dual-band WIFI ·High speed 4G LTE

  • BT 4.2 fast transmission

  • Choose 1 from 4 modules (2D scan engine, RJ45 Gigabit Ethernet,  DB9 and USB3.0 ) ·Support GPS, BDS, and GLONASS

  • Equipped with multiple accessories, like docking charger,  hand-strap, vehicle mount, car charger, carry handle Reliability

  • IP65 Waterproof and Dustproof ·Vibration & 1.22m drop-resistant ·MIL-STD-810G certified

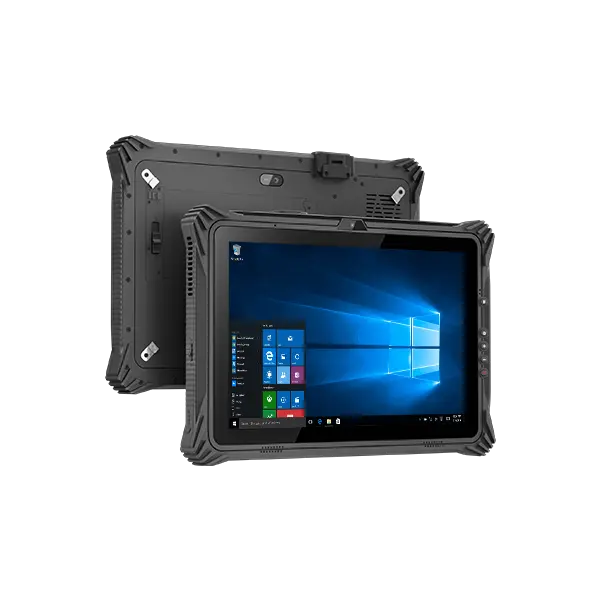

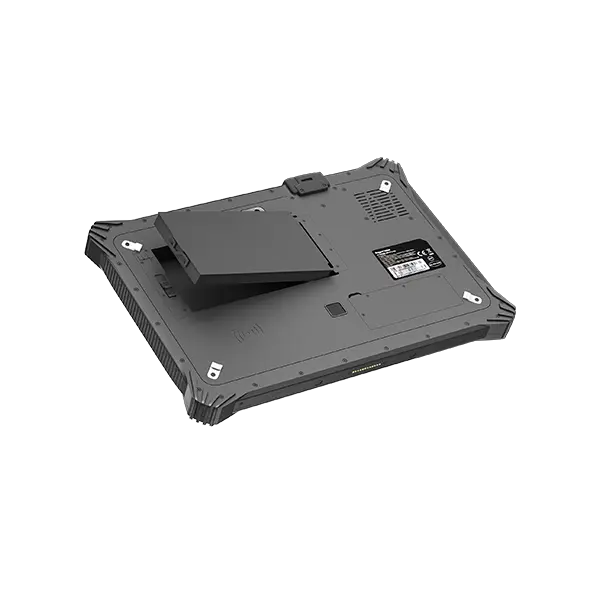

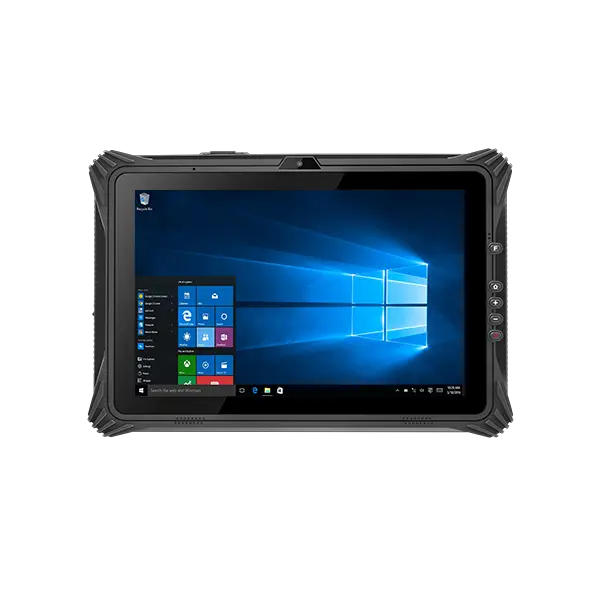

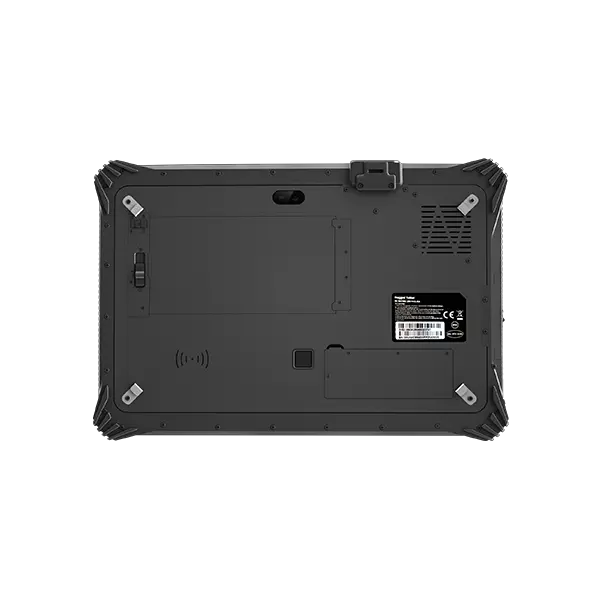

12'' Intel: EM-I20U Rugged Tablet
12'' Intel: EM-I20U Rugged Tablet
12'' Intel: EM-I20U Rugged Tablet
12'' Intel: EM-I20U Rugged Tablet
12'' Intel: EM-I20U Rugged Table
Windows Windows
IP65 IP65
GPS GPS
Dual-battery Dual-battery
Bluetooth Bluetooth
1D 1D
2D 2D
NFC NFC
4G 4G
WiFi WiFi

Features of 12.2'' Intel: EM-I20J Rugged Tablet


  • Support Windows 10;

  • Support  USB3.0 type A connector;

  • Support Battery Single Charger Docking;

  • Support GPS navigation;

  • Support 1D/2D barcode scanner;

  • Support Finger Identification;

  • Rugged IP65 protection level;

  • Support 6300mAh pluggable battery, big and small double batteries;

  • Support UART port, RJ45 port, and customized port;

  • Support Wrist Strap and back jacket;

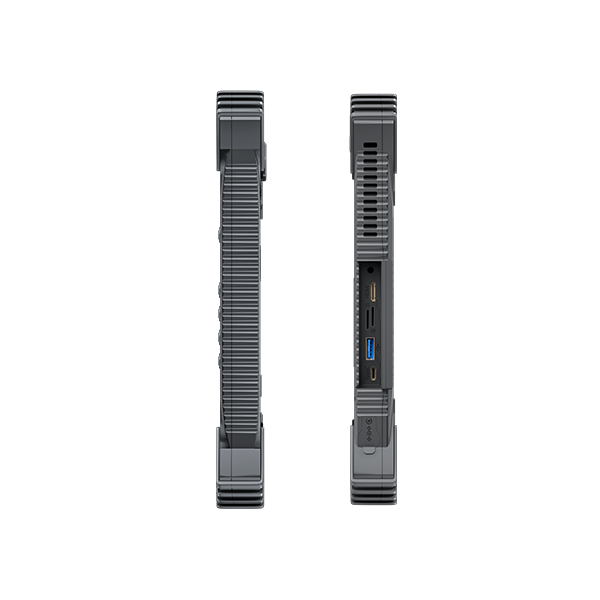

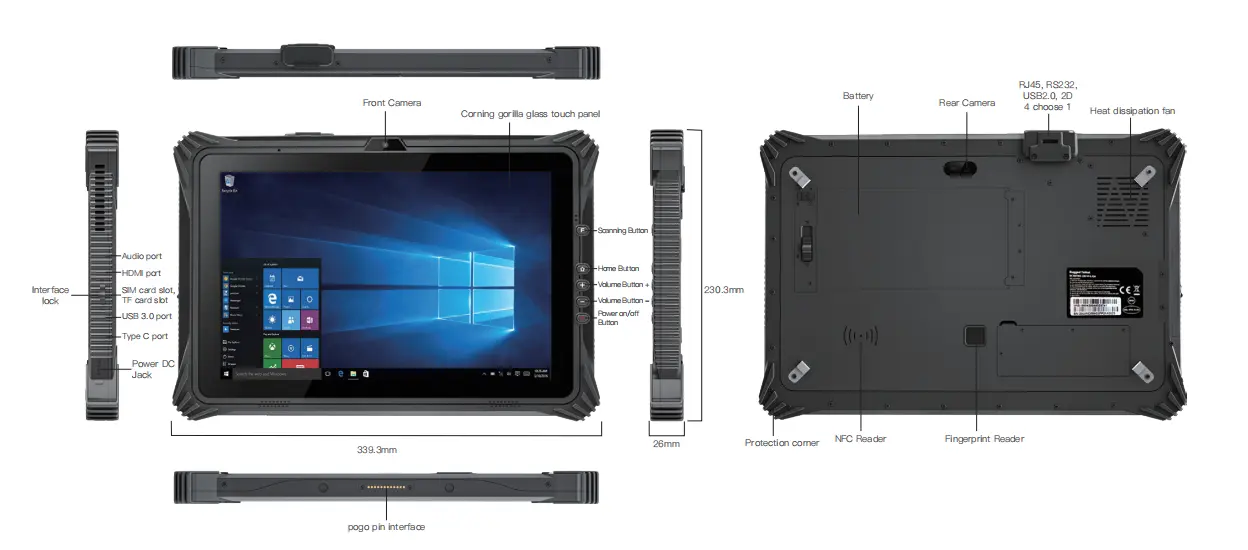

Six Views of 12.2'' Intel: EM-I20J Rugged Tablet





Specifications of 12.2'' Intel: EM-I20J Rugged Tablet


TypeDetailsStandard ConfigurationOptional
Product FormTypeRugged TabletNA
Dimension339.3*230.3*26 mmNA
WeightDevice unit: 1500gNA
Device ColorBlack(Front and Rear Panel: Black,Decorate Board:Black)NA
LCDScreen Size12.2 inch   16:10Full-fit components
Resolution1920*1200 IPS
Brightness280cd/㎡
TPTouch Panel10 points Capacitive,G+G,Rigidity: above 7H-Anti-scratchOptional SLR Sunlight visible film
CameraFrontFront:2.0MPNA
RearRear: 8.0MP    USB Camera With flash lightNA
SpeakerBuilt-inEmbedded 8Ω/0.8W waterproof speaker x 1NA
Mic
Sensitivity:-42db, Output resistance:2.2kΩNA
Small BatteryTypeBuild in Lithium-ion polymer battery,  Non-removableNA
Capacity7.4V/860mAhNA
Endurance30mins(default 50% volumn,default200nit,play 1080P HD video)NA
Bigl BatteryTypeLithium-ion polymer battery , pluggable, Hot SwapNA
Capacity6300mAh/7.4VNA
Endurance5hrs(default 50% volumn,default200nit,play 1080P HD video)NA
System Hardware Configuration
TypeDetailsDescriptionOptional
CPUTypeIntel JASPER LAKE N5105NA
Speed4M Cache, 2.9GHzNA
GPUTypeIntel® UHD Graphics 620NA
RAMDDR4L8GBNA
SSDNGFF SSD128GB   removableNA
TPMBuilt-inTPM2.0   SLB9665TNA
G_sensorBuilt-inGravity acceleration sensorNA
FingerprintBuilt-in×1 SPI Fingerprint (windows hellow boot login)NA
FanBuilt-in×1  IPX5NA
NFCBuilt-inNANXP100
Network Connections
TypeDetailsDescriptionOptional
WIFIWIFI ModuleWIFI 802.11(a/b/g/n/ac)  dual frequency 2.4G+5.8G WIFI intel 3165D2WG (3.3v)NA
BluetoothBuilt-inBT4.2 (BLE) class1  transmited distance:10mNA
4GBuilt-inMeiG 750
LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8                                    China (China Unicom Telecom, mobile support is not good, only B8 supports no TDD band) Europe, Middle East, Africa, Taiwan, Japan
NA
GPSBuilt-inU-blox  M8Q ,Support:GPS, Beidou module, glonassNA
Interface Configuration
TypeDetailsDescriptionsOptional
type A usbUSB3.0x1  USB 3.0NA
Type CType C*1 Type C (USB3.0/HDMI/Charging)NA
Earphone JackAudio Output∮3.5mm Standard Earphone Jack  x1NA
HDMI JackAudio&Video OutputHDMI 1.4a mini  x1NA
TF SlotExtensive External MemorySupport TF   x1    max:128GNA
SIM SlotSIM SlotSIM   x1NA
DC JackPowerDC 19V 3.42A ∮5.5mm  Power connector  x1NA
pogo pinpogo pinx1   12pin(USB&Docking charging)NA
Keys
TypeDetailsDescriptionsOptional configuration
F KEYScanner keyScanner key x1,No barcode then customizable ((GPIO)NA
volume+volumeVolume adjustment key(+)  x 1NA
volume-volumeVolume adjustment key(-)  x 1NA
windowswindows keyx1NA
powerpower keyx1NA
Indicator light
TypeDetailsDescriptionsOptional configuration
powerBuilt-inPower on is always blue, power off light is off ×1NA
baterryBuilt-in(Red and Green) Charging red, full of green, red light flashing on low power, not discharging ×1NA
Module extension (Note: The following modules are one of five)
TypeDetailsDescriptionsOptional configuration
Ethernet interfaceRJ45 board*1(10/100M/1000M) Ethernet interface
serial portDB9 boardNA*1 (RS232)9-line full function
USB2.0USB2.0NA*1  USB2.0 Big USB
One-dimension barcodeoptionalNAHoneywell  N6551/Optical resolution: 5mil/scan speed: 50 times /s serial port
Two-dimension barcodeoptionalNAEM80  hardcode
Optical resolution:5mil
scan speed:50 times /s
Code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
 Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
Standard Accessories
TypeDetailsDescriptionsOptional
Power AdaptorStandardAC100V ~ 240V、19V3.42A/65W Output       USA Standard  CE approvalUK Standard
EU Standard
Software Configuration
TypeDetailsDescriptionsOptional
Operation SystemOS versionwindows 10 Home 64bit   Default language:English  windows 10 Home 64bit
Windows 10 Pro 64bit
Windows 10 IOT 64bit
Product Certificate
TypeDetailsDescriptionsOptional
Certificate SystemIP65IP65 Report:Water Resistance:IP-X5,Dust Resistance:P-6X  Report ID no.:SET2015-07677
a.Inner Nozzle Diameter:6.3mm;   b. Water Speed:12.5±0.625L/min;
c. Water Pressure:Adjust according to water volumn;
d.Central part of water volumn :A round with a diameter of about 40mm at the distance from the nozzle 2.5m.
e.Spray time in surface of panele: About 1 min/Square meter;f.Test time:at least 3min;
g.Distance between nozzle and panel surface:2.5~3m。
After test,there is no water leakage in sample.
NA
CE-NBYESNA
MIL-STD-810GYESNA
CCCYESNA
BatteryUN3803,MSDS,IEC62133,Aviation, Ocean shipping reportsNA
Reliability
TypeDetailsDescriptionsOptional
Product ReliabilityDrop Height1.22m  composite wood floors, in operation status
Operate Temperature‘-20 °C to 60 °C
Store Temperature’-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing



Accessories of 12'' Intel: EM-I20J Rugged Tablet

Various modules and accessories can be selected to meet customers' application in various industries.

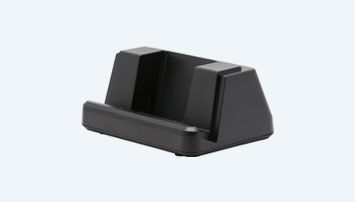

Docking Charger
Docking Charger
hand strap
hand strap
Vehicle Mount
Vehicle Mount
Car Charge
Car Charge
Removable Battery
Removable Battery
Carry handle
Carry handle

Application Range of 12.2'' Intel: EM-I20J Rugged Tablet

Various modules and accessories can be selected to meet customers' application in various industries.


Warehouse & Logistics Industry
Warehouse & Logistics Industry
Surveying & Mapping Industry
Surveying & Mapping Industry
Manufacturing Industry
Manufacturing Industry
Energy Industry
Energy Industry
Public Industry
Public Industry
Traffic Industry
Traffic Industry
