8'' Windows: EM-I87J 4G Rugged Tablet

  • Intel Jasper Lake processor Celeron N5100

  • 8 inch IPS screen, 1920x1200 TFT

  • 5-point capacitive touch

  • High-speed communication as 2.4G/5.8G WIFI,  4G LTE, BT4.2, etc

  • Efficient file transfer relies on an advanced USB 3.0 I/O port

  • Front 5.0MP + Rear 8.0MP, autofocus with a flashlight

  • IP65 Waterproof and Dustproof, MIL-STD-810G certified

  • Removable 5000mAh battery & New battery-free working mode

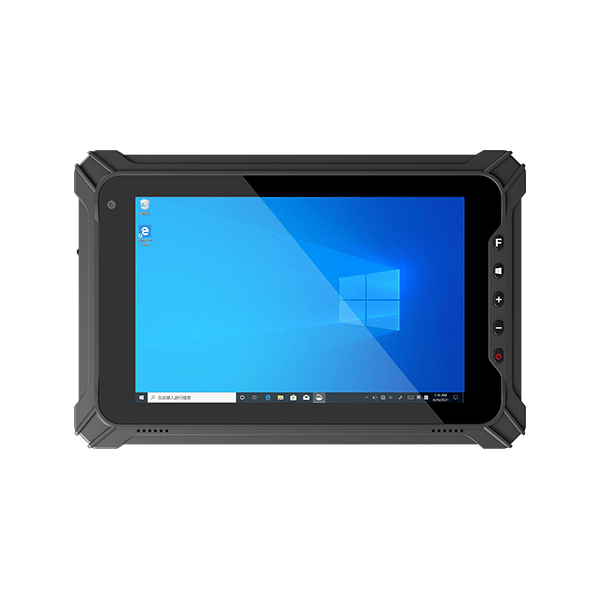

i87j 1

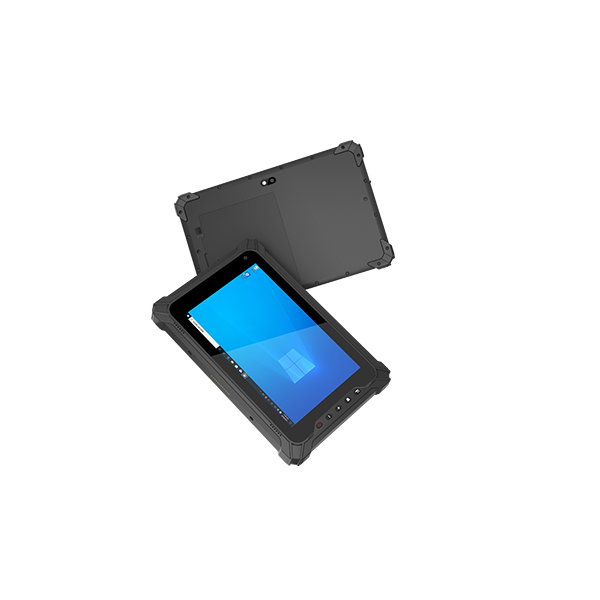

i87j 4

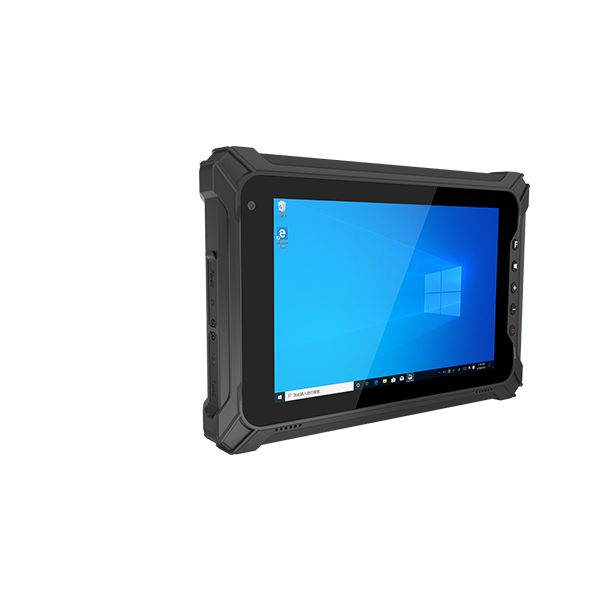

i87j 5

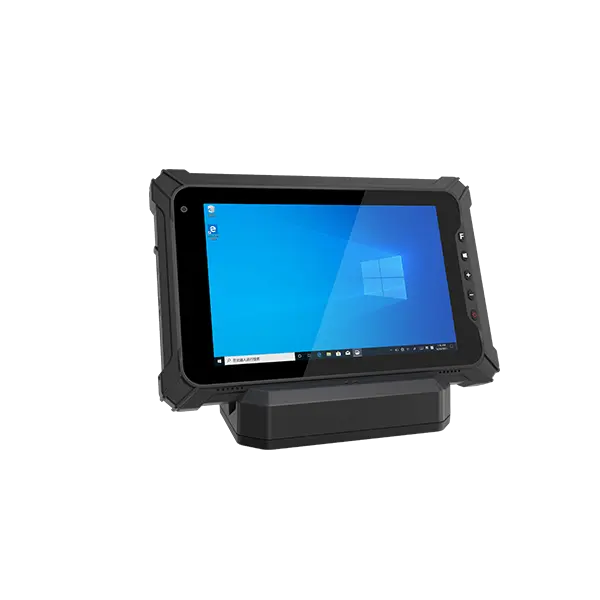

i87j 6
ip67 ip67
high capacity high capacity
gps gps
nfc nfc
3g4g 3g4g
2d 2d
wifi wifi
bluetooth bluetooth
windows windows

Features of 8'' Windows Tablet EM-I87J Rugged PC


  • Intel Jasper Lake processor Celeron N5100

  • 8 inch IPS screen, 1920x1200 TFT, 550nits

  • 5-point capacitive touch

  • High-speed communication as 2.4G/5.8G WIFI,  4G LTE, BT4.2 and etc

  • Efficient file transfer relies on an advanced USB 3.0 I/O port

  • Optional high-performance 2D imager designed to data capture

  • Front 5.0MP + Rear 8.0MP, autofocus with a flashlight

  • Symmetric speakers. More immersive, more clear

  • User-friendly buttons designed for efficient action

  • Enhanced rugged corners withstand shock and impact

  • IP65 Waterproof and Dustproof, MIL-STD-810G certified

  • Removable 5000mAh battery & New battery-free working mode



Six Views of 8'' Windows Tablet EM-I87J Rugged PC


Six Views of 8'' Windows Tablet EM-I87J Rugged PC



Specifications of 8'' Windows Tablet EM-I87J Rugged PC


TypeDetailsStandard ConfigurationOptional
Product FormProduct FormRugged TabletN/A
Dimension236.7*155.7*20mmN/A
WeightDevice unit: 910N/A
Product ColorblackN/A
LCDScreen Size8“   16:10N/A
Resolution1200*1920 TFTN/A
Brightness550cd/m2N/A
TPTouch panel5 points Toughened glass capacitor screen, G+G, Rigidity: above 7H-Anti-scratchN/A
CameraFrontFront:5.0MPN/A
RearRear: 8.0MP, Autofocus with a flashlightN/A
SpeakerBuilt-inEmbedded 8Ω/0.8W speaker x 2N/A
MicrophoneBuilt-inSingle MICN/A
Battery(tablet)TypeRemovable polymer li-ion batteryN/A
Capacity7.6V/5000mAh (It can be fully charged in 4 hours under the charging current of 19V/3.42A)N/A
Endurance9h(default 50% volume,default 200 lumens brightness,play 1080P HD video)N/A
Real-time clockBuilt-inBuilt-in rechargeable 3 V/1mAh lithium-ion batteryN/A
System Hardware Configuration
TypeDetailsDescriptionsOptional configuration
CPUTypeIntel JASPER LAKE N5100N/A
Speed2.8GHzN/A
GPUTypeIntel® HD Graphics Gen 11 LPN/A
RAMLPDDR34G8GB
ROMEmmc64G128G
G_sensorBuilt-inG_sensor *1N/A
Internet Connections
TypeDetailsDescriptionsOptional configuration
WIFIWIFI module802.11 a/b/g/n/ac (2.4G/5.8G)N/A
BluetoothBuilt-inBT5.0N/A
4G (Optional)Built-inLTE FDD: B1/B3/B5/B7/B8/B20  LTE-TDD B40,WCDMA: B1/B5/B8 GSM: 900/1800N/A
GPSBuilt-inSupport GPS(L1 1.575GHz C/A code), GLONASS(L1 1.602GHz)N/A
Data collection
TypeDetailsDescriptionsOptional configuration
Two-dimension barcodeoptionalN/AHoneywell N3680
NFCoptionalNXP NFC 13.56MHz,support ISO/IEC :14443A/14443B/15693/18092/Mifare protocol,Card reading distance:0-4cmoptional
I/O Ports
TypeDetailsDescriptionsOptional configuration
TF CardThree in one cardholderMicro SD card, up to 512GBN/A
SIM CardNano-SIM x 1N/A
USB portExtending external storage and data exchangeUSB 3.0x1,  Type C x1(data&charing)N/A
Earphone Jackaudio output∮3.5mm standard earphone jack  x1N/A
HDMI portvideo, audio outputHDMI 1.4a mini  x1N/A
Extension interfacepogo Pin12pin  Pogo Pin   x1N/A
Standard Accessories
TypeDetailsDescriptionsOptional configuration
Data lineData lineType-C USB data lineN/A
Hand-strapHand-strap157.5*57.30  PU+Elastic band(SGS)N/A
AdapterStandardAC100V ~ 240V、50Hz/60Hz output DC 19V/3.42A      EU StandardN/A
N/A
Indicator light
TypeDetailsDescriptionsOptional configuration
Indicator lightBuilt-inIndicator light * 2 R / g two-color lights and 1 blue light. The power-on is blue and always on. It is red constant when charging. The full display is green constant, and the low point flashes red.N/A
Key
Scan key2D code scanningScan key  x1When there is no adaptive scanning head, this key can be customized
Power keyOn/off buttonPower key  x1
Volume keyVolume adjustment buttonVolume+  x1, Volume-  x1
Home key
Home key  x1
Software Configuration
TypeDetailsDescriptionsOptional configuration
Operation SystemOperation System
Version
windows10 homewindows 10 home/windows 10 IOT
Product Certificate
TypeDetailsDescriptionsOptional configuration
Certificates SystemIP65IPX5
Method name: short time submerging test
test devise and test condition: submerge water box. the size should make the testing sample into submerge box and after then, the distance from sample bottom to water surface at least 1m. and distance from sample top side to water surface at least 0.15m.
Testing time: 30 min
N/A
CCCYN/A
MIL-STD-810GYN/A
CEYN/A
FCCYN/A
Reliability
TypeDetails
Optional configuration
Product reliabilityFalling heightMIL-STD-810G 1.22m dropN/A
Working temperature-20 °C to 60 °CN/A
Storage temperature-30 °C to 70 °CN/A
Electrostatic discharge± 8KV contact discharge, ± 10kV air dischargeN/A
HumidityHumidity: 95% Non-CondensingN/A



Accessories of 8'' Windows Tablet EM-I87J Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.


10 intel em i15h base
10 intel em i15h base
carry handle
carry handle

Application Range of 8'' Windows Tablet EM-I87J Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.


emdoor surveying mapping industry
emdoor surveying mapping industry
emdoor manufacturing industry
emdoor manufacturing industry
emdoor energy industry
emdoor energy industry
emdoor public industry
emdoor public industry
emdoortrafficindustry220x220
emdoortrafficindustry220x220
emdoor warehouse logistics industry
emdoor warehouse logistics industry
