A brand new 8-inch Android tablet, built on an Android11 OS and 5G chip, delivers a faster speed than ever before. With a 219*139*12.5 millimeters and mere 524 grams lightweight body, relieving the stress of carrying it around.
Android 11
IP65
GPS
Camera
NFC
2G/3G/4G /5G
WiFi
High-capacity
Bluetooth5.1
2D MediaTek Octa-core CPU with two Arm 'Big’ Cores
8 inch IPS screen with 10-point touch
Dual 5G (SA/NSA) network support
High speed 4G LTE and dual-band Wi-Fi 5
Professional 2D scanner an multi-function NFC
Support GPS / GLONASS / GALILEO / BDS
IP65 Waterproof and Dustproof
Upgrade BT 5.1, fast and more stable
Built to operate in extreme temperatures
Impact resistance: Drop from a height of 1 meter
Android 11 OS and 4GB RAM＋64GB storage (optional 6GB＋128GB)

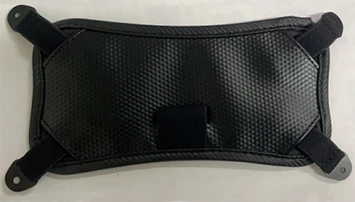

Equipped with multiple accessories,such as docking charger, hand-strap, detachable keyboard
| Type | Details | Standard Configuration | Optional | ||||
| Product Form | Type | Rugged Tablet | |||||
| Dimension | 219*139*12.5mm | ||||||
| Weight | 524g | ||||||
| LCD | Screen Size | 8 inch 16:10 | |||||
| Resolution | 1200*1920 | NA | |||||
| Brightness | 550cd/m2 | NA | |||||
| TP | Touch Panel | 10 points Capacitive，G+G | NA | ||||
| Front camera | Front camera | 500W(IC:GC5035)，MIPI，(FF) | NA | ||||
| Light sense | V2000 | NA | |||||
| Charging indicator | Specification: red and green two-color lamp Logic: no breathing effect (red light flashes at 0% ~ 20% of low power, charging red light stays on, green stays on after 90% of power) | NA | |||||
| Rear camera | Rear camera | 1300W(IC:OV13855)，MIPI，auto focus(AF) | NA | ||||
| Flash lamp | Flash lamp | Single flash，1A/2W | NA | ||||
| Loudspeaker | Built in | Embedded 8Ω/1W waterproof speaker x 1 | NA | ||||
| Mic | Built in | Sensitivity:-42db, Output resistance:2.2kΩ | NA | ||||
| Battery | Type | Build in Lithium-ion polymer battery | NA | ||||
| Capacity | 3.8V/7200mAh | NA | |||||
| Endurance | 8hrs(default 50% volumn，default 550nit，play 1080P HD video) | NA | |||||
| System Hardware Configuration | |||||||
| Type | Details | Description | Optional | ||||
| CPU | Type | MT6833(5G-C) （8core） | NA | ||||
| Speed | 2x A76 2.2GHz,256KB L2 6x A55 2.0GHz,128KB L2 | NA | |||||
| GPU | Type | ARM NATT MC2 | NA | ||||
| RAM | LPDDR4X | 4GB (LPDDR4X) | 6GB (LPDDR4X) | ||||
| ROM | UMCP | 64GB | 128GB | ||||
| M-Sensor | Onboard | Geomagnetic sensing (Compass) | NA | ||||
| gyroscope | Onboard | gyroscope | NA | ||||
| G_sensor | Onboard | Gravity acceleration sensor | NA | ||||
| Network Connections | |||||||
| Type | Details | Description | Optional | ||||
| WIFI | WIFI Module | Frequency band：WIFI 802.11(a/b/g/n/ac) frequency：2.4G+5.0G(5.1G+5.8G) Dual band WiFi Others: Support AP seamless roaming | NA | ||||
| Bluetooth | Built in | BT5.1 | NA | ||||
| 2G/3G/4G/5G | Built in | GSM：B2、B3、B5、B8 WCDMA：B1、B2、B5、B8 TDD：B34、B38、B39、B40、B41 FDD：B1、B2、B3、B4、B5、B7、B8、B17、B20、B28a、B28b 5G：N1+N3+N5+N28+N38+N41+N77+N78+N79 | NA | ||||
| GPS | Built in | 1. GPS/Galileo/GLONASS/BeiDou(G+G+G+B) 2. Alternative single Beidou | NA | ||||
| NFC | Built in | frequency：13.56MHz Support 14443a / 14443b / 15693 / 18092 / Mifare protocol under ISO / IEC Card reading distance: 2.5~4cm | NA | ||||
| Network Connections | |||||||
| Type | Details | Descriptions | Optional | ||||
| 2D | Optional (choose one from 5G) | Serial port | N1 | ||||
| optical resolution: ≥3mil | |||||||
| SCAN Speed: 75 times/s | |||||||
| support code system : 1D：Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f_x005f Plessey 2D：PDF417, QR Code, Micro QR, Data Matrix | |||||||
| Interface Configuration | |||||||
| Type | Details | Descriptions | Optional | ||||
| TF Slot | Extensive External Memory | x1 max：512G | Two out of three Cato (micro SIM + TF or micro SIM + nano SIM) | ||||
| SIM Slot | SIM Slot | x2 | |||||
| type C | Type C | Support USB2.0/OTG/PE+18W | |||||
| Extension interface | Pogo pin to base interface | 12pin Pogo Pin x1 |  | ||||
| Standard Accessories | |||||||
| Type | Details | Descriptions | Optional | ||||
| Type-C OTG line | Type-C OTG line | Type C OTG line_V1.0,AWM 2725 10/0.10*4C +LV +32/0.10 OD3.5 L=138MM | NA | ||||
| Type-C data line | Optional | Type-C data line_ V1.10003946, the length of black wire is 1.0m, one side of CC pin is connected to VCC after adding resistance, and the other side is empty. Amendment: add tail, change differential wire to twisted pair, add shielding layer, and the internal resistance of copper core is less than 80 Ω | NA | ||||
| Type-C adapter | Standard | USB type-C interface, support fast charging PE + 2.0, Maximum Power 18W, maximum 9V / 2A. | CN | ||||
| Software Configuration | |||||||
| Type | Details | Descriptions | Optional | ||||
| Operation System | OS version | Android 11 /GMS | NA | ||||
| Product Certificate | |||||||
| Type | Details | Descriptions | Optional | ||||
| Certificate System | EOS | VBUS 300/80us VBAT 300v/20us | NA | ||||
| ESD | ± 15kV air discharge, ± 8Kv contact discharge | NA | |||||
| authentication | CE/FCC/CCC | NA | |||||
| IP rating | IP65 | NA | |||||
| Drop Height | 1m drop resistant | NA | |||||
| Operate Temperature | ‘-10 °C to 50 °C | NA | |||||
| Store Temperature | ’-20 °C to 60 °C | NA | |||||
| Humidity | Humidity: 95% Non-Condensing | NA | |||||
| Optional | Charging base | Base interface: USB2.0 * 2, RJ45, RS232 serial port, type-C (only for power supply and charging) | NA | ||||
| Application scenario | Field service / warehousing and logistics / production line maintenance / retail stores | ||||||
Various modules and accessories can be selected to meet customers' application in various industries.
