8'' Android: EM-Q86 IP67 level Rugged Tablet

Hot sale Android Rugged Tablet EM-Q86

  • Hot sale & High-performance Fully Rugged Tablet

  • Rugged IP67 protective grade for waterproof & dustproof

  • Qualcomm 8 core with Android10.0 OS/ GMS Device

  • 1D/2D barcode scanner/USB/NFC/BD

  • A comfortable size for work, hold it comfortably in one hand, easy to control.

  • Abundant ACCESSORIZE to be more convenient

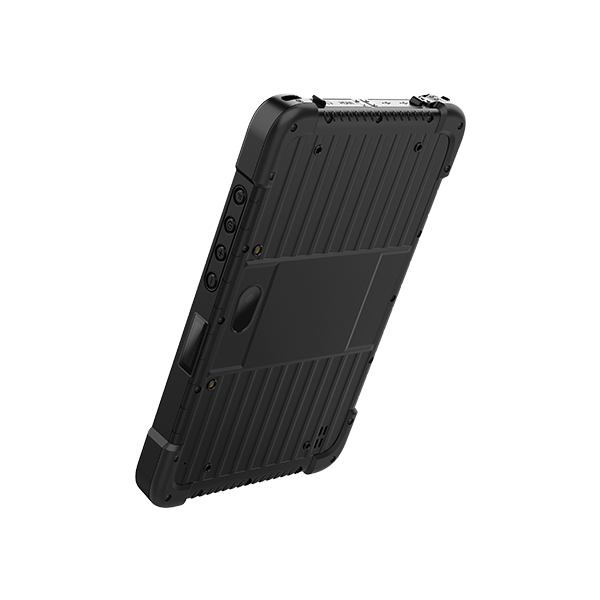

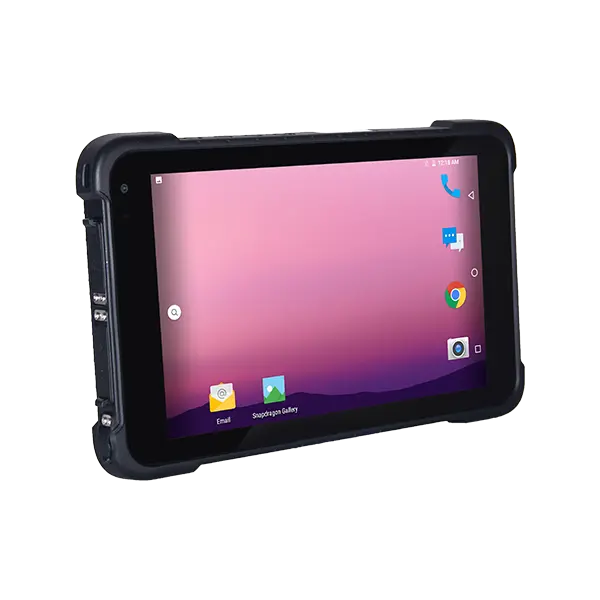

8'' Android: EM-Q86 Rugged Tablet
8'' Android: EM-Q86 Rugged Tablet
8'' Android: EM-Q86 Rugged Tablet
8'' Android: EM-Q86 Rugged Tablet
8'' Android: EM-Q86 Rugged Tablet
Android Android
IP67 IP67
High-capacity High-capacity
GPS GPS
NFC NFC
3G/4G 3G/4G
1D 1D
2D 2D
WiFi WiFi
Bluetooth Bluetooth

Features of 8'' Android Tablet EM-Q86 Rugged PC


  • Support for Android 10.0 system

  • Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes

  • 8500mAh battery, 6-8 hours of machine endurance

  • IP67 high protection level, in accordance with MIL-STD-810G

  • Support GPS, more accurate positioning

  • Rear 13 million pixel auto focus camera, easy to collect image and video information

  • Support 1D/2D, NFC and other functional modules for free selection

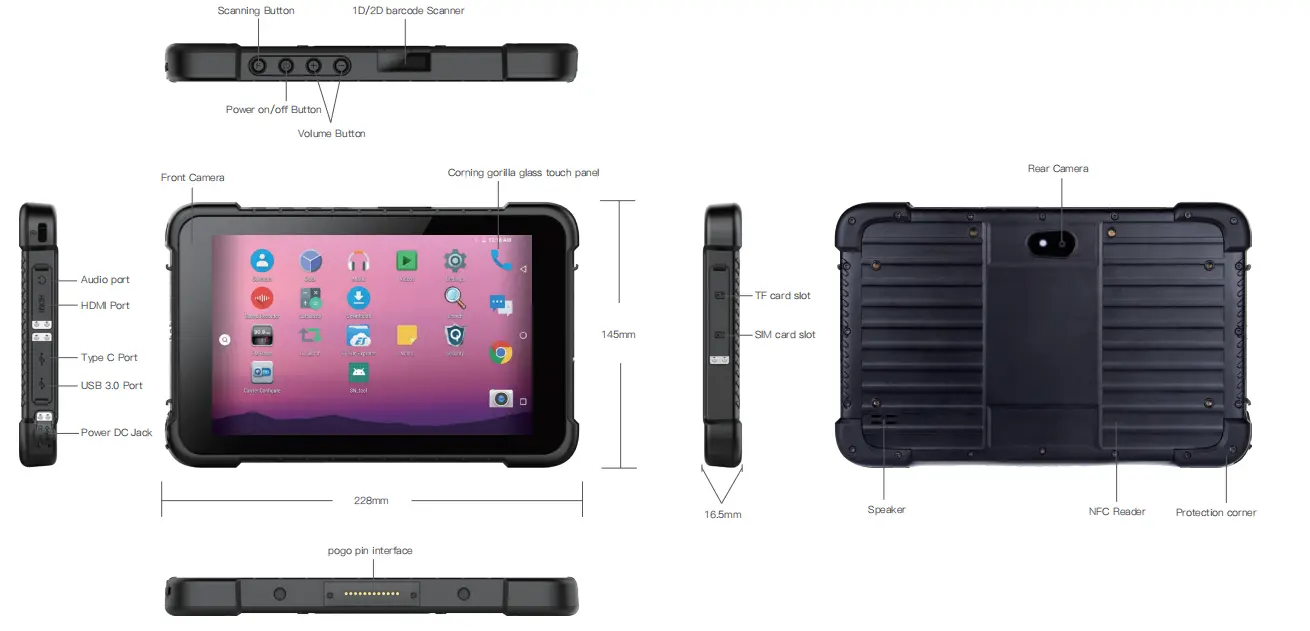

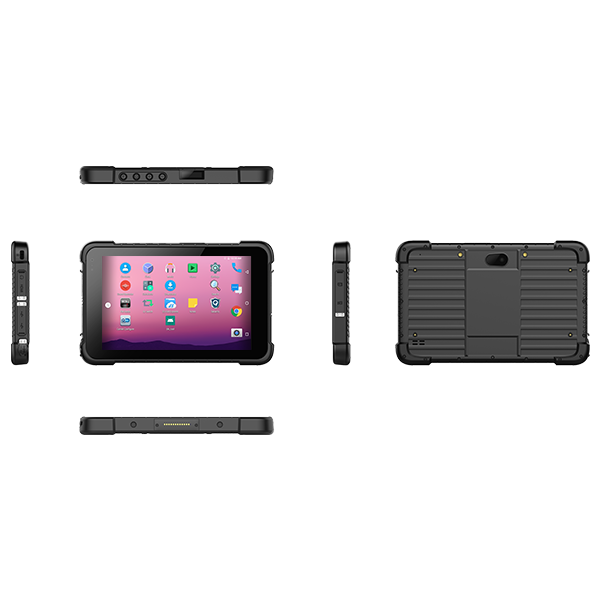

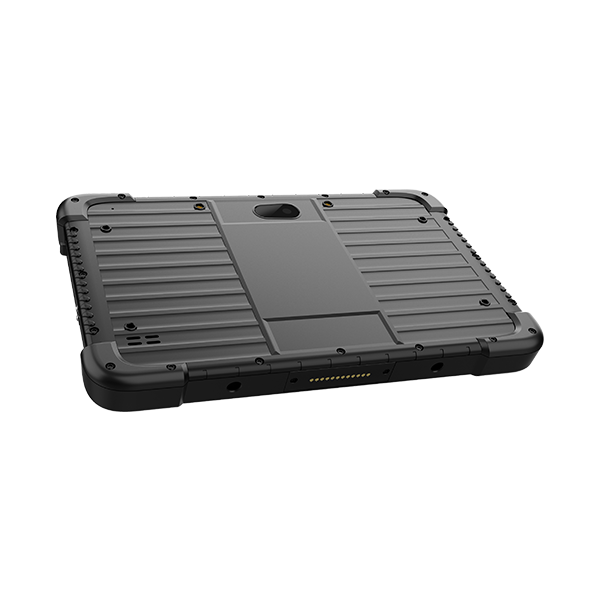

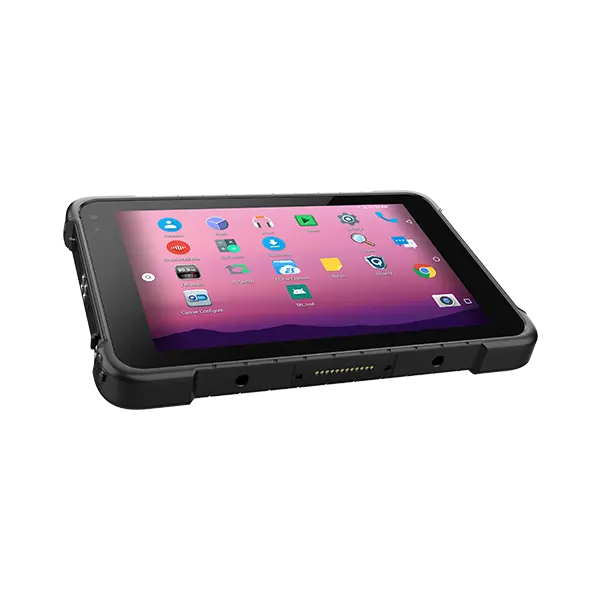

Six Views of 8'' Android Tablet EM-Q86 Rugged PC


Six Views of 8'' Android Tablet EM-Q86 Rugged PC



Specifications of 8'' Android Tablet EM-Q86 Rugged PC


Model No:EM-Q86 Specification
TypeDetailsStandard ConfigurationOptional
Product FormTypeRugged TabletNA
Dimension228*145*16.5mmNA
WeightDevice unit:715g  ,Unit with gift box and standard accessories:1330g,docking:290gNA
Device Colorblack( bottom shell in black, front shell in black)NA
LCDScreen Size8 inch   10:16NA
Resolution800*1280 IPS LCD/1920*1200FHDNA
Brightness450 NitNA
TPTouch PanelMulti points Capacitive,G+G,Rigidity: above 7H-Anti-scratch,support handwritingNA
CameraFrontFront:5.0MPNA
RearRear: 13MP auto-focus with a flashlightNA
SpeakerBuilt-inEmbedded 8Ω/0.8W waterproof speakerx 1NA
MicBuilt-inSensitivity:-42db, output resistance2.2kΩNA
Batterytypebuild in polymer li-ion batteryNA
Capacity3.7V/8500mAhNA
EnduranceAbout 8 Hrs(default 50% volumn,default 400 lumens brightness,play 1080P HD video)NA
System Hardware Configuration
TypeDetailsDescriptionsOptional
CPUTypeMSM8953(8core)NA
Speed2.0GHzNA
GPUTypeAdreno 506 1920 × 1200 @ 60 fpsNA
RAMDDR3L4GBNA
ROMEmmc64GBNA
G_sensorBuilt-inGravity acceleration sensorNA
Network Connections
TypeDetailsDescriptionsOptional
WIFIWIFIWIFI 802.11 b/g/n/a/ac frequency 2.4G+5G dual band WIFI,NA
BluetoothBuilt-inBT4.1(BLE)NA
2G/3G/4GOptionalCMCC 4M:
LTE B1,B3,B5,B7,B8,B20,B38,B39,B40,B41
 WCDMA 1/2/5/8
GSM 2/3/5/8
NA
GPSBuilt-insupport:GPS+Glonass;Capture sensitivity:-140 dBm;Cool Start Time:<50秒,Hot start time:<5秒,GPS frequency:1575.42MHz,Glonass frequency:1602MHZNA
NFCBuilt-inNFC 13.56MHz  support SO/IEC 14443A/14443B/15693/18092/Mifare protocol,Card reading distance:3cm~5cmNA
1D barcode scannerOptionalNAMOTO  SE655E100R
2D barcode scannerOptionalNA

EM07

Hardware decoder

Interface Configuration
TypeDetailsDescriptionsOptional
TF slotExtensive External Memorysupport TF   x1    max:128GNA
SIM slotSIM cardSIMx1NA
USB  interfacedata transmissionstandard USB 3.0x1, type C x1(data&charing)NA
Earphone JackAudio Output∮3.5mm  standard earphone jack   x1NA
DC JackPowerDC 5V 3A ∮3.5mm Power connector  x1NA
HDMIVideo OutputHDMI 1.4a Type C  x1NA
Extensive Slotpogo Pin12pin  Pogo Pin   x1NA
Standard Accessories
TypeDetailsDescriptionOptional
OTG cableOTG cabletype-c OTG cableNA
type-c  cabletype-c  cabletype-c cableNA
Power AdaptorStandardAC100V ~ 240V、50Hz/60Hz output DC 5V/3A      USA Standard  CE approvalUK standard
EU Standard
Software Configuration
TypeDetailsDescriptionOptional
Operation SystemOS versionAndroid 10.0 GMSNA
Software Configuration
TypeDetailsDescriptionOptional
Certificate SystemIP65IP67 Report: Water resistance:IP-X7,Dust resistance:IP-6X  Report ID no.:SET2015-07677
a.Inner Nozzle diameter:6.3mm;   b. water speed:12.5±0.625L/min;
c. Water Pressure:adjust according to water volumn;
d.Central part of water volumn:diameter of 40mm, distance from nozzle: 2.5M
e.Spray time on surface of panel:about 1min;f.test time:at least 3min;
g.distance between nozzle and panel surface:2.5~3m。
After test,there is no water leakage in sample.
NA
CE NBY
MIL-STD-810GY
BatteryUN38.3,MSDS,IEC62133
Reliability
TypeDetailsDescriptionsOptional
Product ReliabilityDrop HeightMIL-STD-810G 1.22m drop
Operate Temperature‘-20 °C to 55 °C
Store Temperature’-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing



Accessories of 8'' Android Tablet EM-Q86 Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.

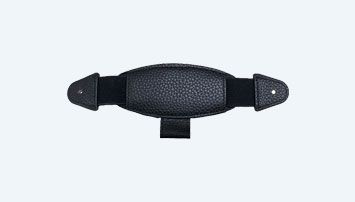

Q86 Hand-strap
Q86 Hand-strap
Rugged Tablet 8 Back-strap
Rugged Tablet 8 Back-strap

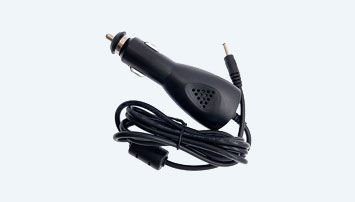

Rugged Tablet Car Charge
Rugged Tablet Car Charge

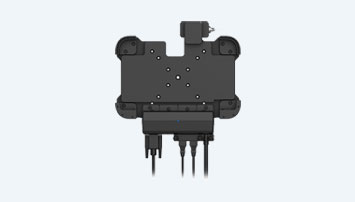

Rugged Tablet Vehicle Mount
Rugged Tablet Vehicle Mount

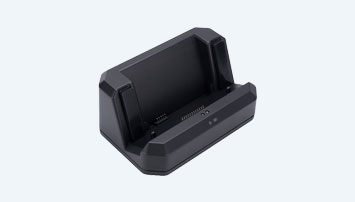

Q86 Docking Charger
Q86 Docking Charger

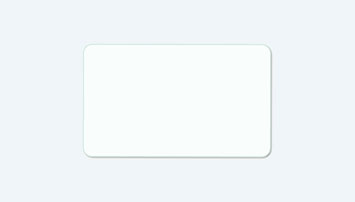

Q86 TP Film
Q86 TP Film
Rugged Tablet Shoulder-strap
Rugged Tablet Shoulder-strap

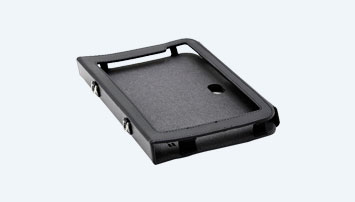

Q86 Leather Case
Q86 Leather Case

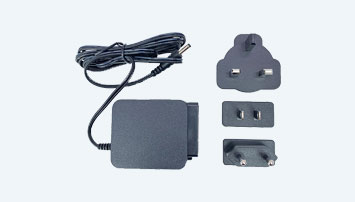

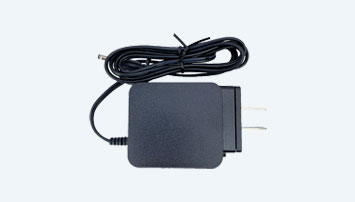

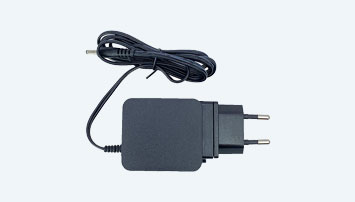

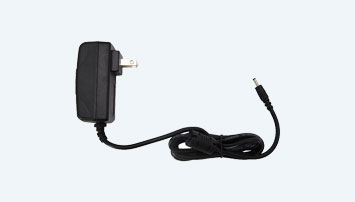

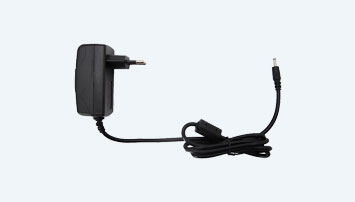

Q86 Adapter
Q86 Adapter
Q86 Adapter
Q86 Adapter
Tablet EM Adapter
Tablet EM Adapter
Tablet EM Adapter
Tablet EM Adapter
Q86 Adapter
Q86 Adapter

Application Range of 8'' Android Tablet EM-Q86 Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.


Surveying & Mapping Industry
Surveying & Mapping Industry
Manufacturing Industry
Manufacturing Industry
Energy Industry
Energy Industry
Public Industry
Public Industry
Traffic Industry
Traffic Industry
Warehouse & Logistics Industry
Warehouse & Logistics Industry
