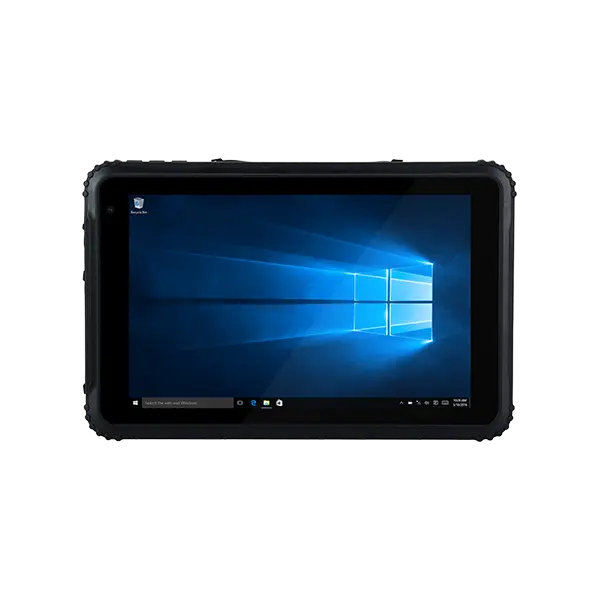

8'' Intel: EM-I88H Windows 10 Industrial Tablet

  • Born for rugged

  • EM-I88H Rugged Tablet PC has a high protection level of IP67.

  • No fear of splash, more fearless collision.

  • 8-inch screen and ultra-thin body, worry-free carrying!

  • Windows 10 system gives you a faster and more stable experience.

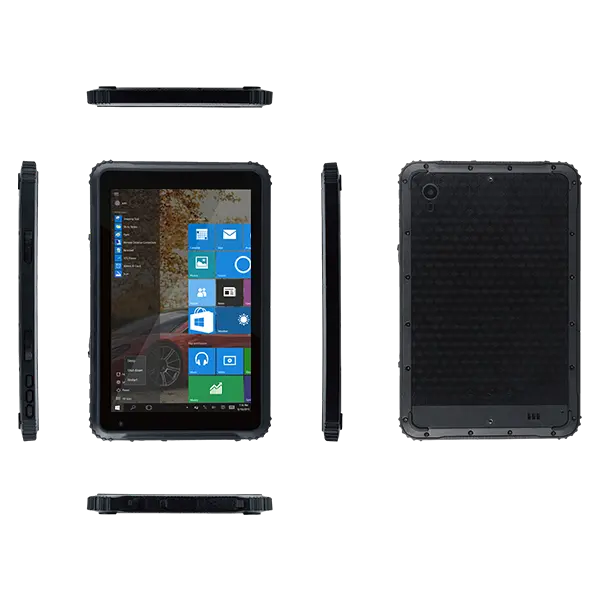

8'' Intel: EM-I88H Rugged Tablet
8'' Intel: EM-I88H Rugged Tablet
8'' Intel: EM-I88H Rugged Tablet
8'' Intel: EM-I88H Rugged Tablet
8'' Intel: EM-I88H Rugged Tablet
Windows Windows
GPS GPS
Camera Camera
NFC NFC
3G/4G 3G/4G
IP67 IP67
High-capacity High-capacity
WiFi WiFi
Bluetooth Bluetooth

Features of 8'' Intel Tablet EM-I88H Rugged PC


  • Support for Windows 10 system

  • Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes

  • 7500mAh battery, 6-8 hours of machine endurance

  • IP67 high protection level, in accordance with MIL-STD-810G

  • Support GPS, more accurate positioning

  • 800x1280 IPS, Optional SLR sun visible fifilm, more suitable for outdoor harsh environment

  • Built in NFC and other functional modules to meet the application needs of multiple industries

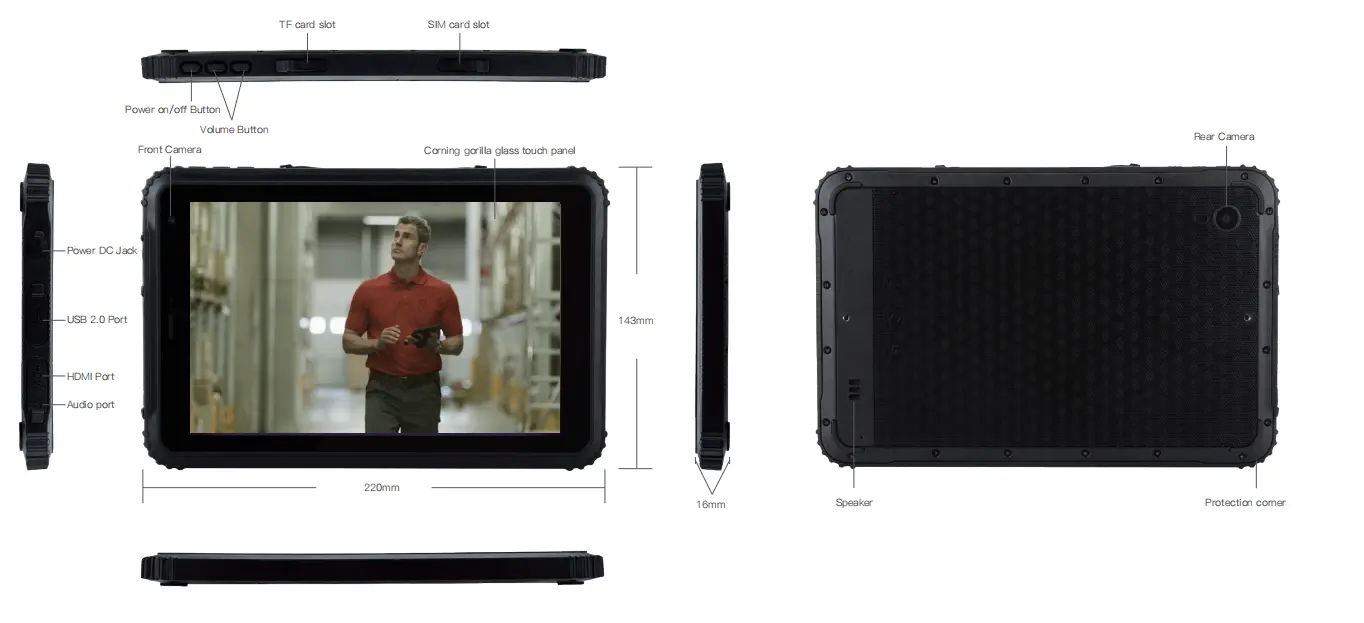

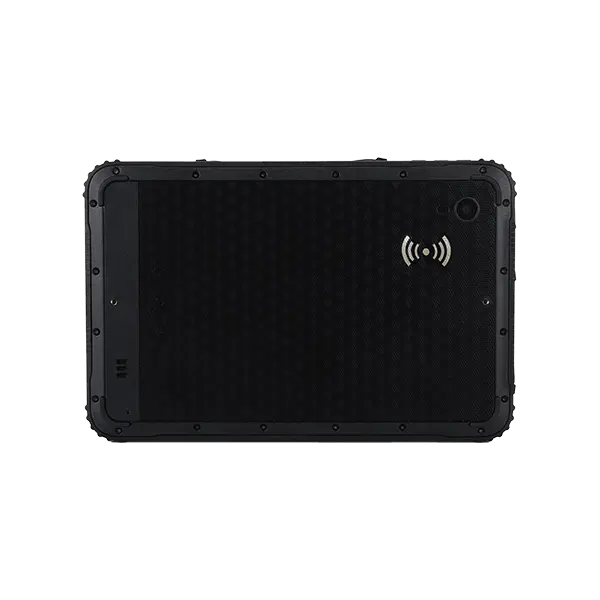

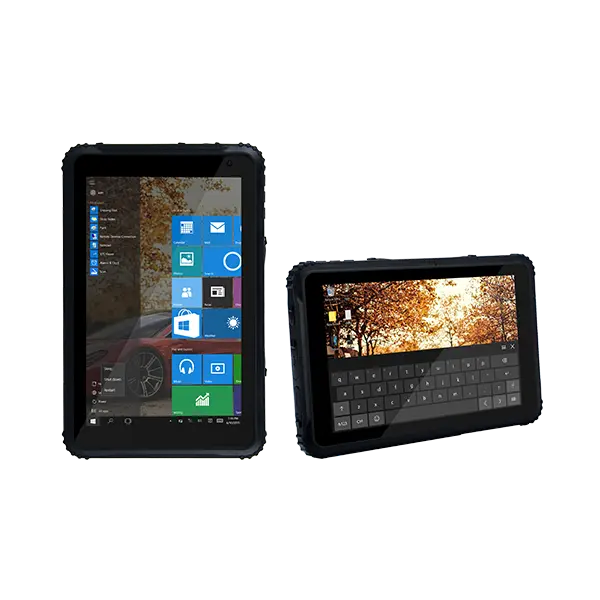

Six Views of 8'' Intel Tablet EM-I88H Rugged PC


8'' Intel: EM-I88H Rugged Tablet



Specifications of 8'' Intel Tablet EM-I88H Rugged PC


Model No:EM-I88H Specification
TypeDetailsStandard ConfigurationOptional
Product FormTypeRugged TabletNA
Dimension220*143*16mmNA
WeightDevice unit: 647g  ,Unit with giftbox and standard accessories:1300gNA
Device Colorblack+black color(bottom shell: black color, front shell: black color )silver color(bottom shell: silver color, front shell: black color
LCDScreen Size8 inch  10:16  NA
Resolution800*1280 IPSNA
Brightness400Nitoptional SLR Sunlight visible film
TPTouch Panel10points Capacitive,G+G,,Rigidity: above 7H-Anti-scratchoptional SLR Sunlight visible film
CameraFrontFront:2.0MP   with indicator lightNA
RearRear: 5.0MP  NA
SpeakerBuilt-inEmbedded 8Ω/0.8W BOX waterproof speaker  x 1NA
MicBuilt-inSensitivity:-42db, output resistance2.2kΩNA
BatteryTypeBuild-in Lithium-ion polymer batteryNA
Capacity3.7V/7500mAh NA
Endurance7hrs(default 50% volumn,default200 lumens brightness play 1080P HD video)NA
System Hardware Configuration
TypeDetailsDescriptionsOptional
CPUTypeIntel cherry trail Z8350NA
Speed1.44Ghz-1.92GHzNA
GPUTypeIntel® HD GraphicsNA
RAMDDR3L4GB  NA
ROM  Emmc64GB    NA
G_sensorBuilt-inGravity acceleration sensorNA
Network Connections
TypeDetailsDescriptionsOptional
WIFIWIFI moduleWIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G  dual-band WIFI intel 3165D2WGNA
BluetoothBuilt-inBT4.2 (BLE) class1 transmission distance:10mNA
3GBuilt-inIC:H350_A30:WCDMA(900/2100MHz)  GSM(900/1800MHz),HSDPA 7.2Mbps,HSUPA 5.76 MbpsNA
4GBuilt-inNAEC25-EC(欧版)
LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8
GPSBuilt-inU-blox NEO-7 Support :GPS; Capture sensitivity: -160 dBm;Cool Start Time:<50second,Hot start time:<28seconds,frequency:0.25 Hz … 10 MHz (configurable)NA
NFCBuilt-inNANXP NFC 13.56MHz   support ISO/IEC :14443A/14443B/15693/18092/mifare protocol,Card reading distance:4cm
Interface Configuration
TypeDetailsDescriptionsOptional
TF slotExtensive External Memorysupport TF   x1    max:128GNA
SIM slotSIM cardSIM卡 x1NA
USB3.0 interfacedata transmissionMicro usb3.0*1 (Host)for windows      NA
Earphone JackAudio Output∮3.5mm  standard earphone jack   x1NA
DC JackPowerDC 5V 3A ∮3.5mm Power connector  x1NA
HDMI interfaceVideo OutputHDMI 1.4a Type C  x1NA
Power onpress keypower key x1NA
Volume + -press keypower key x1,Volume + - x2NA
Standard Accessories
TypeDetailsDescriptionOptional configuration
Micr USB cableUSB cableMicro USB  connect to big port USBNA
Power AdaptorStandardAC100V ~ 240V、50Hz/60Hz output DC 5V/3A  USA Standard  CE approvalUK standard
EU Standard
Software Configuration
TypeDetailsDescriptionOptional
Operation SystemOS versionwindows 10  S mode 32bit     Default language:English windows 10 S mode 64bit
Windows10 Pro 32bit /64bit
Software Configuration
TypeDetailsDescriptionOptional
Certificate SystemIP65 IPX7
Method name:short time submerging test
test device and test condition:submerge water box. the size should make the testing sample into submerge box and after then, the distance from sample bottom to water surface at least 1m. and distance from sample top side to water surface at least 0.15m.
Testing time: 30 min
NA
CE NBY
MIL-STD-810GY
BatteryUN38.3,MSDS,IEC62133
Reliability
TypeDetailsDescriptionsOptional
Product ReliabilityDrop HeightMIL-STD-810G 1.22m drop
Operate Temperature‘-20 °C to 60 °C
Store Temperature’-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing



Application Range of 8'' Intel Tablet EM-I88H Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.



Accessories of 8'' Intel Tablet EM-I88H Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.

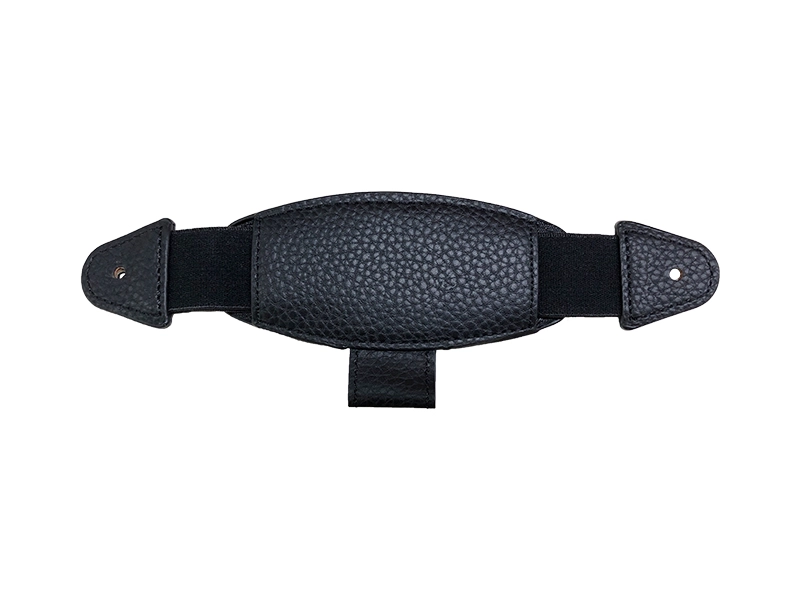

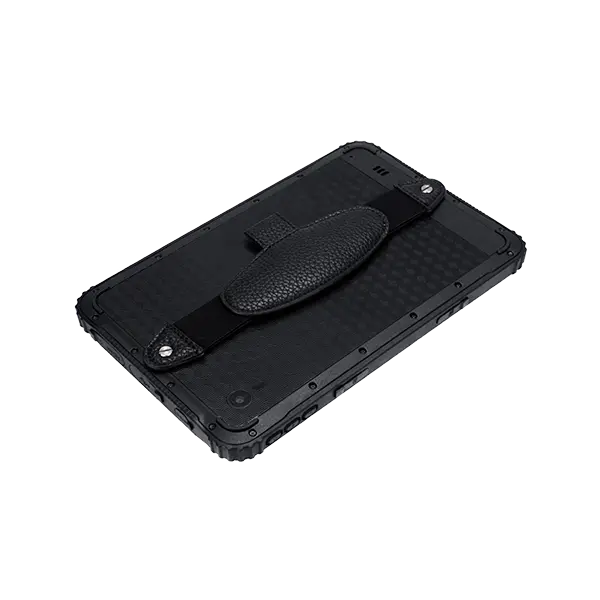

Hand-strap
Hand-strap

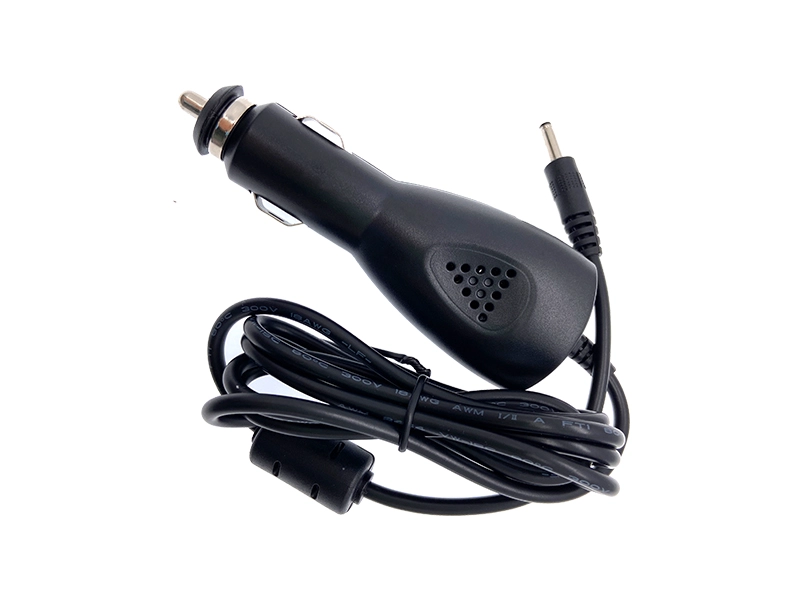

Car Charge
Car Charge

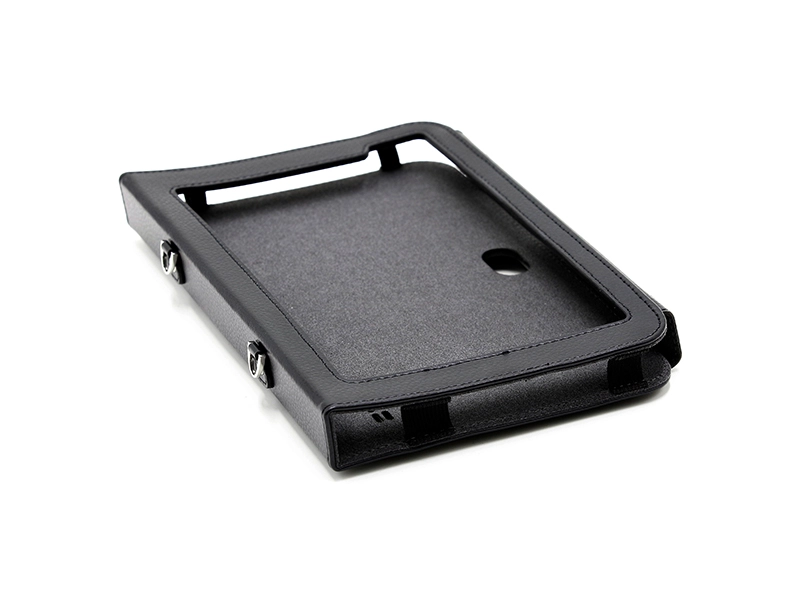

Leather Cover
Leather Cover

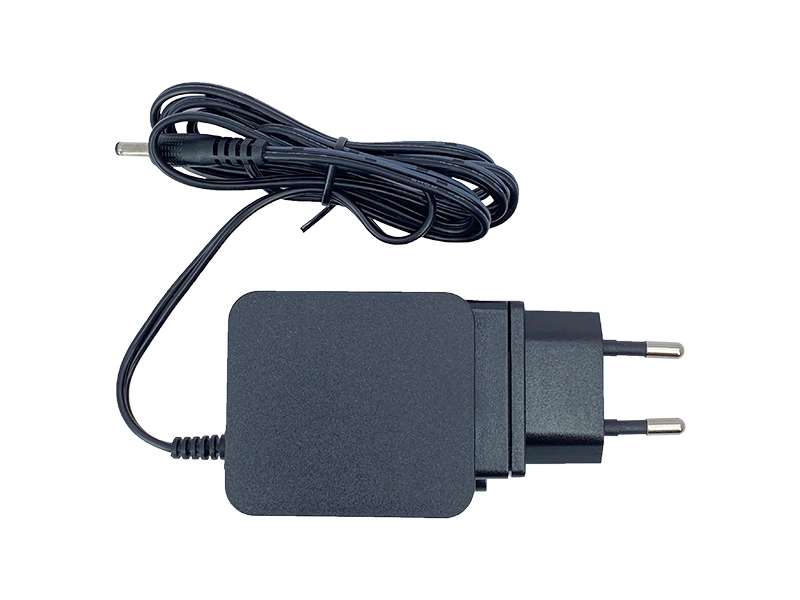

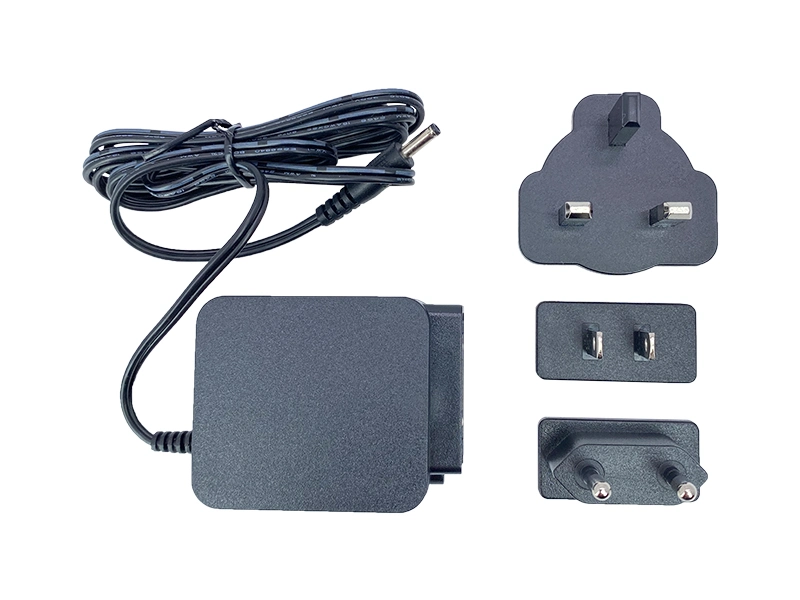

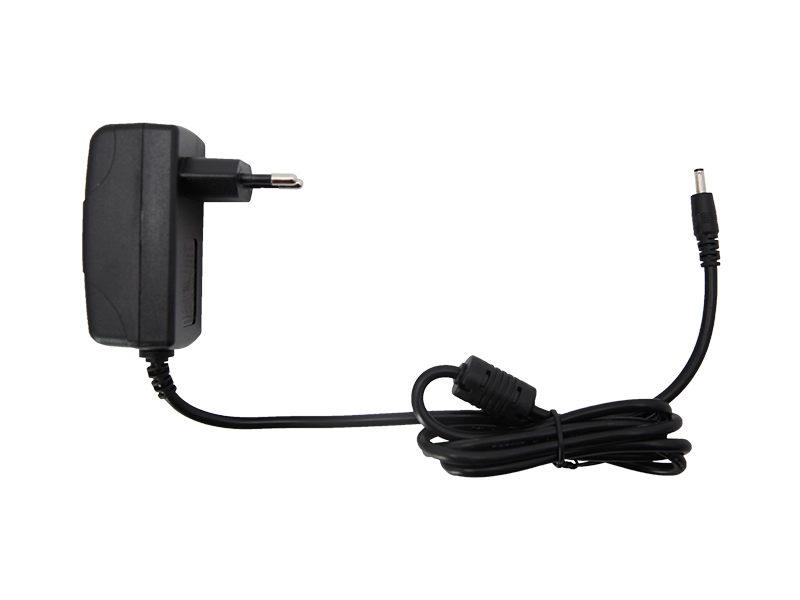

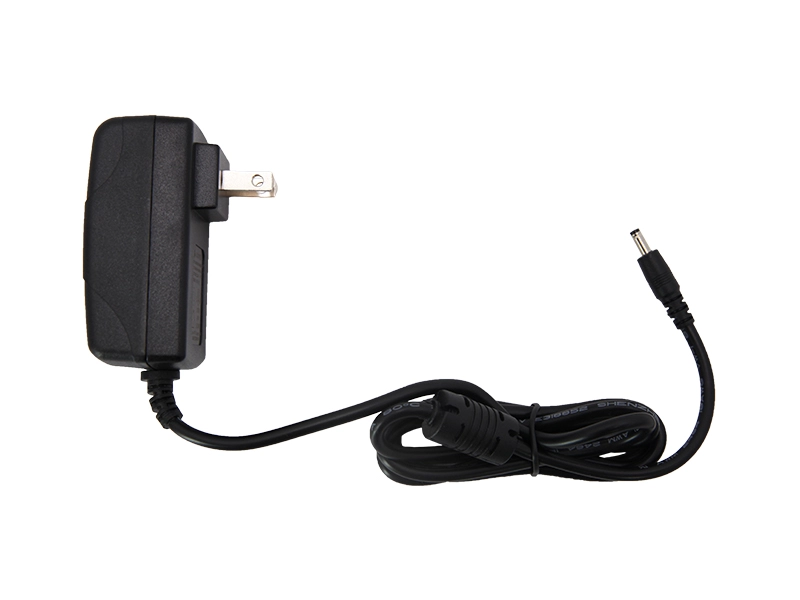

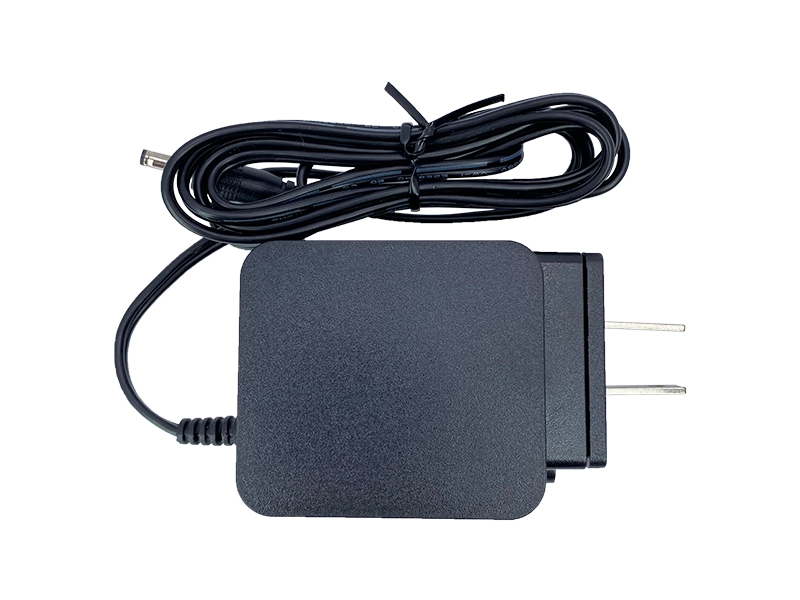

Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
