ARM Octa-core 10.1 inch Android 12 (GMS) Vehicle-mount Tablet : ONERugged V10T

· ONERugged branded（3 year warranty )

· ARM Octa-core CPU with two Arm "Big" Cores

· Android 12（GMS） OS, Up to 8GB+128GB

· 10.1 inch IPS screen, 700nit

·2.4G/5.8G Dual band WIFI

·Optional high speed 4G LTE

·BT 5.2 fast transmission

·IP65 Waterproof and Dustproof

·Wide temperature operation: -20℃~60℃

·±8kV Contact Discharge, ±15kV Air Discharge

Get A Quote PDF Download

ip65

gps

bluetooth

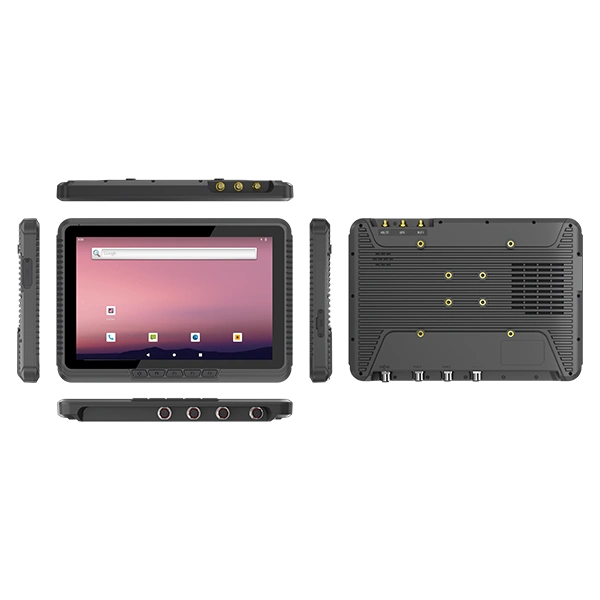

Six views of ARM Octa-core 10.1 inch Android 12 (GMS) Vehicle-mount Tablet : ONERugged V10T

Specifications of ARM Octa-core 10.1 inch Android 12 (GMS) Vehicle-mount Tablet : ONERugged V10T

Basic parameters
Dimension	264.5184.123.0 mm
Weight	TBD
Product Color	Black
LCD	10.1 inch, 800*1280, 700nits
Touch Panel	5-point tempered glass capacitive screen G+G
I/O	SIM card slot MICRO-SIM x 1 Standard USB-A port / Data transmission Power interface PORT1（M12-12）（optional） 100M network port, PORT2（M12-12）（optional） RS232 1+RS232/RS485（standard） 1 PORT3（M12-12）（optional） USB 2.0 1+USB 2.0 (Default) / CAN1 +CVBS1 USB2.0 standard interface 2; Optional CAN for customer debugging"
NFC	Optional, 13.56MHz, Card reading distance: 4cm
Performance parameter
CPU	ARM Octa-core CPU
OS	Android 12（GMS)
RAM	4GB, Optional 2GB, Up to 8GB
Storage	64GB, Optional 32GB, Up to 128GB
Standard Accessories
WIFI Antenna	Standard, 2.4~2.5GHz/5.15~5.85GHz, 2±0.5dBi
GPS antenna( mushroom shape)	Standard
Adapter Cable	Standard, 8 PIN aviation plug to φ5.5 power port
4G Antenna	Standard
Optional Accessories
Bracket	Optional
Function Adapter	Optional, 12PIN to USB 2.0 1+CAN1+USB 2.0 (default)/CVBS*1 12P IN to full function RS232 + RS485/R232 12PIN to 100M RJ45 (with LED) 12PIN to 12 loose wires 1.2m
GPS Antenna	Optional
Power (One out of three)	Power adapter, 12V4A DC φ4.0 Adapter Adapter Cable, 8pin power cord to 4 loose wires (1.2M) Wide Voltage, 9~36V wide voltage input 12V±0.5V constant voltage output
Reliability
Operate Temperature	-20 °C ~ 60 °C
Store Temperature	-30 °C ~ 70 °C
Humidity	95% Non-Condensing
Rugged Feature	IP65 certified
Electrostatic Discharge	±8kV contact discharge, ±15kV air discharge
Battery (Optional)
Capacity	2000mAh/3.7V
Type	Built-in Li-polymer battery
Endurance	30mins ( 50% volume sounds, 200 lumens brightness, 1080P HD video display by default )
