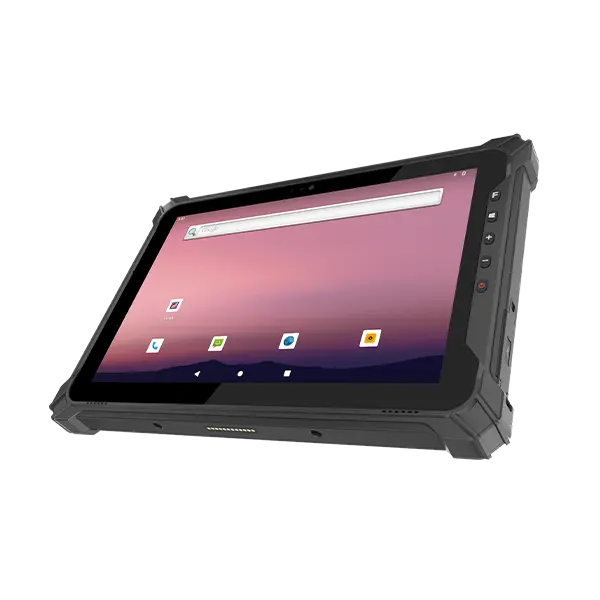

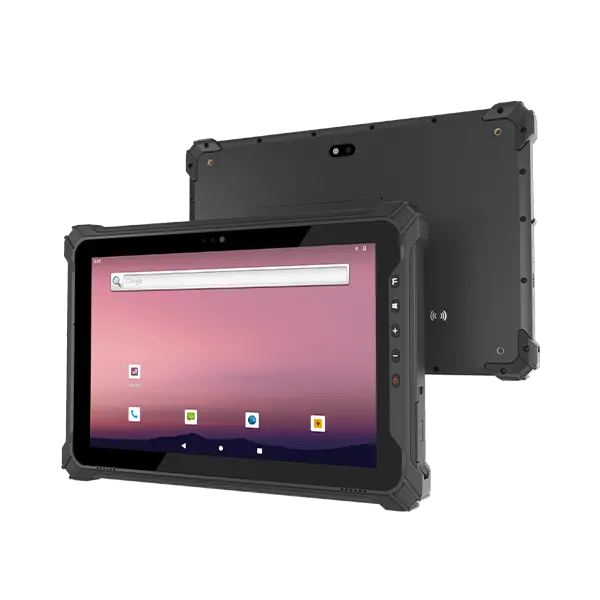

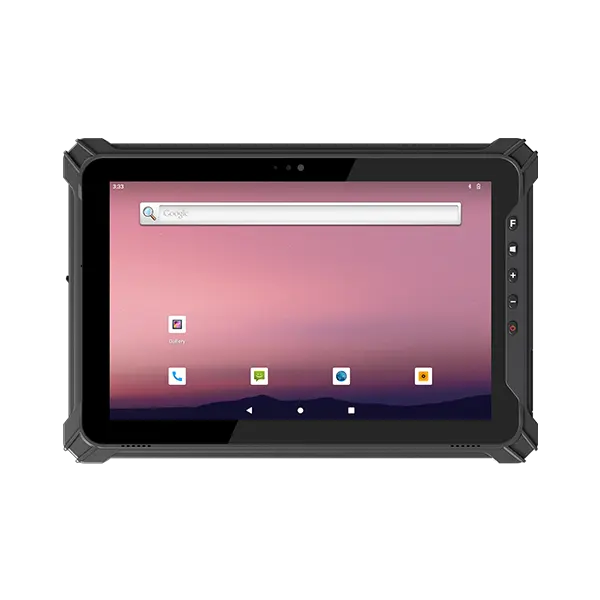

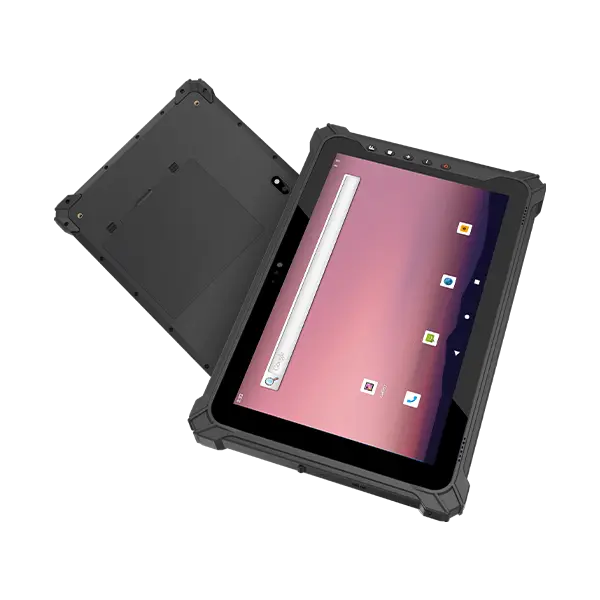

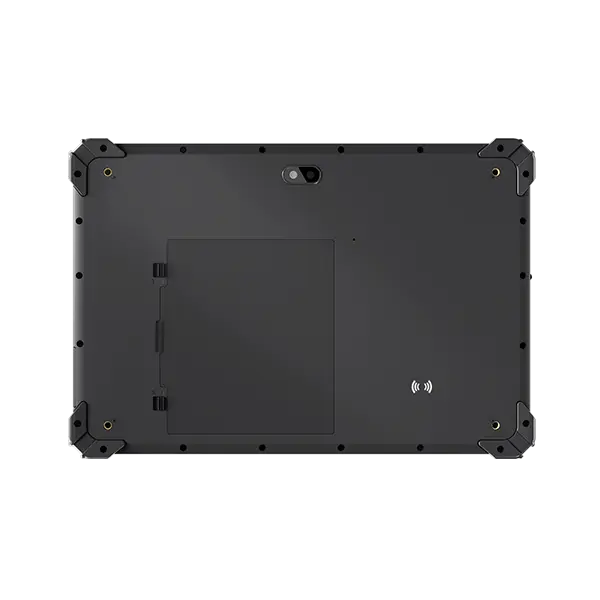

ARM (OCTA Core) 10.1 Inch Long-endurance GMS Android Rugged Tablet EM-T17X

·Android 12/GMS OS and 8GB RAM+128GB storage

·10.1 inch IPS screen, 1920x1200 TFT

·10-point capacitive touch

·Enhanced rugged corners withstand shock and impact

·IP65 Waterproof and Dustproof, MIL-STD-810H certified

·Removable 10000mAh battery & New battery-free working mode

·Front 5.0MP + Rear 13.0MP, autofocus with flashlight

·Symmetric speakers. More immersive, more clear.

·User-friendly buttons designed for efficient action

·Extension interface (3 choose 1, RJ45, RS232, USB Type-A)

·Upgrade BT 5.2, fast and more stable

·Optional high performance 2D imager designed to data capture

5
2
1
4
3
Android Android
ip65 ip65
gps gps
high capacity high capacity
bluetooth bluetooth
camera camera
3g4g 3g4g
wifi wifi
2d 2d
nfc nfc


Six views of ARM (OCTA Core) 10.1 Inch Long-endurance GMS Android Rugged Tablet PC EM-T17X




Specifications of ARM (OCTA Core) 10.1 Inch Long-endurance GMS Android Rugged Tablet PC EM-T17X

Basic parameters   Battery
Dimension  274.9 x 188.7 x 23.1mm   Capacity  10000mAh/3.8V
Weight  device unit 1140g   Type  Removable Li-polymer battery
Device Color  black   Endurance  9hrs ( 50% volume sounds, 50% screen brightness,
1080P HD video display by default )
LCD  10.1 inch TFT 16:10, 1920×1200, 700nits    Network connections
Touch Panel  10 point capacitive touch screen
     WIFI                             802.11 a/b/g/n/ac (2.4G/5.8G)
Camera  Front 5.0MP Rear 13.0MP
   Bluetooth  BT5.2
Transmission distance: 10m
I/O  USB 2.0 Type-A x 1,
USB Type-C x 1,
SIM Card x 2, TF Card (Three in one card holder),
12PIN Pogo Pin x 1,
Φ3.5mm standard earphone jack x 1
   4G
    LTE FDD: B1/B2/B3/B4/B5/B7/B8/B17/B20/B28A/B28B,
WCDMA: B1/B2/B5/B8,GSM: B2/B3/B5/B8,LTE-TDD:
B38/B39/B40/B41
Extension
interface
(3 choose 1)
  RJ45 (10/100M) x 1 (standard),
DB9 (RS232) x 1,
USB 2.0 Type-A x 1
   GNSS  Support, GPS, Glonass, Beidou
   Reliability
Power   USB Type-C interface, supports fast charging PE+2.0,
maximum power of 18W, maximum 9V/2A
    Operate
Temperature
   -20 °C ~ 60 °C
Performance parameter    Store
Temperature
  -30 °C ~ 70 °C
   Humidity  95% Non-Condensing
CPU  ARM (OCTA Core)
    Rugged
Feature
  IP65 certified, MIL-STD-810H certified
OS  Android 12/GMS
   Drop Height  1.22m drop
RAM  8GB
   Data Collection
Storage  128GB

   2D  Optional
    NFC   13.56MHz,
Support ISO/IEC 14443A/B/15693/18092/mifare protocols
Card reading distance: 4cm


* Please be aware all technical data, specification and performance figures subject to change without notice.


Accessories of ARM (OCTA Core) 10.1 Inch Long-endurance GMS Android Rugged Tablet PC EM-T17X

Various modules and accessories can be selected to meet customers' application in various industries.


docking charger
docking charger

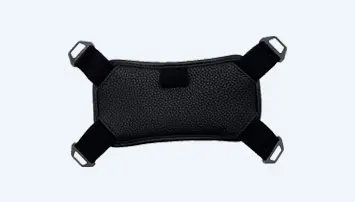

hand strap
hand strap
removable battery
removable battery
fast charging adapter
fast charging adapter
vehicle mount
vehicle mount

Application Range of ARM (OCTA Core) 10.1 Inch Long-endurance GMS Android Rugged Tablet PC EM-T17X

Various modules and accessories can be selected to meet customers' application in various industries.


emdoor surveying mapping industry
emdoor surveying mapping industry
emdoor manufacturing industry
emdoor manufacturing industry
emdoor energy industry
emdoor energy industry
emdoor public industry
emdoor public industry
emdoortrafficindustry220x220
emdoortrafficindustry220x220
emdoor warehouse logistics industry
emdoor warehouse logistics industry
