10.1'' Intel: EM-I16J 10.1-inch Windows Rugged PC

10.1' Windows Rugged Tablet EM-I16J

  • A right size Rugged Tablet with high performance

  • Intel Celeron Quad-core processor with Windows 11

  • 1D/2D barcode scanner/BT5.0/NFC

  • A right size for work, 10.1' widescreen with Hight-Bightness Display is ready for every environment.

  • EM-I16J has rich experience in public safety, utilities and industrial manufacturing applications.

Windows Rugged Tablet
Emdoor Tablet
Emdoor Rugged Tablet
Fully Rugged Tablet
Rugged Tablets for Field Work
Windows Windows
IP65 IP65
GPS GPS
Bluetooth Bluetooth
1D 1D
2D 2D
3G,4G 3G,4G
WiFi WiFi
camera camera

Features of 10.1'' Intel Tablet EM-I16J Rugged PC


  • Support for Windows 11 system

  • Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes

  • 5000mAh battery,  pluggable battery, 6-8 hours of machine endurance

  • IP65 high protection level, in accordance with MIL-STD-810G

  • Support GPS, more accurate positioning

  • Support 8 million pixel autofocus camera, easy to collect images and video information

  • Support 1D/2D, ID card and other functional modules for free selection

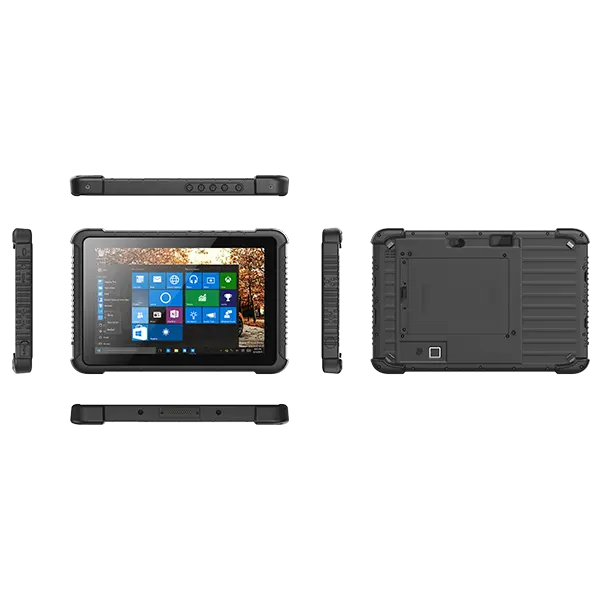

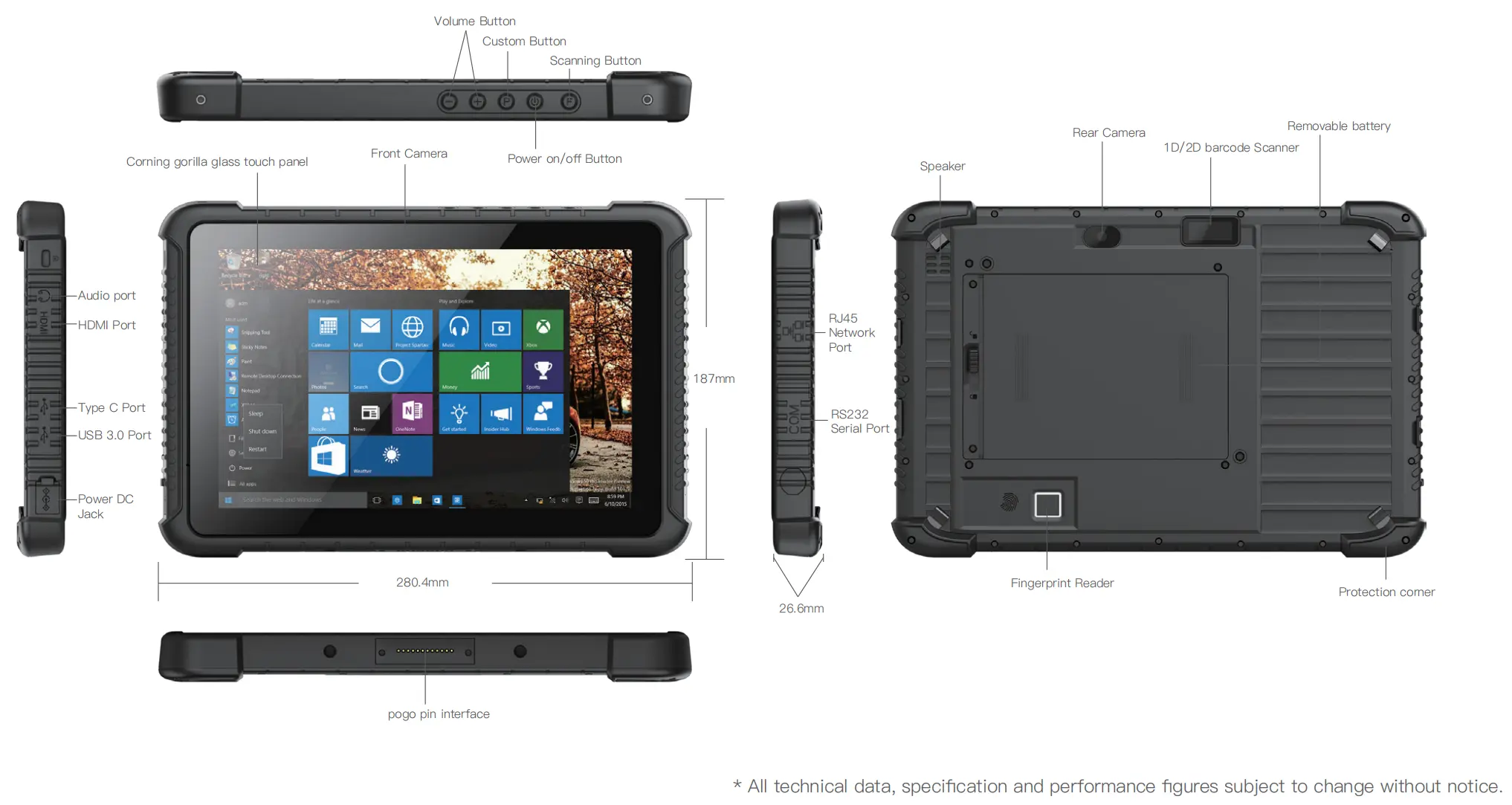

Six Views of 10.1'' Intel Tablet EM-I16J Rugged PC


10.1'' Intel Tablet EM-I16J Rugged PC



Specifications of 10.1'' Intel Tablet EM-I16J Rugged PC


TypeDetailsStandard ConfigurationOptional
Product FormTypeRugged TabletNA
Dimension280.4*187*26.6mm NA
WeightTBDNA
Device ColorBlack(Front and Rear Panel: Black,Decorate Board:Black),PC+TPUNA
LCDScreen Size10.1 inch   16:10NA
Resolution1200×1920 NA
Brightness400 cd/m2NA
TPTouch Panel10 points Capacitive,G+G,Rigidity: above 7H-Anti-scratchNA
CameraFrontFront:5.0MPNA
RearRear: 8.0MPNA
SpeakerBuilt-inEmbedded 8Ω/1W waterproof speaker x 1NA
Mic
Sensitivity:-42db, Output resistance:2.2kΩNA
BatteryTypeLithium-ion polymer battery , pluggableNA
Capacity7.4V/5000mAh NA
Endurance6hrs(default 50% volumn,default 200nit,play 1080P HD video)NA
RTCRTCBuilt in RTC clock button batteryNA
System Hardware Configuration
TypeDetailsDescriptionOptional
CPUTypeIntel JASPER LAKE N5100NA
Speed2.80 GHzNA
GPUTypeIntel® HD Graphics Gen 11 LPNA
RAMDDR3L8GB  Optional 4GB
SSDNGFF SSD128GBOptional 64GB, compatible128GB/256GB
G_sensorBuilt-inGravity acceleration sensorNA
Network Connections
TypeDetailsDescriptionOptional
WIFIWIFI ModuleWIFI 802.11(a/b/g/n/ac)  dual frequency 2.4G+5.8G WIFI  intel 9461NA
BluetoothBuilt-inBT5.0 (BLE) class1  transmited distance:10mNA
2G/3G/4GBuilt-inMeiG 750
LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8
Optional, South America or North America module
GPSBuilt-inSupport GPS, GLONASSNA
Data Collection
TypeDetailsDescriptionOptional
1D Barcode ScannerOptionalNAMOTO SE655
2D Barcode ScannerOptionalNAN3680
NFCBuilt-inNANXP300
Interface Configuration
TypeDetailsDescriptionsOptional
TF SlotExtensive External MemorySupport TF   x1    max:512GNA
SIM SlotSIM SlotSIM   x1    NA
USBUSB-AUSB 3.0*1 NA
Type CType C*1 Type C (USB3.0/HDMI/charge)   NA
DC JackPower19V3.42A ∮4.0mm Power connector  x1NA
Earphone JackAudio Output∮3.5mm Standard Earphone Jack  x1NA
HDMI JackAudio&Video OutputHDMI 1.4a Type C  x1NA
Extensive SlotPogo Pin12pin  Pogo Pin   x1NA
DB9 PORTUART Serial port*1 (RS232) TTL Electrical LevelNA
RJ45 PORTInternet port*1(10/100/1000M Self-adaption)NA
Key
TypeDetailsDescriptionsOptional
Scan keyQR code scanningF key*1When there is no scanning function, it can be customized
HOME keyQuick returnP key*1When there is no scanning function, it can be customized
Volume buttonModulationVolume+ x1, volume- x1NA
Power buttonSwitch on/offpower key x1NA
Reserved interface
TypeDetailsDescriptionsOptional
USBReserved interfaceUSB*1reform
Serial portReserved interfaceSerial port*1reform
Indicator light
TypeDetailsDescriptionsOptional
Charging indicatorCharging indicatorRed indicator*1NA
Standard accessories
TypeDetailsDescriptionsOptional
OTG lineStandard*1NA
USB lineStandard*1NA
power adapterStandard19V 3.42A power adapter(EU,US,CN,UK, One out of four)NA
Carry handleStandardYESNA
Back-strapOptionalNA
Car ChargeOptionalOptional19V3.42A ∮4.0mm TPYE-C
Vehicle MountOptionalOptional19V3.42A ∮4.0mm Power interface
Shoulder-strapOptionalNA
StylusOptionalGT930
Product Certificate
TypeDetailsDescriptionsOptional
Certificate SystemIP65IP65 Report:Water Resistance:IP-X5,Dust Resistance:P-6X  Report ID no.:SET2015-07677
a.Inner Nozzle Diameter:6.3mm;   b. Water Speed:12.5±0.625L/min;
c. Water Pressure:Adjust according to water volumn;
d.Central part of water volumn :A round with a diameter of about 40mm at the distance from the nozzle 2.5m.
e.Spray time in surface of panele: About 1 min/Square meter;f.Test time:at least 3min;
g.Distance between nozzle and panel surface:2.5~3m。
After test,there is no water leakage in sample.
NA
CE-NBYESNA
MIL-STD-810GYESNA
CCCYESNA
BatteryUN3803,MSDS,IEC62133,Aviation, Ocean shipping reportsNA
Reliability
TypeDetailsDescriptionsOptional
Product ReliabilityDrop Height1.2m drop
Operate Temperature‘-20 °C to 60 °C
Store Temperature’-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing



Accessories of 10.1'' Intel Tablet EM-I16J Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.


Hand-strap
Hand-strap
Back-Straps
Back-Straps
Car Charge
Car Charge
Vehicle Mount
Vehicle Mount
Docking Charger
Docking Charger
Battery
Battery
Shoulder-strap
Shoulder-strap
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Carry Handle
Carry Handle

Application Range of 10.1'' Intel Tablet EM-I16J Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.


Surveying & Mapping Industry
Surveying & Mapping Industry
Manufacturing Industry
Manufacturing Industry
Energy Industry
Energy Industry
Public Industry
Public Industry
Traffic Industry
Traffic Industry
Warehouse & Logistics Industry
Warehouse & Logistics Industry
