Intel i5/i7 10.1 inch Windows 11 Touch Screen Rugged Tablet PC EM-I10A IP65 Waterproof

• Intel Core i5-1235U/i7-1255U processor

• Windows 11 OS and 8GB RAM+128GB storage

• 10.1 inch IPS Full HD screen with 10-point capacitive touch

• 2.4G/5.8G Dual band WIFI 6 & High speed 4G LTE

• BT 5.1 fast transmission

• IP65 Waterproof and Dustproof, Anti-Static

• 1.22m drop resistant & MIL-STD-810G certified

• Support GPS, BDS and GLONASS

• Choose 1 from 4 modules (2D scan engine, RJ45 Gigabit Ethernet, DB9 and USB2.0 )

rugged tablet i5
Industrial Rugged Tablet PC I7/I5
Industrial Rugged Tablet PC I7/I5
rugged tablet pc price
rugged tablet pc price
ip65 ip65
gps gps
nfc nfc
2d 2d
4g 4g
wifi wifi
bluetooth bluetooth
windows windows
high capacity high capacity
camera camera

Features of 10.1 inch EM-I10A Industrial Rugged Tablet PC I7/I5 Windows 11

Second-to-none Performance

The forerunner 10.1” fully rugged tablet in the market that runs windows 11 HOME(PRO&LOT)on the latest 12th Generation Intel® Core™ i5-1235U/ i7-1255U Processor(12M Cache, up to 4.40/4.70 GHz)delivers paramount performance with strong processing power for your utmost user experience.


Store all your needs

Up to 128GB of PCIe SSD storage offers all the room and speed for data-intensive applications. SSD supports both PCIe and SATA connection, foolproof design, just to remove and insert for upgrade. Expandable up to 512GB maximum.


700 nits Sunlight-Readable

I10A delivers bright, beautiful graphics on its 10.1-inch capacitive screen, designed with a 700nits higher brightness display making the I10A tablet sunlight visible with better user experience, especially for outdoor uses. The 8MP rear camera delivers excellent photos and video capture.

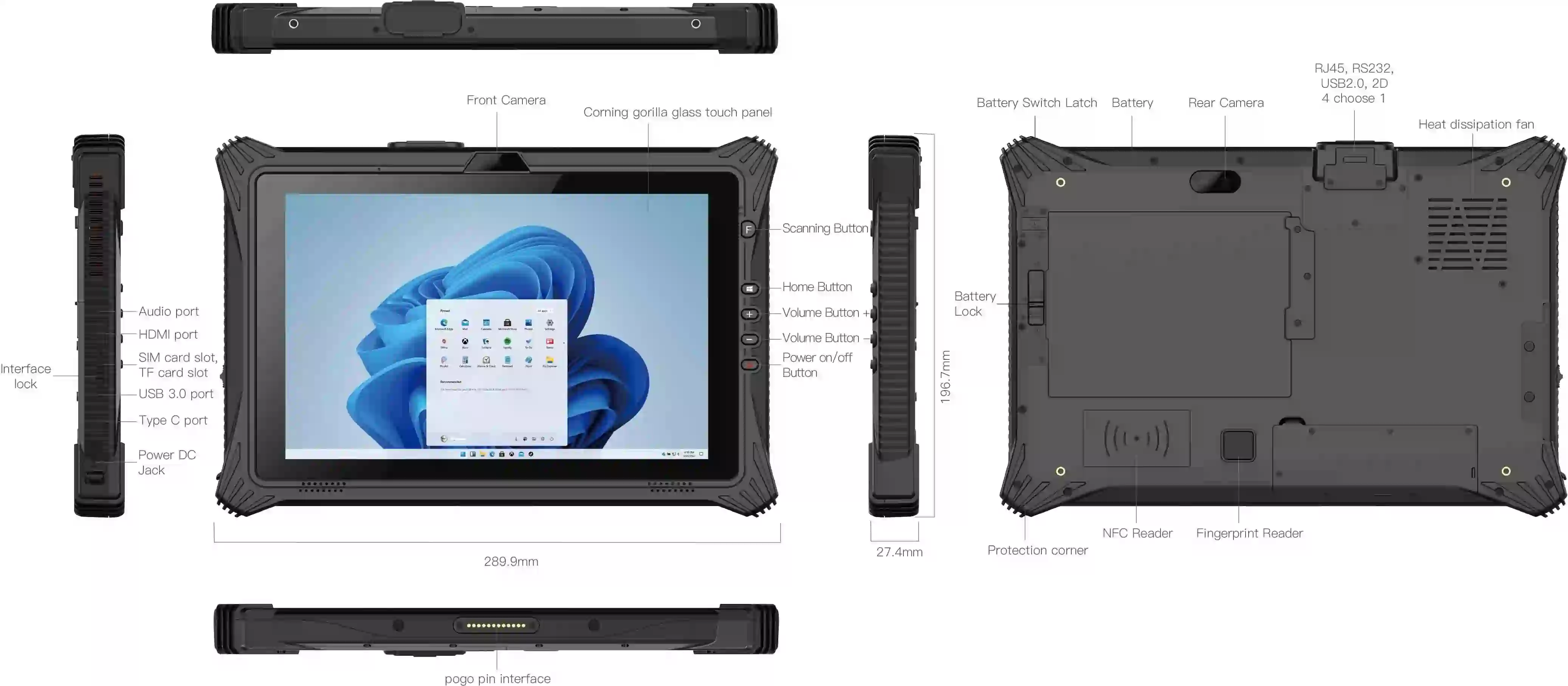

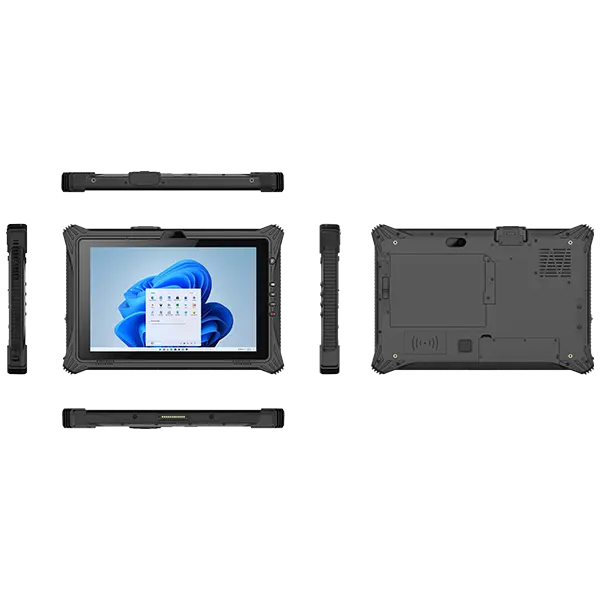

Six views of 10.1 inch EM-I10A Industrial Rugged Tablet PC I7/I5 Windows 11




Specifications of 10.1 inch EM-I10A Industrial Rugged Tablet PC I7/I5 Windows 11

Basic parameters
Dimension289.9 x 196.7 x 27.4mm
Weightdevice unit: 1140g
Product Colorblack
LCD10.1 inch LCD 16:10, 1200×1920, 700nits
Touch Panel10 point G+G capacitive touch screen
CameraFront 2.0MP Rear 8.0MP
I/O

USB 3.0 Type-A x 1, USB Type-C x 1,

SIM Card x 1, TF Card x 1,

HDMI 1.4a x 1,

12pins Pogo Pin x 1,

Φ3.5mm standard earphone jack x 1,

Φ5.5mm DC jack x 1

PowerAC100V ~ 240V, 50Hz/60Hz, Output DC 19V/3.42A
NFC Optional
FingerprintSPI fingerprint (power on login)
Performance parameter
CPUIntel Core i5-1235U/i7-1255U
OSWindows 11, Optional Rugged Tablet Windows 10
RAM16GB
Storage128GB
Network connections
WIFIWi-Fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax (2.4G/5.8G)
Bluetooth

BT5.1

4G (Optional)

LTE FDD: B1/B3/B7/B8/B20/B28A

WCDMA: B1/B8

GSM: B3/B8

GNSSBuilt-in GPS, Glonass, Optional Beidou
Reliability
Operate Temperature-20 °C ~ 60 °C
Store Temperature-30 °C ~ 70 °C
Humidity95% Non-Condensing
Rugged FeatureIP65 certified, MIL-STD-810G certified
Drop Height1.22m drop
Electrostatic Discharge± 8kV contact discharge, ± 15kV air discharge
Battery 1
Capacity7.4V/700mAh
TypeBuilt-in Li-polymer battery
Endurance

30mins ( 50% volume sounds, 200 lumens brightness, 1080P HD video display by default )

Battery 2
Capacity7.4V/5000mAh
TypeRemovable Li-polymer battery
Endurance4.5h ( 50% volume sounds, 200 lumens brightness, 1080P HD video display by default )
Extension modules(1 out of 4)
Ethernet interfaceRJ45 (10/100M) x 1, Support customized (10/100/1000M)
Serial portDB9 (RS232) x 1
USB2.0USB 2.0 x 1
2DOptical resolution: 5mil/ scan speed: 50 times/s


* Please be aware all technical data, specification and performance figures subject to change without notice.


Accessories of 10.1 inch EM-I10A Industrial Rugged Tablet PC I7/I5 Windows 11

Various modules and accessories can be selected to meet customers' application in various industries.


docking charger
docking charger

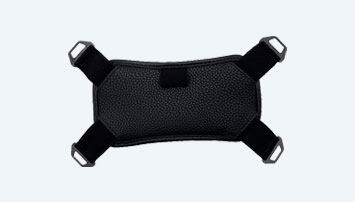

hand strap
hand strap
vehicle mount
vehicle mount
car charge
car charge

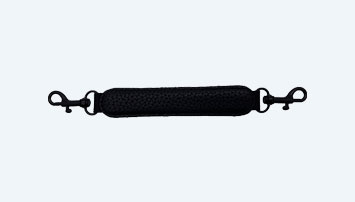

carry handle
carry handle

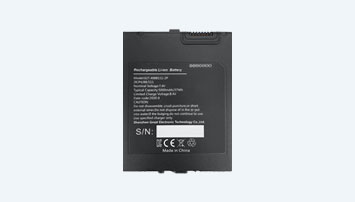

battery
battery

Application Range of 10.1 inch EM-I10A Industrial Rugged Tablet PC I7/I5 Windows 11

Various modules and accessories can be selected to meet customers' application in various industries.


emdoor surveying mapping industry
emdoor surveying mapping industry
emdoor manufacturing industry
emdoor manufacturing industry
emdoor energy industry
emdoor energy industry
emdoor public industry
emdoor public industry
emdoortrafficindustry220x220
emdoortrafficindustry220x220
emdoor warehouse logistics industry
emdoor warehouse logistics industry
