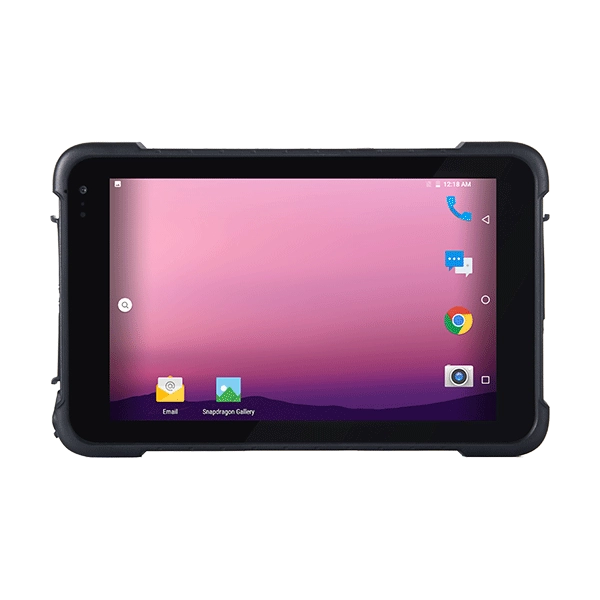

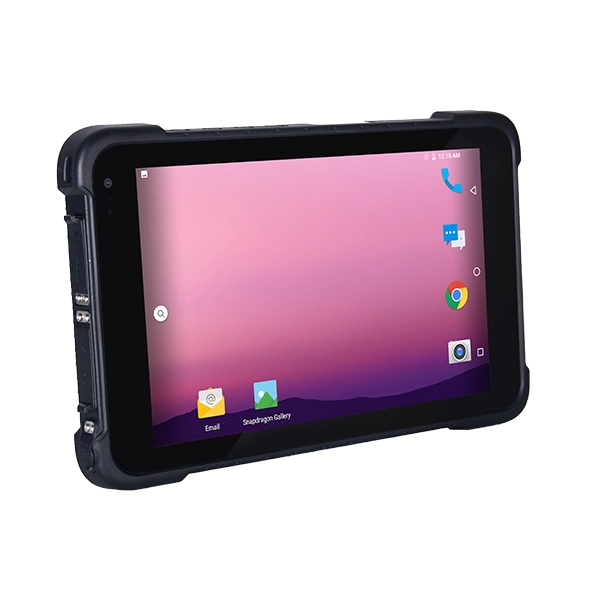

NEW LAUNCH 8'' Android: EM-Q865M Android 11 4G/5G Rugged Tablet

  • Hot sale & High-performance Fully Rugged Tablet

  • Rugged IP67 protective grade for waterproof & dustproof

  • 5G Full Netcom Qualcomn 8 core with Android 11

  • Dual-band Wi-Fi; Wireless Bluetooth;Barecode scanning; NFC

  • Enhance positioning; GPS,BDS,GLONASS and Galileo

  • With 8500mAh massive battery;

  • Abundant ACCESSORIZE to be more convenient.

Android Android
IP67 IP67
High-capacity High-capacity
1D 1D
2D 2D
WiFi WiFi
Bluetooth Bluetooth
5G 5G

Features of 8'' Android Tablet EM-Q865M Rugged PC

  • Support for Android 11 system

  • Optional 4G/5G all network communication, WiFi, Bluetooth and other communication modes

  • 8500mAh battery, 9 hours of machine endurance

  • IP67 high protection level, in accordance with MIL-STD-810G

  • Support GPS L1&L5/Beidou/Glonass/Galileo/NavIC/IRNSS, more accurate positioning

  • Rear 13 million pixel auto focus camera, easy to collect image and video information

  • Support 2D, NFC and other functional modules for free selection

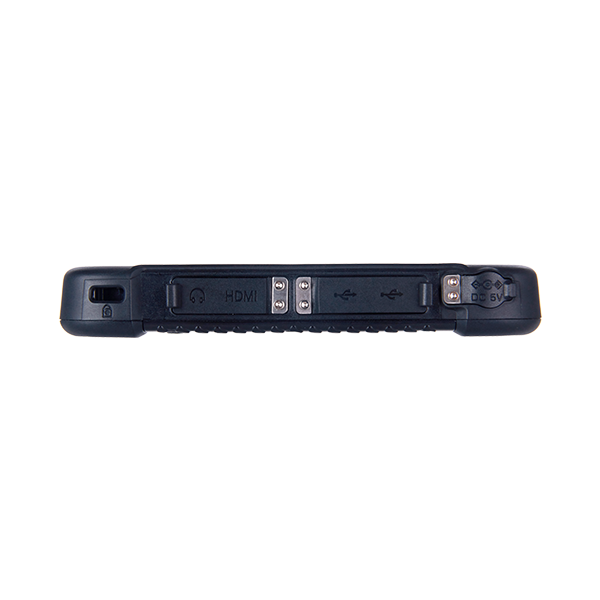

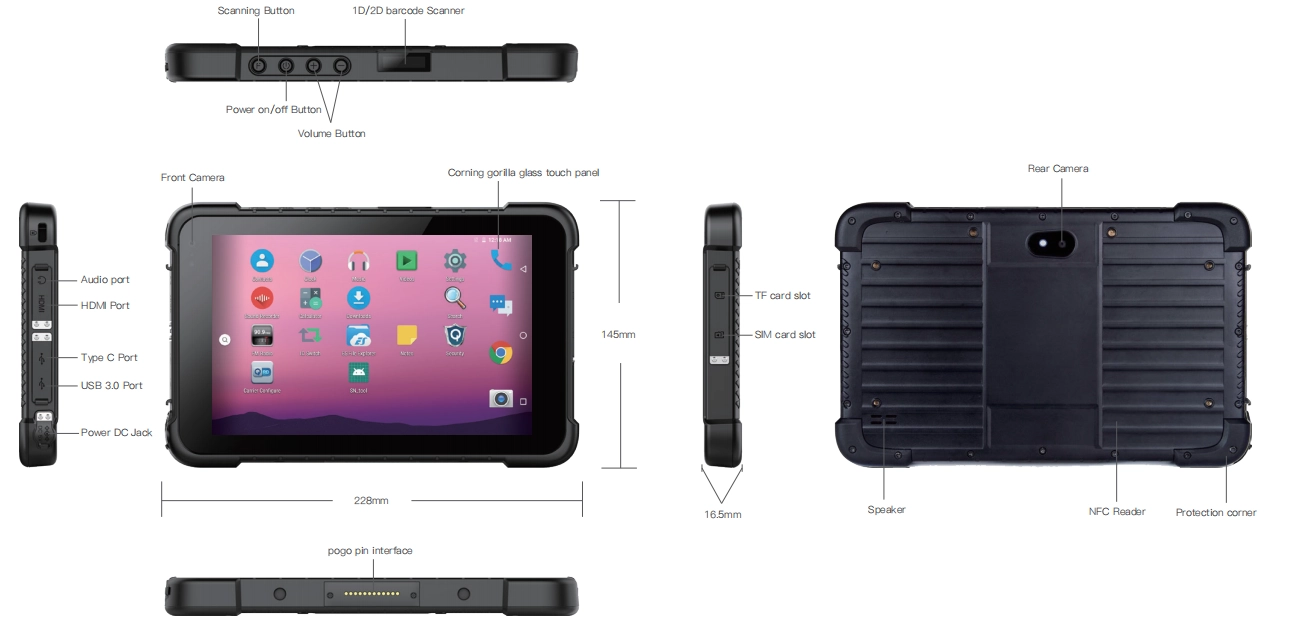

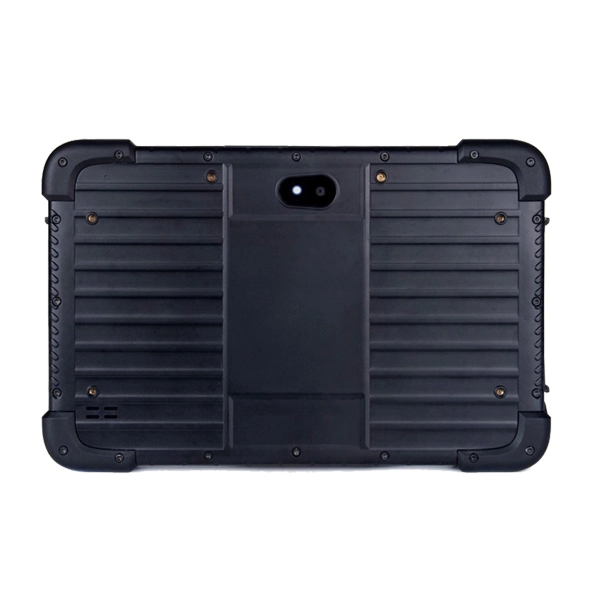

Six Views of 8'' Android Tablet EM-Q865M Rugged PC


Specifications Of 8'' Android Tablet EM-Q865M Rugged PC

TypeDetailsStandard ConfigurationOptional
Product FormTypeRugged TabletNA
WeightDevice unit: 715g  ,Unit with giftbox and standard accessories:1330g,docking:290gNA
Device Colorblack( bottom shell in black, front shell in black)NA
LCDScreen Size8“   16:10NA
Resolution1200*1920 IPS LCDOptional 750cd/m2 brightness screen
TPTouch PanelMultipoints Capacitive,G+G,Rigidity: above 7H-Anti-scratch,support handwritingNA
RearRear: 13MP auto-facus with flashlightNA
Speakerbuild inEmbedded 8Ω/0.8W waterproof speakerx 1NA
Micbuild inSensitivity:-42db, output resistance2.2kΩNA
BatteryTypebuild in polymer li-ion batteryNA
Endurance9Hrs(default 50% volumn,default 50% lumens brightness,play 1080P HD video)NA
System Hardware Configuration
CPUTypeSM6350 Dual-core Cortex-2* A77 2.0GHz & 6* A55 1.7GHzNA
GPUTypeAdreno GPU 619NA
Indicator lightbuild inIndicator light of charge, red light will flash when device has low power. red long light when charging, green long light when full powerNA
L-SensorBuilt-inlight Sensor *1NA
CompassBuilt-inCompass  Sensor *1NA
Gyro SensorBuilt-inGyro Sensor *1NA
G_sensorBuilt-inG_sensor *1NA
NFCBuilt-inSupport 14443A protocol under ISO / IEC, Card reading distance: 3-5cmNA
Network Connections
WIFIWIFI moduleWIFI 802.11(b/g/n/ac) Frequency 2.4G+5.8G  dual band WIFINA
Bluetoothbuild inBT5.1 (BLE)NA
2G/3G/4G /5Gbuild in

5G NR: N1/N28/41/78/79

TDD-LTE: B34/38/39/40/41

FDD-LTE: B1/3/5/7/8

WCDMA: B1/5/8

GPSbuild inGPS L1&L5/Beidou/Glonass/Galileo/NavIC/IRNSSNA
Data Collection
2DOPTIONALNAZebra SE4710 Soft decoding
optical resolution:5mil
scan speed:50次/s
support code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
 Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
Interface Configuration
TF slotExtensive External Memorysupport TF   x1    max:256GNA
SIM slotSIM slotSIM  x1NA
USB InterfaceExtend external memory and data transferstandard USB 3.0x1  、   Type C x1(data&charing)NA
Earphone JackAudio Output∮3.5mm standard earphone jack  x1NA
DC JackPowerDC 5V 3A ∮3.5mm Power connector  x1NA
HDMIVideo OutputHDMI 1.4a Type C  x1NA
Extensive Slotpogo Pin12pin  Pogo Pin   x1NA
Standard Accessories
OTG cableOTG cabletype-c OTG cableNA
USB cableUSB cabletype-c cableNA

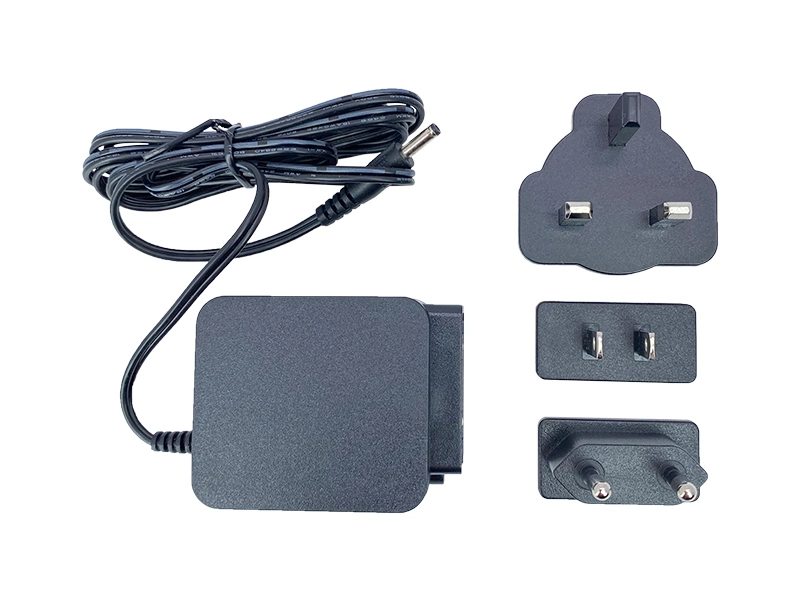

Power AdaptorStandardAC100V ~ 240V、50Hz/60Hz output DC 5V/3A      USA Standard  CE approvalUK standard
EU Standard
Software Configuration
Operation SystemOS versionAndroid 11NA
Product Certificate
Certificate SystemIP67IPX7
Method name:short time submerging test
test device and test condition:submerge water box。the size should make the testing sample into submerge box  and after then , the distance from sample bottom to water surface at least 1m. and distance from sample top side to water surface at least 0.15m.
Testing time: 30 min
IP67 optional
Product ReliabilityDrop HeightMIL-STD-810G 1.22m drop
Operate Temperature‘-20 °C to 55 °C
Store Temperature’-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing

Accessories of Rugged Tablet PC EM-Q865M

Various modules and accessories can be selected to meet customers' application in various industries.

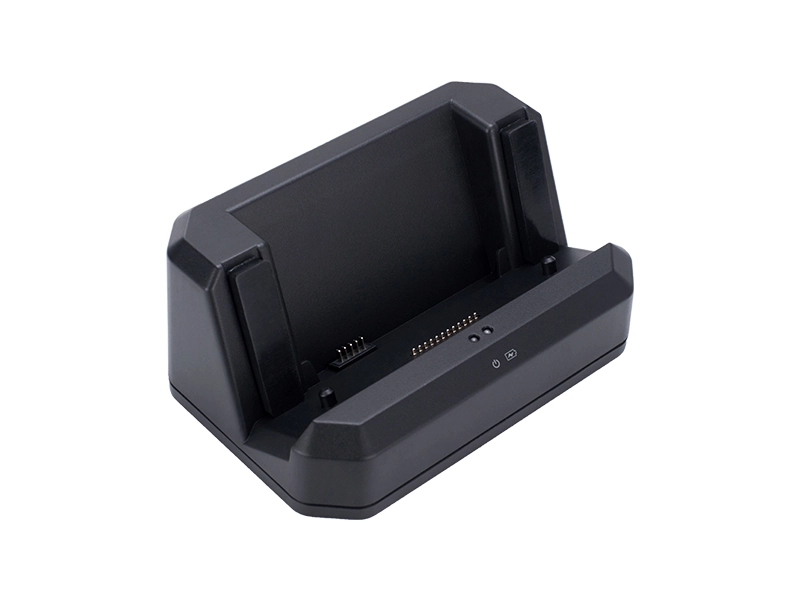

Docking Charger
Docking Charger

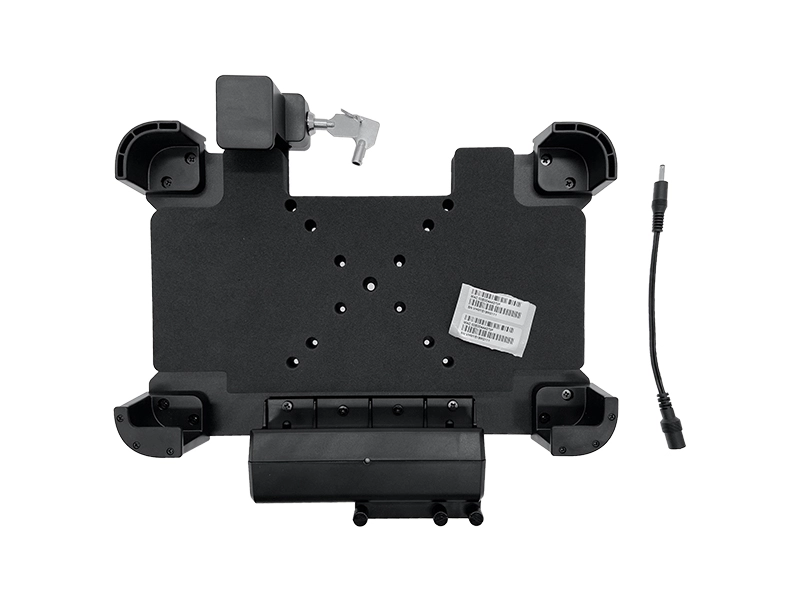

Car brakect
Car brakect

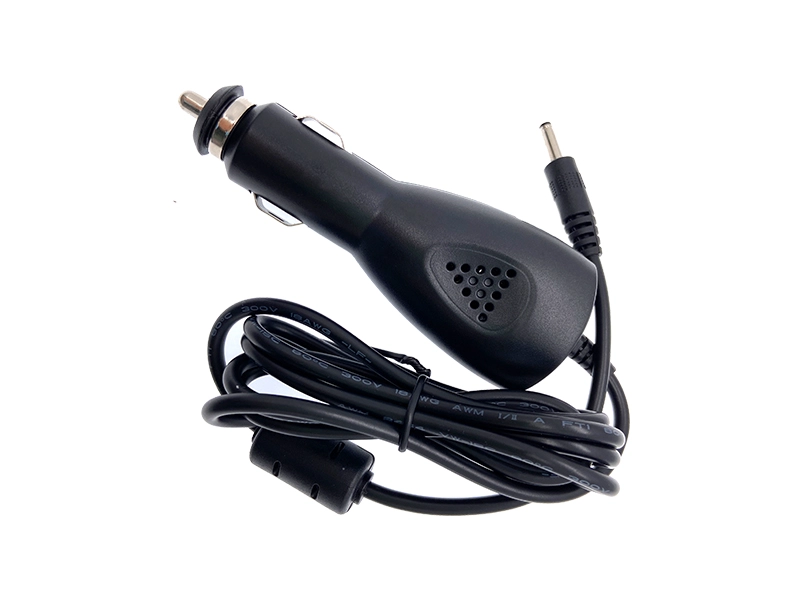

Car charger
Car charger
Leather case
Leather case

Application Range of Rugged Tablet PC EM-Q865M

Various modules and accessories can be selected to meet customers' application in various industries.

Warehouse & Logistics Industry
Warehouse & Logistics Industry
Surveying & Mapping Industry
Surveying & Mapping Industry
Manufacturing Industry
Manufacturing Industry
Energy Industry
Energy Industry
Public Industry
Public Industry
Traffic Industry
Traffic Industry
