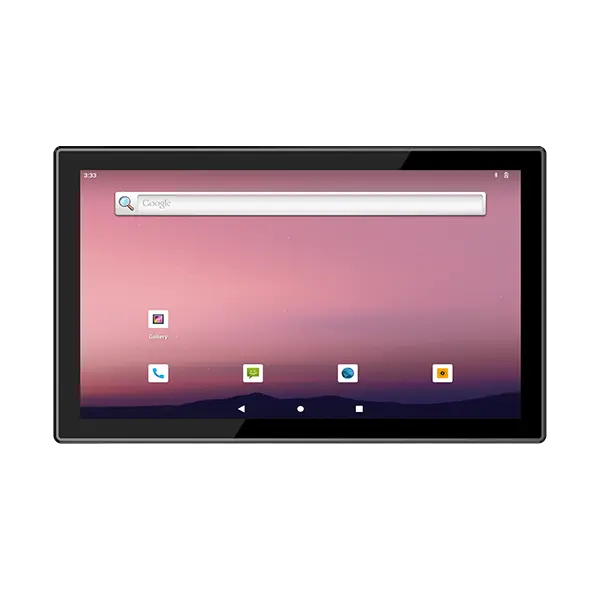

Rockchip RK3568 21.5 inch Android embedded industrial Panel pc P21R

● Equipped with 4-core ARM architecture A55 processor and Android 12 operating system

● 21.5-inch flat capacitive touch panel with high impact resistance

● Fanless design, excellent in heat dissipation and strong stability performance

● Wide voltage and temperature working performance, perfect for 24/7 use in all weather conditions

● Rich interfaces, including multiple USB/RS232/LAN/HDMI and other I/O ports, easily meet various scenario requirements

● Equipped with a M.2 port for point-to-point serial connection, it can expand the 4G communication module, HDD and other peripherals

● Standard PPC mounting hook component, easy to install and supports various installation methods such as embedded and wall-mounted

Industrial Panel PC
Industrial Panel PC
Industrial Panel PC
Industrial Panel PC
Industrial Panel PC
RK3568 Quad core RK3568 Quad core
Android 12 Android 12
21.5 inch 21.5 inch
1920*1080 1920*1080
250cd/㎡ 250cd/㎡
wifi wifi
Running 24/7 without Running 24/7 without
Rich interface extensions Rich interface extensions
storage expansion storage expansion
IP65 IP65

Features of Rockchip RK3568 21.5 inch Android Industrial Panel PC P21R


● Equipped with 4-core ARM architecture A55 processor and Android 12 operating system

● 21.5-inch flat capacitive touch panel with high impact resistance

● Fanless design, excellent in heat dissipation and strong stability performance

● Wide voltage and temperature working performance, perfect for 24/7 use in all weather conditions

● Rich interfaces, including multiple USB/RS232/LAN/HDMI and other I/O ports, easily meet various scenario requirements

● Equipped with a M.2 port for point-to-point serial connection, it can expand the 4G communication module, HDD and other peripherals

● Standard PPC mounting hook component, easy to install and supports various installation methods such as embedded and wall-mounted

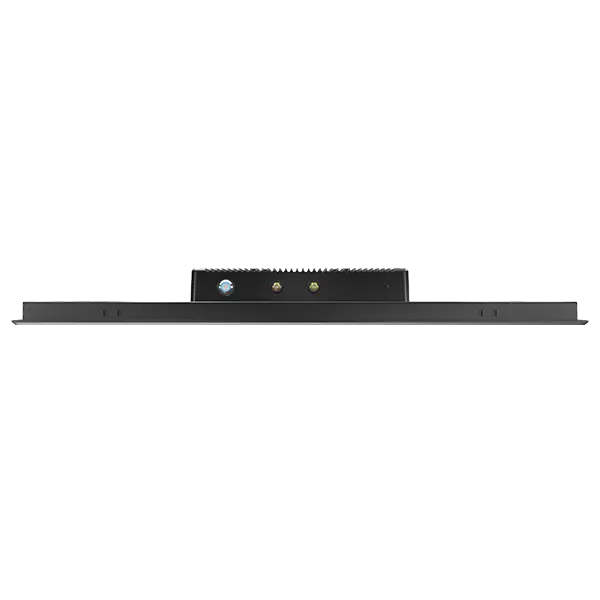

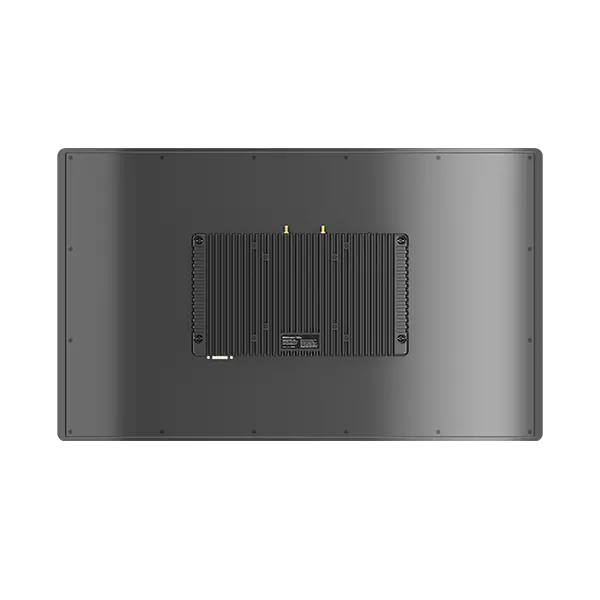

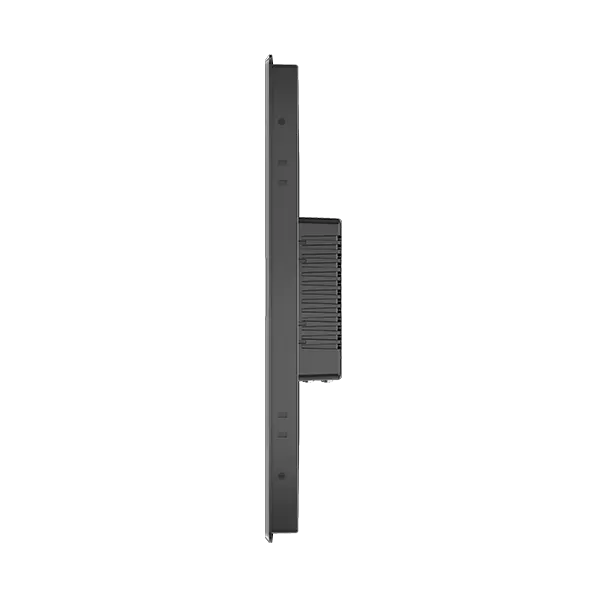

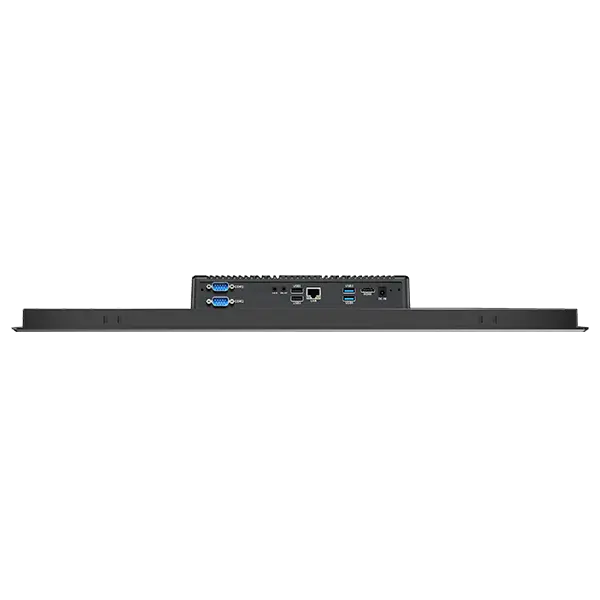

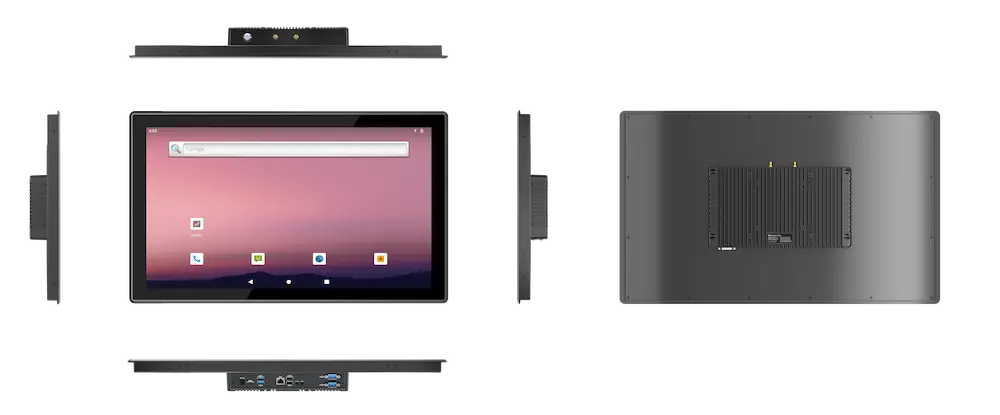

Six Views of Rockchip RK3568 21.5 inch Android Industrial Panel PC P21R



Industrial Panel PC





Specification of Rockchip RK3568 21.5 inch Industrial Panel PC P21R


Industrial Panel PC P21R
Dimension537.02 x 324.02 x 57.60 mm
Weight5.05 kg
Product ColorBlack(Front and Rear Panel: Black,Decorate Board:Black)
CPURK3568 Quad core 64 bit ARM V8.2 Cortex-A55, up to 2.0 GHz
GPUMali-G52-2EE
MemoryRAM 4GB onboard                              ROM  64GB

Operating SystemAndroid 12
DisplayType: LCD
Size: 21.5 inch   16 :9
Resolution:  1920x1080
Brightness:  250 cd/㎡
Touch Pannel10 PCAP
WIFI 802.11a/b/g/n/ac
BluetoothBT5.0
2G/3G/4GOptional:4G
LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8
I/OStandard USB-A
USB3.0*1 ,USB3.0*1 OTG,USB 2.0*2
Power interface
DC IN 12V-24V  Power connector  *1
∮3.5mm Standard Earphone Jack  *1
RJ45 *1  (10M/100M/1000M adaptive)
DB9 PORT RS232 *2
HDMI   *1
Power AdaptorAC100V ~ 240V、50Hz/60Hz output DC 12V/4A
CertificationFrontPanel IP65
Rugged FeaturesWorking temperature: -20 °C to 60 °C
Storage temperature: -30 °C to 70 °C
Humidity: 95% Non-Condensing

*Product specifications, pictures, and other information are for reference only.  The appearance is subject to the material object. This instruction is subject to change without notice.

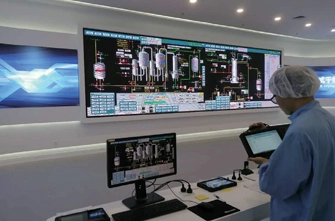

Application Range of 21.5 inch Android Industrial Panel PC P21R

Various modules and accessories can be selected to meet customers' application in various industries.
