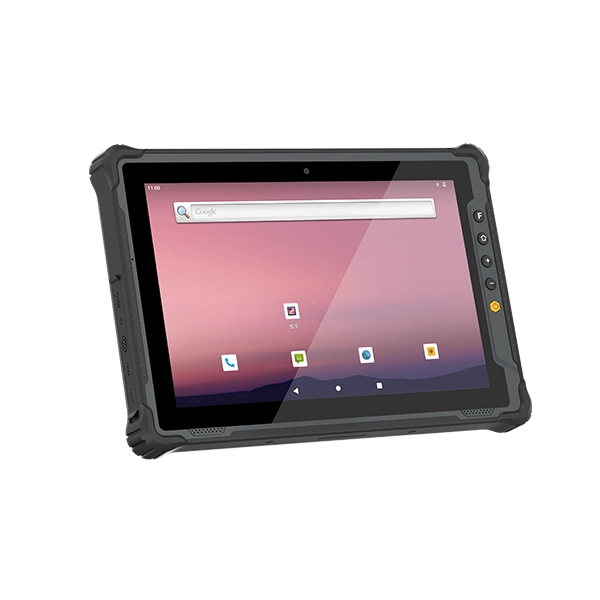

Rockchip3568 Quad-Core 2.0GHz Rugged Tablet Android 10 inch EM-R18

·RK3568 quad-core processor

·Android 12 OS,Maximum 4 GB of LPDDR4 RAM and 64 GB storage(optional)

·10.1 inch IPS screen, supporting 10-point capacitive touch

·Professional 2D scanner and NFC reader

·Support GPS/BeiDou/GLONASS

·High-speed 2G/3G/4G network

·2.4G/5.0G dual-band Wi-Fi & BT5.0 fast transmission

·IP65 Waterproof and Dustproof

·Vibration & 1.2m drop resistant

·MIL-STD-810H certified

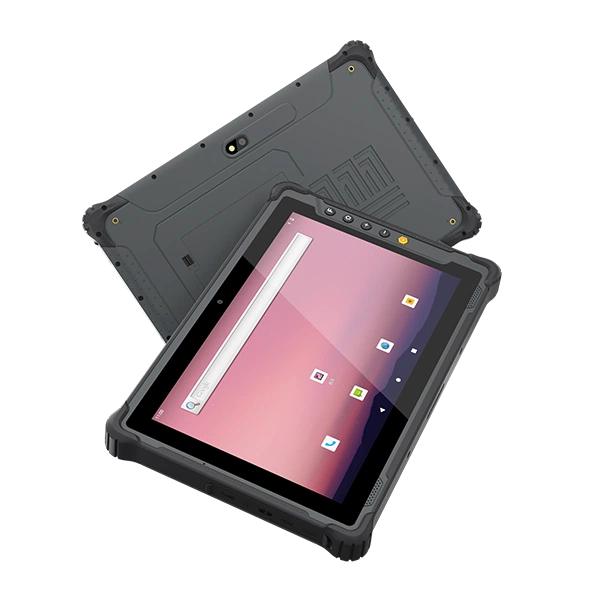

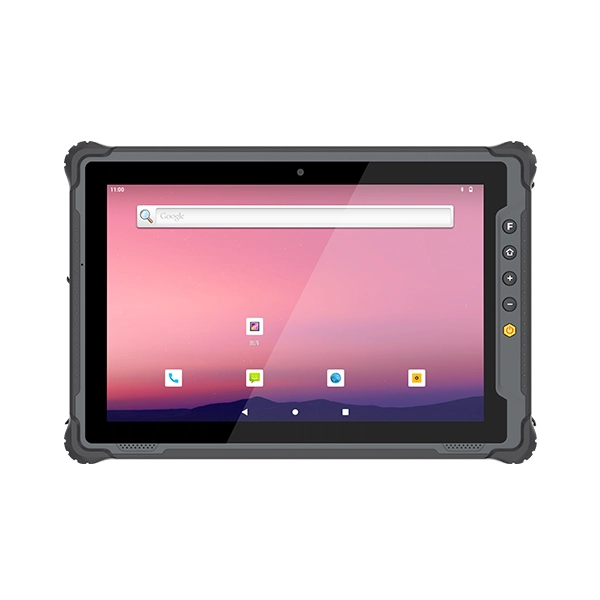

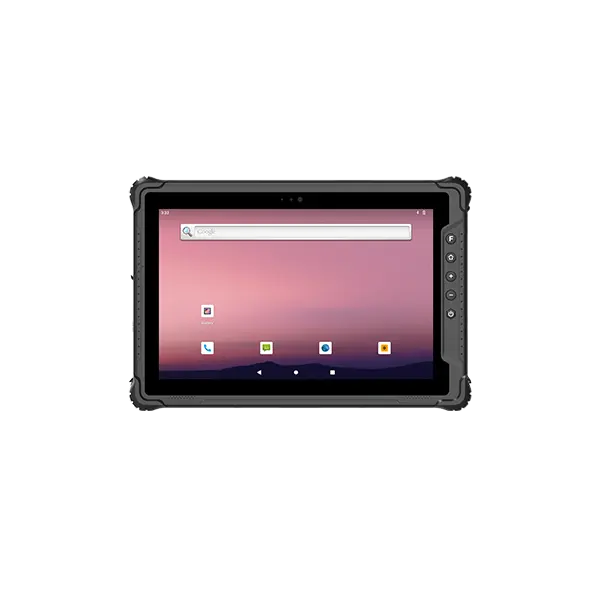

Rugged Tablet Android 10 Inch
Rugged Tablet Android 10 Inch
Rugged Tablet Android 10 Inch
Rugged Tablet Android 10 Inch
Rugged Tablet Android 10 Inch
android android
ip65 ip65
gps gps
dual-battery dual-battery
camera camera
nfc nfc
4g 4g
wifi wifi
bluetooth bluetooth
2D 2D

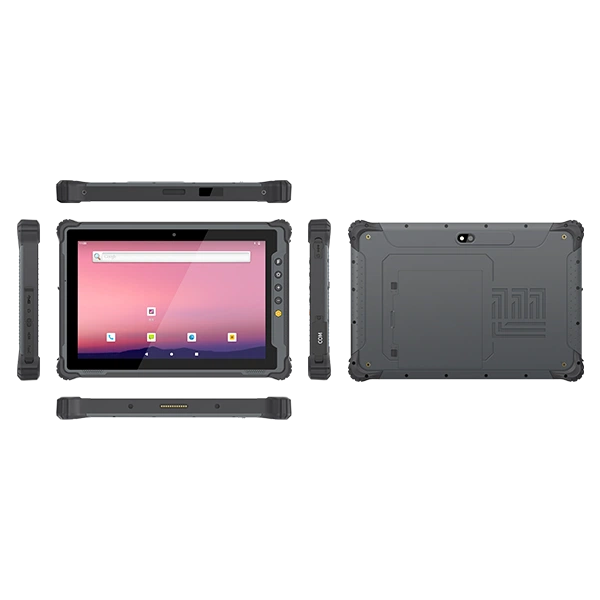

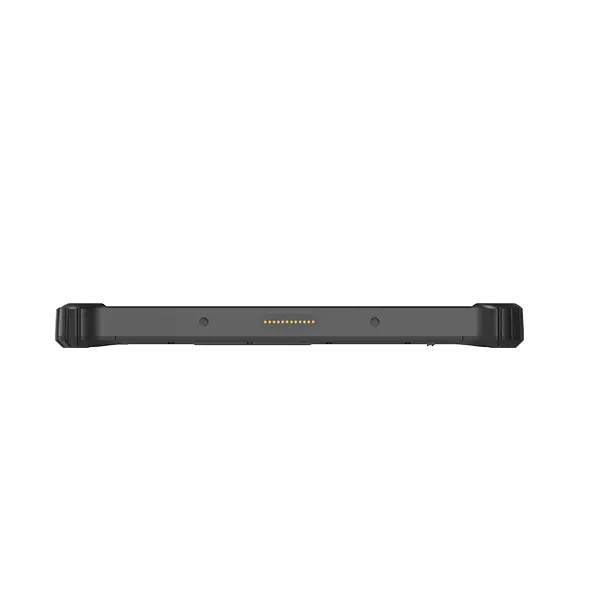

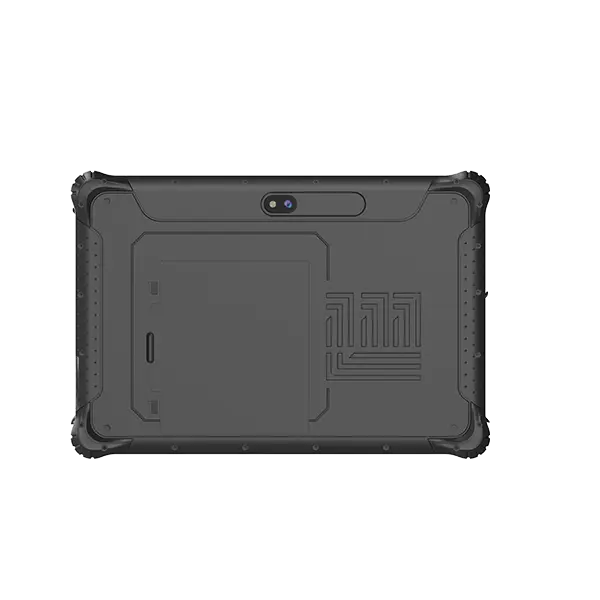

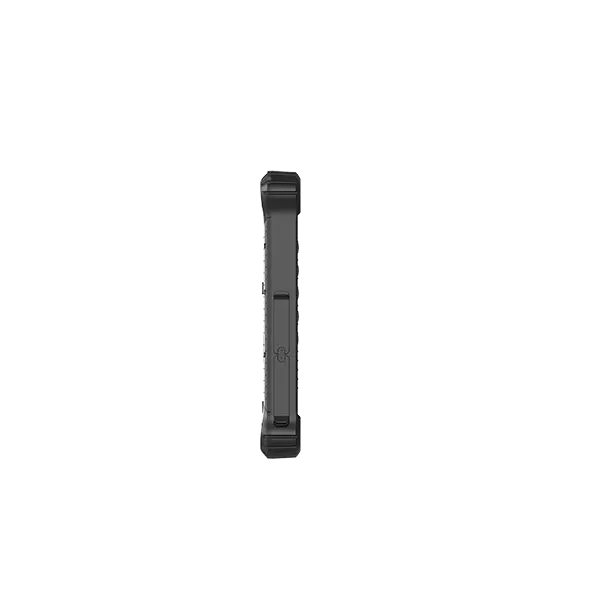

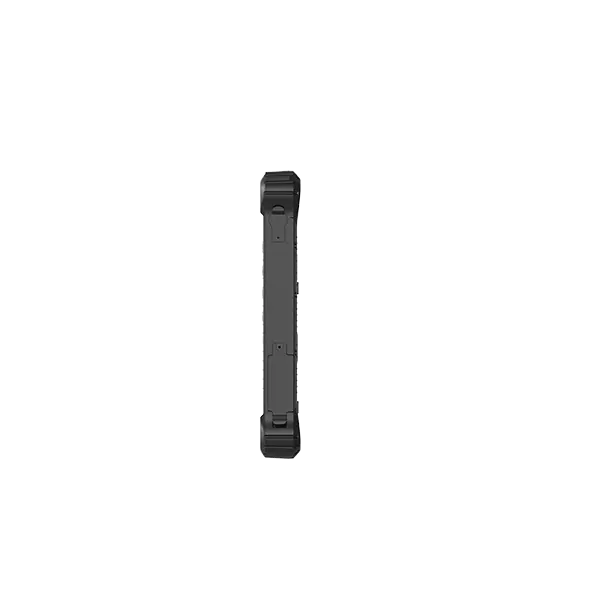

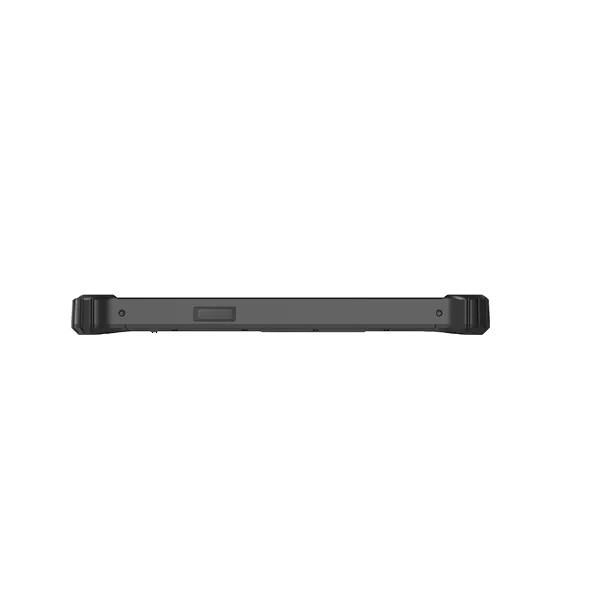

Six views of Rockchip3568 Quad-Core 2.0GHz Rugged Tablet Android 10 Inch EM-R18


Specifications of Rockchip3568 Rockchip3568 Quad-Core 2.0GHz Rugged Tablet Android 10 Inch EM-R18

Basic parameters
Dimension274.9 x 188.7 x 22.2 mm
Net Weight1028 g
Product ColorBlack
LCD10.1  inch IPS 16:10, 800×1280, 700 nits
Touch Panel

10 point G+G capacitive touch screen

I/O

USB 2.0 Type-A x 1, USB Type-C x 1,

SIM Card x 1, TF Card x 1 (MAX 512GB),

Φ3.5mm standard earphone jack x 1,

DC jack x 1,

HDMI x 1,

12pins Pogo Pin x 1

PowerAC100V ~ 240V, 50Hz/60Hz, Output DC 5V/4A
CameraFront 5.0MP Rear 8.0MP
Performance parameter
CPURK3568
OSAndroid 12
RAM4GB
Storage128GB
Data Collection
NFCOptional, 13.56MHz,  Support ISO/IEC 14443A protocol Card reading distance: 4cm
2DOptional, Optical resolution: 5mil/ scan speed: 50 times/s
Network connections
WIFIWiFi 802.11 a/b/g/n/ac (2.4G+5G)
Bluetooth

BT5.0 Transmission distance: 10 m

2G/3G/4G (Optional)

GSM:900/1800 WCDMA:B1/B5/B8  TDD:B40 FDD:B1/B3/B5/B7/B8/B20

GNSS

Support GPS/Galileo/BeiDou (G+G+B)

Reliability
Operate Temperature-20 °C ~ 60 °C
Store Temperature-30 °C ~ 70 °C
Humidity95% Non-Condensing
Rugged FeatureIP65 certified, MIL-STD-810G certified
Drop Height1.22m

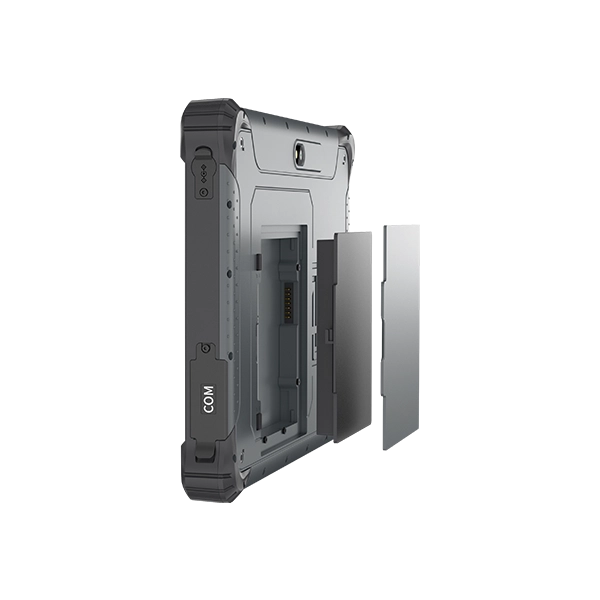

Battery (Optional)
Capacity3.8V/10000mAh
TypeRemovable Li-polymer battery
Endurance

8hrs (50% volume sounds, 50% screen brightness,  1080P HD video display by default)


* Please be aware all technical data, specification and performance figures subject to change without notice.


Features of Rockchip3568 Quad-Core 2.0GHz Rugged Tablet Android 10 Inch EM-R18

Looking for a rugged and reliable tablet that can withstand tough environments? Look no further than the EM-R18, a waterproof Android tablet with GPS that is built to last. This tablet has undergone rigorous MIL-STD-810H testing and boasts an IP65 waterproof rating, making it the perfect choice for those who need a device that can go anywhere. With a tough outer shell and four reinforced corners, the EM-R18 is designed to handle drops and impacts with ease.


The EM-R18 also features a 10.1-inch IPS touchscreen with a resolution of 1200×800 pixels and a high brightness of 700nit. This screen is perfect for viewing maps and other information in bright sunlight. Additionally, the tablet supports a stylus for handwritten notes and drawings input.


Powered by the RK3568 SoC from Rockchip, a Quad Core with ARM Cortex-A55 processors that can reach up to 2.0 Ghz, the EM-R18 has 4 GB of LPDDR4 RAM and 64 GB of high-speed storage memory to handle all your industrial tasks. It also includes a micro SD card reader that can support cards up to 512GB, giving you plenty of storage space for all your files.


If you're looking for a more sustainable choice for your work, the EM-R18 is the perfect solution. With a longer lifespan than consumer devices, it's a durable and reliable choice that won't let you down. Whether you're working in tough environments or just need a tablet that can handle anything, the EM-R18 is the waterproof Android tablet with GPS that you've been looking for.


Accessories of Rockchip3568 Quad-Core 2.0GHz Rugged Tablet Android 10 Inch EM-R18

Various modules and accessories can be selected to meet customers' application in various industries.


Application Range of Rockchip3568 Quad-Core 2.0GHz Rugged Tablet Android 10 Inch EM-R18

Various modules and accessories can be selected to meet customers' application in various industries.


Outdoor Exploration
Outdoor Exploration
Manufacturing
Manufacturing
Industry
Industry
Animal Husbandry
Animal Husbandry
