Rockchip3568 Quad-core 2.0GHz 5 inch Android Handheld PDA EM-R51

• Support for Android 12.0 system

• WiFi, Bluetooth and other communication modes

• Equipped with 4000mAh large capacity battery, the machine has a endurance of 7 hours

• IP65 high protection level, in accordance with MIL-STD-810H

• Support GPS、Beidou, more accurate positioning

• Equipped with 8 million pixel auto focus camera, easy to collect images and video information

• Support 2D and other functional modules to meet the application needs of multiple industries

1 7
6 3
5 8
4 8
3 8

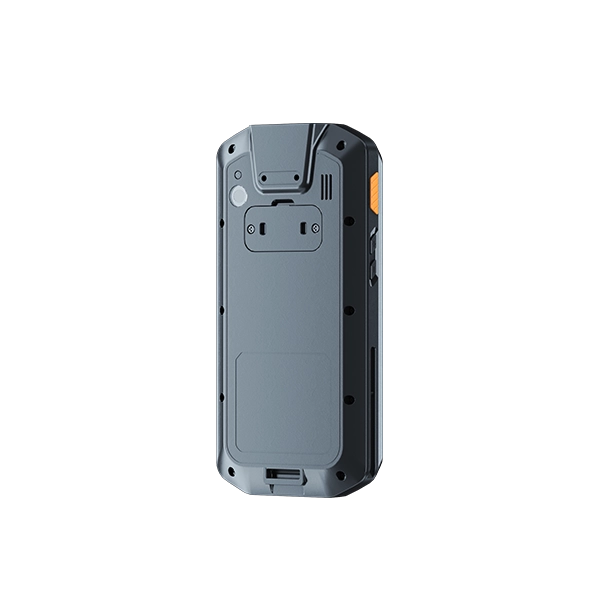

2 7
Android Android
Bluetooth Bluetooth
2D 2D
WiFi WiFi
IP65 IP65
GPS GPS
Camera Camera


Six Views of Rockchip3568 Quad-core 2.0GHz 5 inch Android Handheld PDA EM-R51six_of_view.webp

Specifications of Rockchip3568 Quad-core 2.0GHz 5 inch Android Handheld PDA EM-R51

Basic parameters  Performance parameter
Dimension  147.7 x 74 x 19mm   CPU  RK3568, 2.0GHz
Weight  device unit 220g   OS  Android 12.0
Device Color  black   RAM  4GB
LCD  5 inch IPS 16:9, 1280x720, 330nits   ROM  64GB
Touch Panel  5 point G+F+F capacitive touch screen  Battery
Camera  Rear 8MP, automatic focusing with flash   Capacity  3.85V/4000mAh
I/OType-c 2.0*1  OTG   (Charge and Data
transmission)
∮3.5mm standard earphone jack x1 (US)
TF card *1 , Max: 128GB
POGO PIN 2pin *1 (Base Charging)
    Type   Built-in Lithium-ion polymer battery
   Endurance   7hrs ( 50% volume sounds, 50% screen brightness,
1080P HD video display by default )
  Reliability
Power  AC100V ~ 240V, 50Hz/60Hz, Output DC 5V/2A
Communication   Operate
Temperature
  -10 °C ~ 55 °C
   Store
Temperature
  -20 °C ~ 60 °C
WIFI  WiFi 802.11 a/b/g/n/ac (2.4G+5G)
   Humidity  95% Non-Condensing
Bluetooth  BT5.0
Transmission distance: 10m
   Rugged
Feature
  IP65 certified, MIL-STD-810H certified
GNSS  Support GPS+Beidou   Drop Height   1.22m

   Data Collection
   2D  Standard, Optical resolution:
3mil/scan speed: 75 times/s


* Please be aware all technical data, specification and performance figures subject to change without notice.


Accessories of Rockchip3568 Quad-core 2.0GHz 5 inch Android Handheld PDA EM-R51

Various modules and accessories can be selected to meet customers' application in various industries.

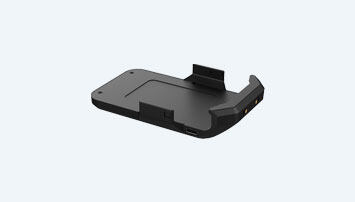

Back Clip Battery
Back Clip Battery

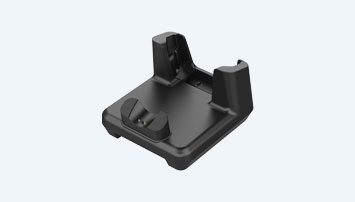

Docking Charger
Docking Charger

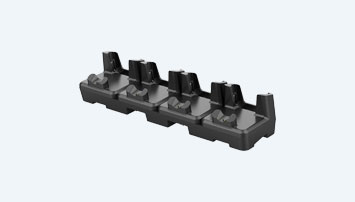

Multiple Charging Dock
Multiple Charging Dock

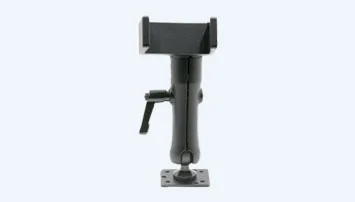

Vehicle Mount
Vehicle Mount

Application Range of Rockchip3568 Quad-core 2.0GHz 5 inch Android Handheld PDA EM-R51

Various modules and accessories can be selected to meet customers' application in various industries.


Warehouse Management
Warehouse Management

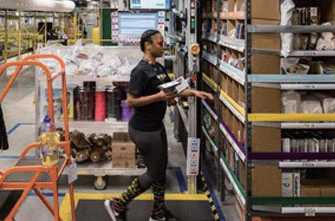

Market
Market

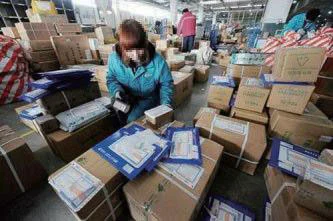

Express Industry
Express Industry
Mobile Payment
Mobile Payment
