● Equipped with Quad-core Intel JASPER LAKE N5100 processor and Ubuntu operating system, up to 4GB+64GB high-speed capacity.

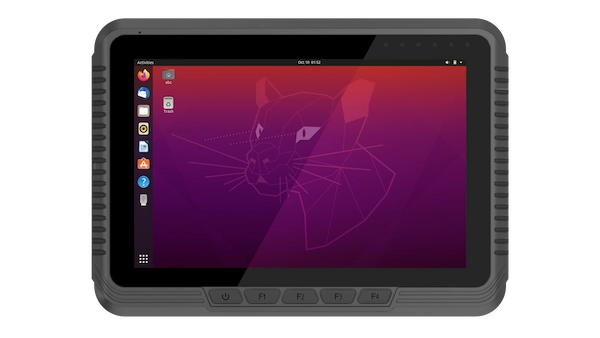

● 8-inch screen with 700-Nits high brightness display, multiple-point touch panel and customized keys , ensuring outdoor worker visibility.

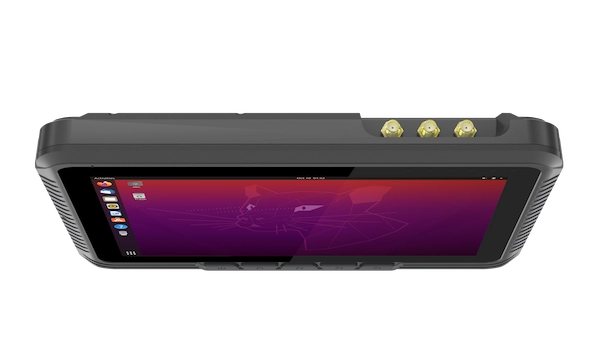

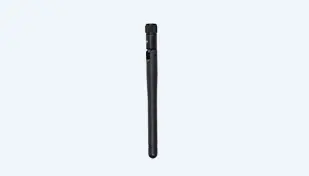

● 4G LTE, dual-band Wi-Fi and Bluetooth 5.0 connectivity. Multi-satellite systems of GPS/Glonass/Beidou, with available vehicle mushroom antenna for real-time tracking to your vehicle and asset management.
● With aviation plug charging interface, switchable for cigarette lighter interface or Φ5.5 power port, and the external 9V-36V DC wide voltage module is optional.
● Supports the battery-free mode, another optional 7.4V/1000mAh capacity battery.
● Available multiple navigation plug interfaces, and also supports USB/DB9/LAN/CAN and other interface extensions.

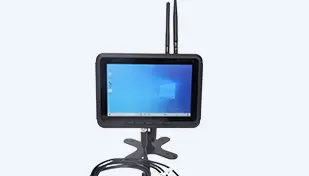

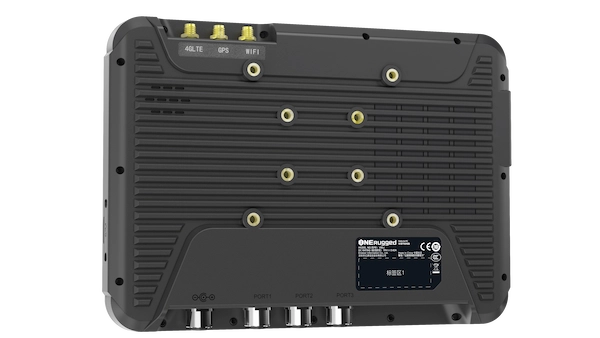

● Two bracket mounting methods, VESA and RAM are suitable for almost any vehicle-mounted workplaces.
● IP65 dustproof and waterproof, morphed to endure outdoor applications prone with shock, vibration and extreme temperature.
Ubuntu-20.4.5
IP65
GPS
BT5.0 (BLE)
4G
WIFI
Battery ● Equipped with Quad-core Intel JASPER LAKE N5100 processor and Ubuntu operating system, up to 4GB+64GB high-speed capacity.
● 8-inch screen with 700-Nits high brightness display, multiple-point touch panel and customized keys , ensuring outdoor worker visibility.
● 4G LTE, dual-band Wi-Fi and Bluetooth 5.0 connectivity. Multi-satellite systems of GPS/Glonass/Beidou, with available vehicle mushroom antenna for real-time tracking to your vehicle and asset management.
● With aviation plug charging interface, switchable for cigarette lighter interface or Φ5.5 power port, and the external 9V-36V DC wide voltage module is optional.
● Supports the battery-free mode, another optional 7.4V/1000mAh capacity battery.
● Available multiple navigation plug interfaces, and also supports USB/DB9/LAN/CAN and other interface extensions.
● Two bracket mounting methods, VESA and RAM are suitable for almost any vehicle-mounted workplaces.
● IP65 dustproof and waterproof, morphed to endure outdoor applications prone with shock, vibration and extreme temperature.
| Basic parameters | |

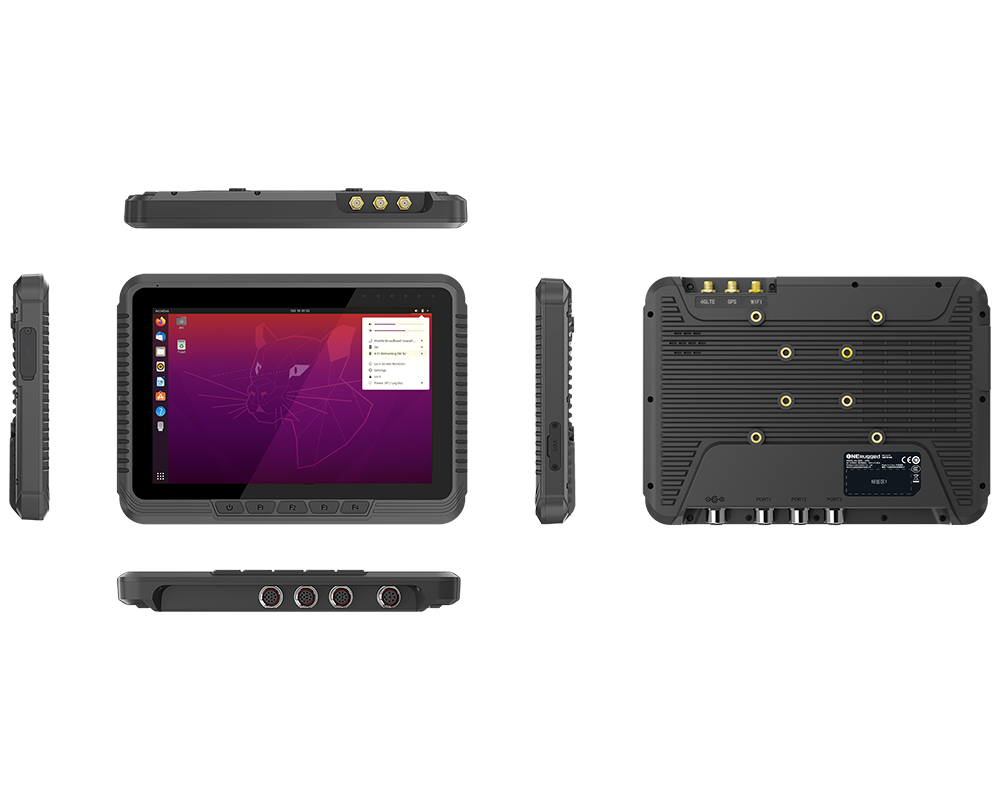

| Dimension | 218.1*154.5*23.0 mm |
| Weight | 631g |
| Product Color | black |
| LCD | Size: 8 inch 16:10 Resolution: 800*1280 IPSS |

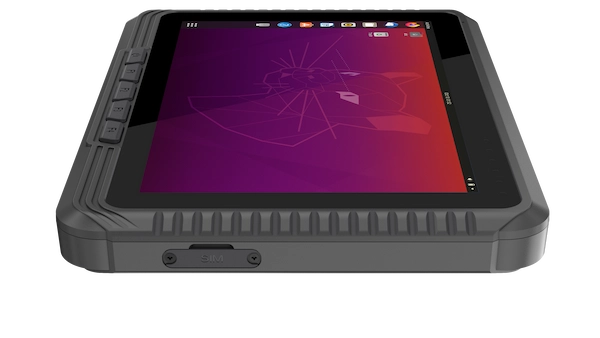

| I/O | SIM card slot (optional) Nano-SIM *1 USB 3.0 *1, USB A port DC input (Input: 11~24V) 1000M network interface RS232 *1+RS232/RS485 *1，9PIN DB9 full function serial port RS232 USB 2.0 *1+USB 2.0 (Default) / CAN*1+CVBS*1 USB2.0 standard interface *2; Optional CAN for customer debugging |
| Touch Pannel | 5 points Capacitive |
| Battery | |
| Capacity | 1000mAh/7.4V |

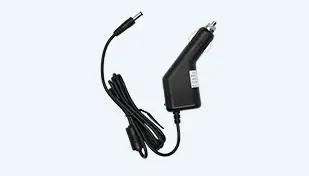

| Adapter | 19V 3.42A Cigarette Lighter Adapter 19V 3.42A DC φ5.5 power adapter |
| Performance parameter | |
| CPU | Intel JASPER LAKE N5100 |
| OS | Ubuntu-20.4.5 |
| RAM | 4GB LPDDR3 |
| ROM | 64GB EMMC |
| Communication | |
| WIFI | WIFI 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G |
| Bluetooth | BT 5.0 |
| Optional | 4G |
| GNSS | GPS/GLONASS Optional, Huada Beidou/Ublox M8Q |
| Reliability | |
| Operate Temperature | -20 ℃ ~ 60 ℃ |
| Store Temperature | -30 ℃ ~ 70 ℃ |
| Humidity | 95% Non-Condensing |
| Rugged Feature | IP65 |
* Please be aware all technical data, specification and performance figures subject to change without notice.

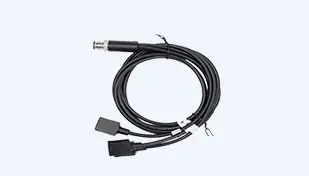

Various modules and accessories can be selected to meet customers' application in various industries.
Various modules and accessories can be selected to meet customers' application in various industries.
