10'' Android: EM-Q16 Muti-interface Rugged PC

10.1' Android Rugged Tablet EM-Q16

  • Stronger Core with Qualcomn, Powerful rugged tablet with Android 9.0

  • A right size for work, 10.1' widescreen with Hight-Bightness Display is ready for every environment.

  • Support SIM Card, phone call anywhere.

  • DATA COLLECTION in PRECISE & CONVENIENT

  • EM-I16H has rich experience in many applications.

  • 1D/2D barcode scanner/USB/NFC/BD/ID CARD

10'' Android: EM-Q16 Rugged Tablet
10'' Android: EM-Q16 Rugged Tablet
10'' Android: EM-Q16 Rugged Tablet
10'' Android: EM-Q16 Rugged Tablet
10'' Android: EM-Q16 Rugged Tablet
Android Android
IP65 IP65
GPS GPS
NFC NFC
Fingerprint Fingerprint
1D 1D
2D 2D
3G/4G 3G/4G
WiFi WiFi
Bluetooth Bluetooth

Features of 10'' Android Tablet EM-Q16 Rugged PC

  • Support for Android 9.0 system

  • Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes

  • 10000mAh battery, 12 hours of machine endurance

  • IP65 high protection level, in accordance with MIL-STD-810G

  • Support GPS, Glonass, more accurate positioning

  • Rear 13 million pixel auto focus camera, easy to collect image and video information

  • Support 1D/2D, NFC, Fingerprint and other functional modules for free selection


Six views of 10'' Android Tablet EM-Q16 Rugged PC


Specifications of 10'' Android Tablet EM-Q16 Rugged PC


Model No:EM-Q16 Specification
TypeDetailsStandard ConfigurationOptional
Product FormTypeRugged TabletNA
Dimension280*187*22mmNA
WeightDevice unit: 1014g  ,Unit with gift box and standard accessories:1990g,docking:290gNA
Device Colorblack( bottom shell in black, front shell in black)NA
LCDScreen Size10.1 inch  16:10NA
Resolution800*1280 IPS/1920*1200FHDNA
Brightness400cd/㎡NA
TPTouch PanelMulti points Capacitive,G+G,Rigidity: above 7H-Anti-scratch,support handwritingNA
CameraFrontFront:5.0MPNA
RearRear: 13MP auto-focus with a flashlightNA
SpeakerBuilt-inEmbedded 8Ω/0.8W waterproof speakerx 1NA
MicBuilt-inSensitivity:-42db, output resistance2.2kΩNA
Batterytypebuild in polymer li-ion batteryNA
Capacity3.7V/10000mAhNA
Endurancenearly 12 hours ( 50% volume sounds,50% brightness, 1080P HD video display by default )NA
System Hardware Configuration
TypeDetailsDescriptionsOptional
CPUTypeMSM8953(8core)NA
Speed2.0GHzNA
GPUTypeAdreno 506 1920 × 1200 @ 60 fpsNA
RAMDDR3L4GB/ LPDDR3NA
ROMEmmc64GBNA
G_sensorBuilt-inGravity acceleration sensorNA
Network Connections
TypeDetailsDescriptionsOptional
WIFIWIFIWIFI 802.11 b/g/n/a/ac frequency 2.4G+5G dual band WIFI,NA
BluetoothBuilt-inBT4.1(BLE)NA
2G/3G/4GBuilt-inCMCC 4M:
LTE B1,B3,B5,B7,B8,B20,B38,B39,B40,B41
 WCDMA 1/2/5/8
GSM 2/3/5/8
NA
GPSBuilt-insupport:GPS+Glonass;Capture sensitivity:-140 dBm;Cool Start Time:<50秒,Hot start time:<5秒,GPS frequency:1575.42MHz,Glonass frequency:1602MHZNA
NFCBuilt-inNXP NFC 13.56MHz  support ISO/IEC 14443A/14443B/15693/18092/mifare protocol,identification distance :3cm~5cmNA
1D barcode scannerOptionalNAMOTO  SE655E100R
2D barcode scannerOptionalNAHoneywell N3680 TTL decoder
Interface Configuration
TypeDetailsDescriptionsOptional
TF slotExtensive External Memorysupport TF   x1    max:128GNA
SIM slotSIM cardSIMx1NA
USB  interfacedata transmissionstandard USB 3.0x1  、   type C x1(data&charing)NA
Earphone JackAudio Output∮3.5mm  standard earphone jack   x1NA
DC JackPowerDC 5V 3A ∮3.5mm Power connector  x1NA
HDMIVideo OutputHDMI 1.4a Type C  x1NA
Extensive Slotpogo Pin12pin  Pogo Pin   x1NA
Standard Accessories
TypeDetailsDescriptionOptional
OTG cableOTG cabletype-c OTG cableNA
type-c cabletype-c cabletype-c cableNA
Power AdaptorStandardAC100V ~ 240V、50Hz/60Hz output DC 5V/3A      USA Standard  CE approvalUK standard
EU Standard
Software Configuration
TypeDetailsDescriptionOptional
Operation SystemOS versionAndroid 9.0NA
Software Configuration
TypeDetailsDescriptionOptional
Certificate SystemIP65IP65 Report: Water resistance:IP-X5,Dust resistance:IP-6X  Report ID no.:SET2015-07677
a.Inner Nozzle diameter:6.3mm;   b. water speed:12.5±0.625L/min;
c. Water Pressure:adjust according to water volumn;
d.Central part of water volumn:diameter of 40mm, distance from nozzle: 2.5M
e.Spray time on surface of panel:about 1min;f.test time:at least 3min;
g.distance between nozzle and panel surface:2.5~3m。
After test,there is no water leakage in sample.
NA
CE NBY
MIL-STD-810GY
BatteryUN38.3,MSDS, Aviation report, Sea transportation report, IEC62133
Reliability
TypeDetailsDescriptionsOptional
Product ReliabilityDrop HeightMIL-STD-810G 1.22m drop
Operate Temperature‘-20 °C to 55 °C
Store Temperature’-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing



Application Range of 10'' Android Tablet EM-Q16 Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.



Accessories of 10'' Android Tablet EM-Q16 Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.


Hand-strap
Hand-strap

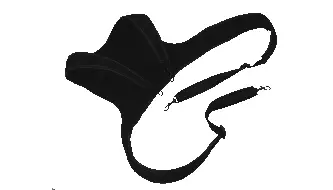

Back-Straps
Back-Straps
Car Charge
Car Charge

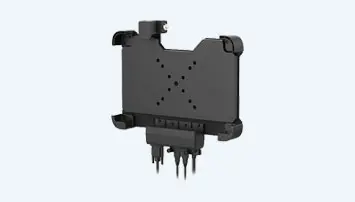

Vehicle Mount
Vehicle Mount
Docking Charger
Docking Charger
Battery
Battery
Shoulder-strap
Shoulder-strap
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Carry handle
Carry handle
