12'' Intel: EM-I22J Windows 11 Notebook

  • Windows 11 Rugged 2in1 Notebook EM-I22J

  • Rugged IP65 protective grade for waterproof & dustproof

  • Hot-swappable dual batteries, Escort your long hours of work

  • Intel® Celeron™  stronger performance

  • Optional 1D/2D Barcode Scanner/NFC reader

  • Dual 5G (SA/NSA) network support/Upgrade BT 5.0

em i22k rugged notebook 111
em i22k rugged notebook 55
em i22k rugged notebook 22
em i22k rugged notebook 33
em i22k rugged notebook 4
windows windows
ip65 ip65
gps gps
high capacity high capacity
bluetooth bluetooth
1d 1d
2d 2d
3g4g 3g4g
wifi wifi
4g5g4x 4g5g4x

Features of 12'' Intel: EM-I22J Windows 11 Rugged Notebook


  • Support for Windows 11 systemDual

  • Support 5G (SA/NSA) network,3G/4G all network communication, WiFi, Bluetooth 5.0 and other communication modes

  • 6300mAh、1000mAh capacity dual battery, machine endurance 8 hours

  • IP65 high protection level, in accordance with MIL-STD-810G

  • Support GPS, more accurate positioning

  • 12.2 inch IPS, 1920x1200, 10-point capacitive touch screen

  • Support 1D/2D, NFC and other functional modules for free selection

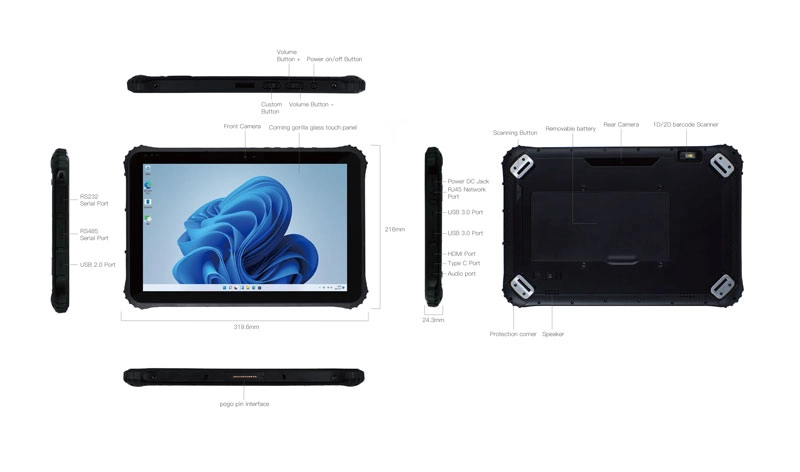

Six Views of 12'' Intel: EM-I22J Windows 11 Rugged Notebook





Specifications of 12'' Intel: EM-I22J Windows 11 Rugged Notebook


TypeDetailsStandard Configuration
Product FormType12.2 inch Rugged Tablet (Optional keyboard )
Dimension319.6*216*24.3 mm
Weight1500g
Device Colorblack+black color(bottom shell black color, front shell black color)
LCDScreen Size12.2 inch  16:10
Resolution1920*1200 IPS Screen
Brightness280cd/㎡
TPTouch Panel10 points Capacitive, G+G, Corning Gorilla Rigidity: above 7H-Anti-scratch, TP thickness:1.1mm, COF, support handwrite
CameraFrontfront 2.0MP
Rearrear 5.0MP
SpeakerBuilt-inEmbedded 8Ω/0.8W waterproof speaker x2
MicBuilt-inSensitivity::-42db, output resistance 2.2kΩ
BatteryTypeBuild in Lithium-ion polymer battery/large battery can hot plug replacement
Capacity6300mAh/7.4V  1000mAh/7.4V  (dual battery )
Endurance6hrs(default 50% volumn,default200 lumens brightness play 1080P HD video)
System Hardware Configuration
TypeDetailsDescription
CPUTypeIntel®Skylake M3-6Y30
Speed4M Cache, up to 2.20 GHz
GPUTypeIntel® HD Graphics 515
RAMDDR3L4GB
ROMEmmcNA
SSDNGFF SSD128G M.2
G_sensorBuilt-inGravity acceleration sensor
Network Connections
TypeDetailsDescriptions
WIFIWIFI ModuleWIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G
BluetoothBuilt-inBT4.2 (BLE) class1 transmission distance:10m
3GBuilt-inNA
4GBuilt-inYES
GPSBuilt-inYES
NFCBuilt-inNA
Data Collection
TypeDetailsDescription
1DOPTIONALNA
2DOPTIONALNA
Interface Configuration
TypeDetailsDescriptions
TF slotExtensive External Memorysupport TF   x1    max:128G
SIM card slot3G/4G communicationSIM Card   x1
USB interfaceExtensive External Memory and data transmissionUSB 2.0*2 (4pin) (Host)for windows
USB 3.0*1 (9pin)
Type C interfaceUSB3.0,charging,AVType c x1
Earphone JackAudio Output∮3.5mm standard earphone jack  x1
DC JackPowerDC 12V 4A ∮4mm  Power connector  x1
HDMI interfaceAV OutputHDMI 1.4a   x1
Serial port Interfaceserial portDB9 (RS232) ×1, DB9 (RS485) ×1
RJ45 interfaceinternet access10/100Mbps self-adaption ×1
Extensive Slotpogo Pin12pin  Pogo Pin   x1
Key
TypeDetailsDescriptions
powerpower on/off keyx1
volumeVOL+ VOL-VOL+ VOL- x2
F KEYBarcode scan keybarcode scan (backside of machine) x1
programprogamming keycustomized key function  x2
Standard Accessories
TypeDetailsDescription
handlehandlehandle
Power AdaptorStandardAC100V ~ 240V、50Hz/60Hz output DC 12V/4A      USA Standard  CE approval
Software Configuration
TypeDetailsDescription
Operation SystemOS versionwindows 10 IOT 64bit  Default language: English
Product Certificate
TypeDetailsDescription
Certificate SystemIP65IP65 Report: waterproof test: IP-X5, dustproof test: IP-6X
a.nozzle inner diameter:6.3mm;   b.water-carrying capacity:12.5±0.625L/min;
c.water pressure: adjust according to specified water-carrying capacity;
d.central part of main water flow: Away from the nozzle 2 . 5 m  diameter
about 40mm circle;
e.water spray time for outter shell per a square meter: about 1min;f. test time: at least 3min;
g. distance from nozzle to outter shell surface:2.5~3m. after tested, check sample and no water inside situation
CE-NBY
MIL-STD-810GY
BatteryUN38.3, MSDS, IEC62133
Reliability
TypeDetailsDescriptions
Product ReliabilityDrop Height1.22m  composite wood floors, in operation status
Operate Temperature‘-20 °C to 60 °C
Store Temperature’-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing



Accessories of 12'' Intel: EM-I22J Windows 11 Rugged Notebook

Various modules and accessories can be selected to meet customers' application in various industries.


12 intel em i22h hand strap
12 intel em i22h hand strap
straps
straps
10 intel em i16k car holder
10 intel em i16k car holder
vehicle mount
vehicle mount
base
base
12 intel em i22h battery
12 intel em i22h battery
back strap
back strap
keyboard
keyboard

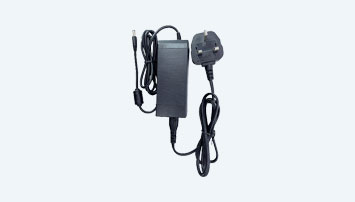

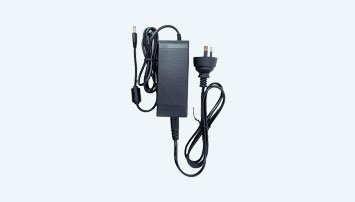

10 intel em i16k adapter
10 intel em i16k adapter
10 intel em i16k adapter 1
10 intel em i16k adapter 1
10 intel em i16k adapter 2
10 intel em i16k adapter 2
10 intel em i16k adapter cable 3
10 intel em i16k adapter cable 3
10 intel em i16k adapter cable 2
10 intel em i16k adapter cable 2
10 intel em i16k adapter cable 1
10 intel em i16k adapter cable 1
10 intel em i16k adapter cable
10 intel em i16k adapter cable
handle
handle
car holder
car holder

Application Range of 12'' Intel: EM-I22J Windows 11 Rugged Notebook

Various modules and accessories can be selected to meet customers' application in various industries.


emdoor surveying mapping industry
emdoor surveying mapping industry
emdoor manufacturing industry
emdoor manufacturing industry
emdoor energy industry
emdoor energy industry
emdoor public industry
emdoor public industry
emdoortrafficindustry220x220
emdoortrafficindustry220x220
emdoor warehouse logistics industry
emdoor warehouse logistics industry
