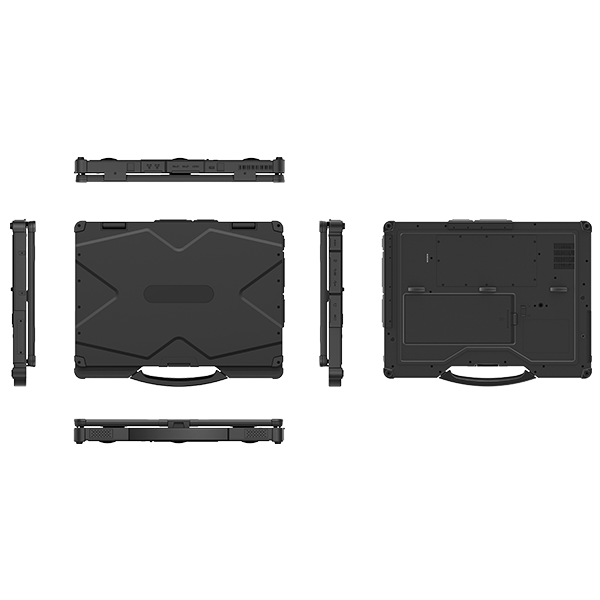

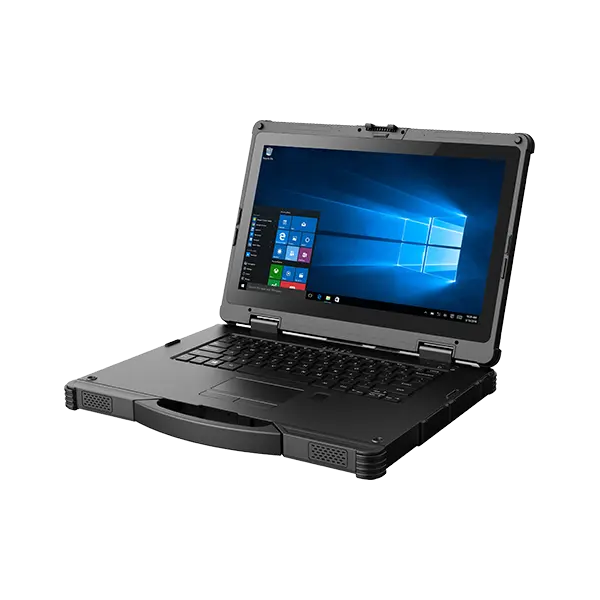

EM-X14M
14 Inch Rugged AI PC Intel Windows 11
14 inch Windows AI Rugged Laptop: Intel Core Ultra with NPU & Arc Graphics. MIL-STD-810H/IP65 14'' touchscreen. Thunderbolt 4 & dual 56Wh+14.4Wh batteries. Built for railway inspection.
  • CPU: ® Intel Core™ Ultra 7 processor 155H with 16 cores and 22 threads
  • GPU: iGfx/dGfx (Intel Xe LPG Graphics)
  • Operating system: Windows 11 Pro
  • Resolution: 1920*1080
  • Screen size: 14 inches
Get a quote Compare
EM-X14M
Specifications Overview Accessories Product Video
Get a quote Compare
Specifications

  • Basic parameters

      Dimensions
      363.2*287.4*42.1mm
      Machine weight
      2.97kg
      Machine color
      Black
      Display
      14 inch 16:9, 1920×1080, 1000 nits
      Touch screen
      Optional 10-point capacitive screen,Hardness above 7H, Scratch-resistant，supports glove touch
      Camera
      Front 5.0MP
      I/O Interface

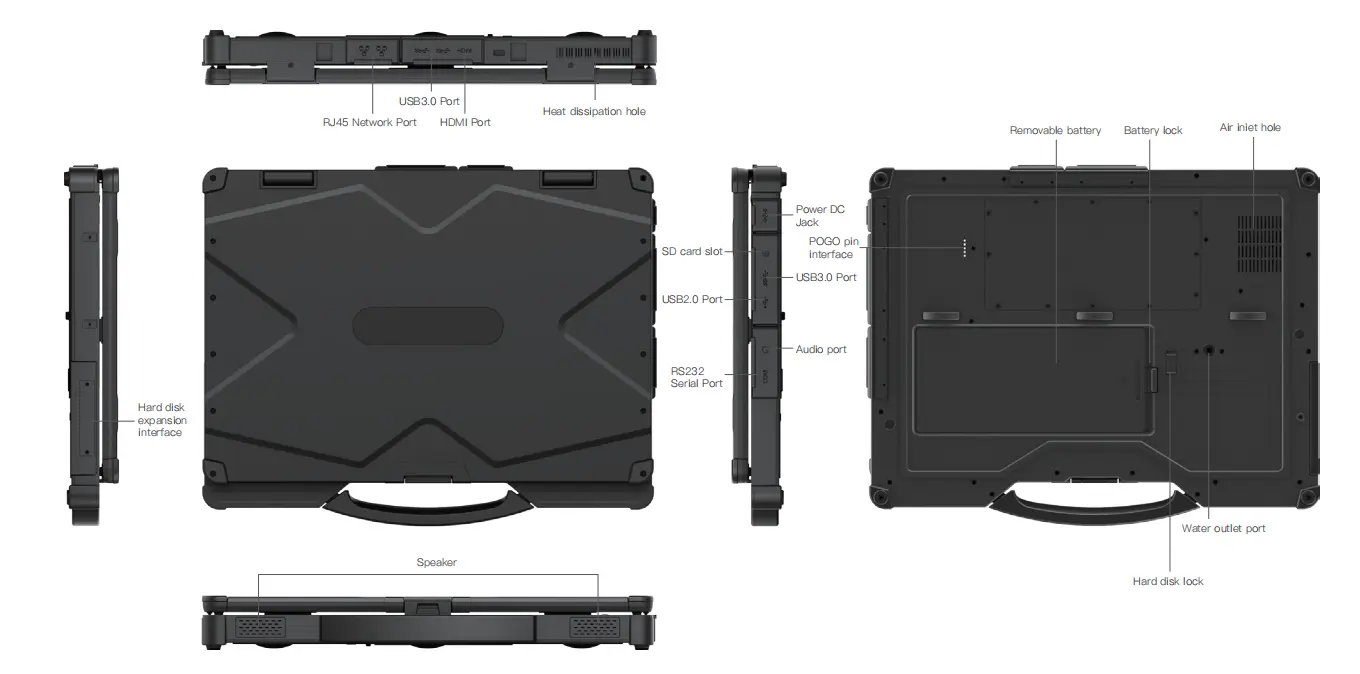

      USB3.2 *1, USB3.0 *1，USB2.0 *1 TYPE-C, Supports Thunderbolt 4 ∮3.5mm Standard Earphone Jack *1 HDMI 2.0a mini *1 SIM card *1，TF card *1 RJ45*1 10M/100M/1000M self-adaptive， RJ45*1 10M/100M/1000Mself-adaptive(USB2.0), supports Gigabit Ethernet protocol RS232 *1, 9 fully functional lines DC19V/3.78A ∮5.5mm power interface *1 Anti-theft Lock Slot *1 Right-side Cooling Vent *1 Left-side expansion slot, optional M.2-2280 PCIe interface *1, supports SSD; Optional: M.2 E-KEY interface *1 for custom modules Optional: 12PIN Pogo Pin (USB & Charging) *1
      Power adapter
      AC100~240V, 19V/3.78A 71.82W output US Standard Optional: EU Standard

  • Wireless Communications

      WIFI
      Wi-Fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax
      Bluetooth
      BT5.1(BLE) class 1 Transmission distance: 10m
      2G/3G/4G/5G
      4G(Optional)/5G(Optional)
      GNSS
      Supports single GPS or single Glonass, default GPS

  • Performance parameters

      CPU
      Intel® Core™ Ultra 7 processor 155H
      GPU
      iGfx/dGfx (Intel Xe LPG Graphics)
      Operating system
      Windows 11 Pro
      Memory
      32GB
      Storage capacity
      256GB

  • Battery Performance

      Battery

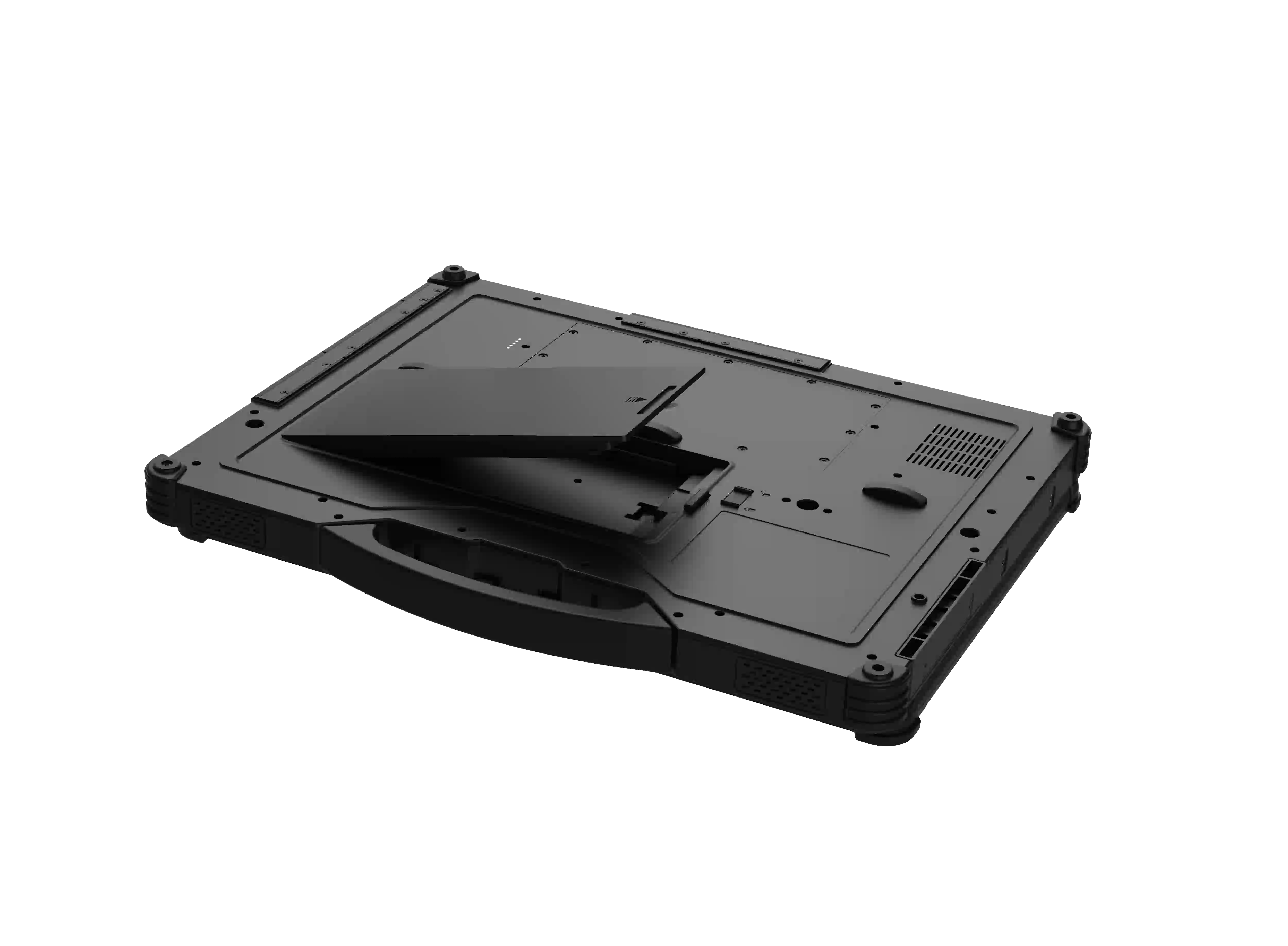

      Built-in - 1300mah/11.1V / Built-in Polymer Lithium-ion Battery, Non-removable / 1.5 hours Hot-swappable - 4850mah/11.55V / Removable Polymer Lithium-ion Battery, Hot-swappable / 8 hours

  • Data collection

      NFC
      Optional
      1D
      No
      2D
      No
      Fingerprint
      Yes

  • Product reliability

      Operating temperature
      -20℃~60℃
      Storage temperature
      -30℃~70℃
      Humidity
      95%, no condensation
      Protection level
      IP65 certified, MIL-STD-810H certified
      Drop height
      1.2m drop resistance
*Note: There is a lag in updating product parameters on the site. Please refer to the information provided by Emdoor Sales for all product parameters.
