Intel Core i5/i7 10.1 inch Windows 11 Metal Rugged Tablet EM-I12A

·Effective shielding against electromagnetic interference

·Intel® Core™ i5-1235U/i7-1255U processor

·Windows 11 OS , Up to 64GB + 512GB

·10.1 inch IPS Full HD screen with 10-point capacitive touch

·Dual band WIFI, High speed 4G LTE BT 5.1

·Support GPS, Glonass

·Optional professional 2D scan engine

·Full magnesium alloy body

·Vibration & 1.22m drop resistant

·IP65 Waterproof and Dustproof, MIL-STD-810H certifified

rugged tablet
rugged tablet
rugged tablet
rugged tablet
rugged tablet
ip65 ip65
gps gps
2d 2d
4g 4g
wifi wifi
bluetooth bluetooth
windows windows
high capacity high capacity
camera camera

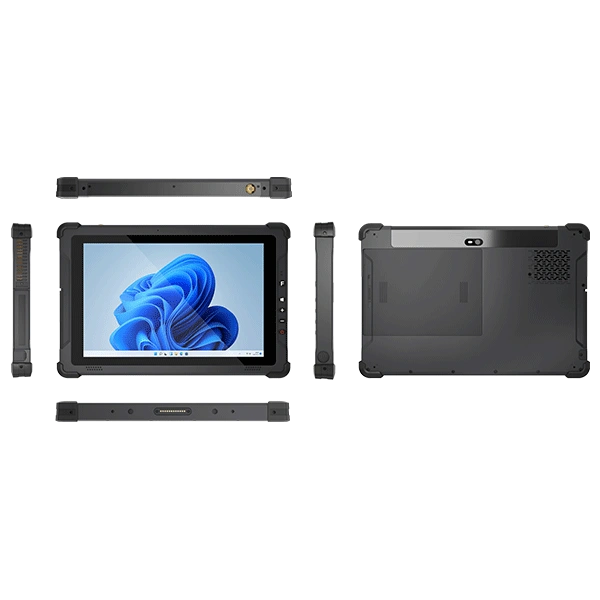

Six views of Intel Core i5/i7 10.1 inch Windows 11 Rugged Mobile PC EM-I12A

rugged tablet PC



Specifications of Intel Core i5/i7 10.1 inch Windows 11 Rugged Tablet PC EM-I12A




Basic parametersPerformance parameter
Dimension   278.6 x 184.5 x 21.3mmCPU  Intel® Core™ i5-1235U/i7-1255U
Weight   1190gOS  Windows 11/Windows 10
Device Color   Magnesium alloy blackRAM  16GB
LCD   10.1 inch IPS 16:10, 1200×1920, 700/400 nitsStorage  128GB
Touch Panel   10 point G+F+F capacitive touch screenNetwork connections
Camera   Rear 8.0MP With flashlightWIFI  Wi-Fi 6 802.11a/b/d/e/g/h/i/k/n/r/u/v/w/ac/ax
Dual frequency 2.4G+5.8G WIFI
I/O   USB 3.0 Type-A x 1, USB Type-C x 1,
   SIM Card x 1, TF Card x 1,
   HDMI 2.1a Mini x 1(Optional), 12pins Pogo Pin x 1,
   Antenna SMA interface x 1(Optional),
   Aviation plug-in interface x 1(Optional),
   Φ3.5mm standard earphone jack x 1,
   Φ5.5mm DC jack x 1
Bluetooth  BT5.1, Transmited distance:10 m
4G  LTE FDD: B1/B3/B7/B8/B20/B28A
WCDMA: B1/B8
GSM: B3/B8
Power   AC100V ~ 240V, 50Hz/60Hz, Output DC 19V/3.42AGNSS  Support GPS, glonass, Optional GPS, Beidou, glonass
BatteryReliability
Capacity   7.4V/860mAhOperate
Temperature
  -20 °C ~ 60 °C
Type   Built-in Li-polymer batteryStore
Temperature
  -30 °C ~ 70 °C
Endurance   For replacing large batteriesHumidity  95% Non-Condensing
BatteryRugged
Feature
  IP65 certified, MIL-STD-810H certified
Capacity   7.4V/5000mAhDrop Height  1.22m drop
Type   Removable Li-polymer batteryExtension modules(Optional)
Endurance   4.5hrs ( 50% volume sounds, 50% screen
   brightness, 1080P HD video display by default )
2D  Optional, Optical resolution: 5mil/
scan speed: 50 times/s




* Please be aware all technical data, specification and performance figures subject to change without notice.


Features of Intel Core i5/i7 10.1 inch Windows 11 Rugged Tablet PC EM-I12A

Introducing the exceptional EM-I12A Magnesium Alloy Rugged Tablet, designed for those who demand high-performance and durability in challenging environments. This powerful tablet features a 10.1-inch IPS display with a 1200x1920 resolution and a brightness of 700/400 nits, providing crisp, clear visuals in all conditions. Powered by Intel Core i5-1235U or i7-1255U processors and running on Windows 11, this rugged tablet delivers speedy performance, perfect for professional use.


The EM-I12A comes in a sleek magnesium alloy black color, and it is built to withstand harsh conditions, boasting IP65 certification and MIL-STD-810G compliance. With a 1.22m drop resistance, it can handle accidental falls with ease. Weighing just 1190g and measuring 278.6 x 184.5 x 21.3mm, this tablet offers both portability and durability.


Stay connected with the latest Wi-Fi 6 technology, dual-frequency 2.4G+5.8G Wi-Fi, and Bluetooth 5.1, ensuring fast and stable connections up to 10 meters. The 4G LTE support offers seamless mobile connectivity for on-the-go professionals. Integrated GPS, Glonass, and optional Beidou support provide accurate location services.


Capture important moments with the rear 8.0MP camera, equipped with a flashlight for low-light situations. This rugged tablet offers a wide range of I/O options, including USB 3.0 Type-A, USB Type-C, SIM Card, TF Card, HDMI 1.4a (optional), and more, making it perfect for any task.


The EM-I12A is equipped with a removable 7.4V/5000mAh Li-polymer battery, providing up to 4.5 hours of endurance with 50% volume and screen brightness. Choose from multiple RAM and storage options to meet your specific needs, with configurations of 8GB/16GB/64GB RAM and 128GB/256GB/512GB storage available.


Experience the ultimate combination of power, durability, and versatility with the EM-I12A Magnesium Alloy Rugged Tablet.


Accessories of Intel Core i5/i7 10.1 inch Windows 11 Rugged Tablet PC EM-I12A

Various modules and accessories can be selected to meet customers' application in various industries.


hand strap
hand strap
vehicle mount
vehicle mount
carry handle
carry handle
docking charger
docking charger

Application Range of Intel Core i5/i7 10.1 inch Windows 11 Rugged Tablet PC EM-I12A

Various modules and accessories can be selected to meet customers' application in various industries.


emdoor surveying mapping industry
emdoor surveying mapping industry
emdoor manufacturing industry
emdoor manufacturing industry
emdoor energy industry
emdoor energy industry
emdoor public industry
emdoor public industry
emdoortrafficindustry220x220
emdoortrafficindustry220x220
