Rockchip3568 Quad-Core 2.0GHz 8 inch Rugged Android Tablet with GPS EM-R88

·RK3568 quad-core processor

·Android 12 OS,Maximum 4 GB of LPDDR4 RAM and 64 GB storage

·8-inch IPS screen,supporting 10-point capacitive touch

·Professional 2D scanner and NFC reader

·Support GPS/BeiDou/GLONASS

· High-speed 2G/3G/4G network

·2.4G/5.0G dual-band Wi-Fi & BT5.0 fast transmission

·IP65 Waterproof and Dustproof

·Vibration & 1.2m drop resistant

·MIL-STD-810H certified

rugged android tablet with gps
rugged android tablet with gps
rugged tablet with gps
rugged android tablet with gps
rugged android tablet with gps
android android
ip65 ip65
gps gps
dual-battery dual-battery
camera camera
nfc nfc
4g 4g
wifi wifi
bluetooth bluetooth
2D 2D

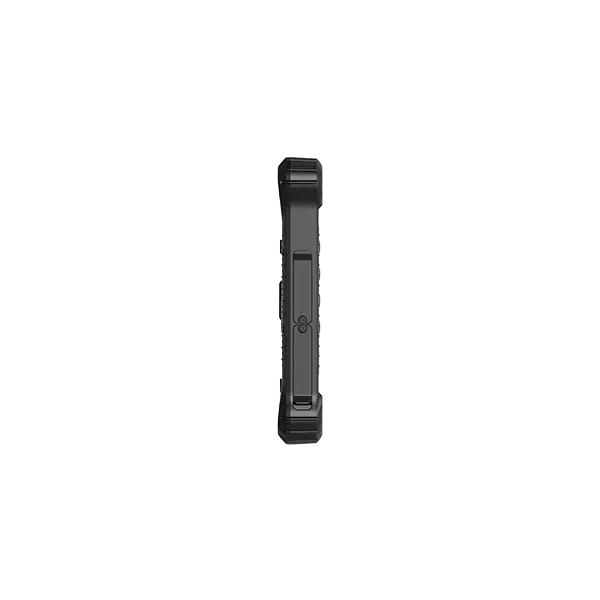

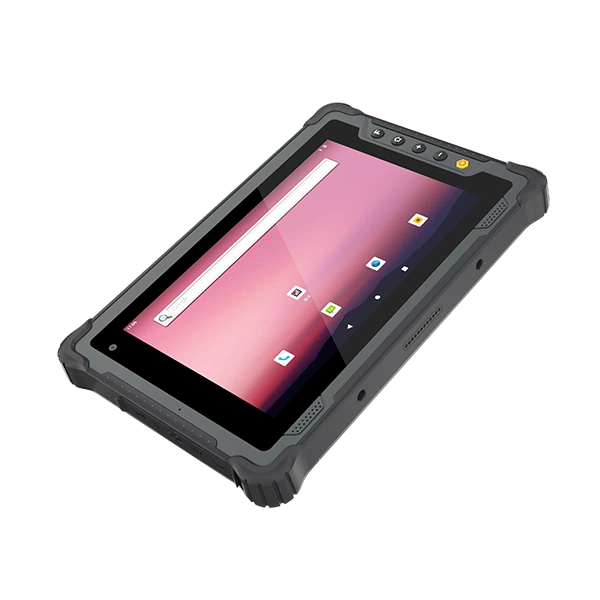

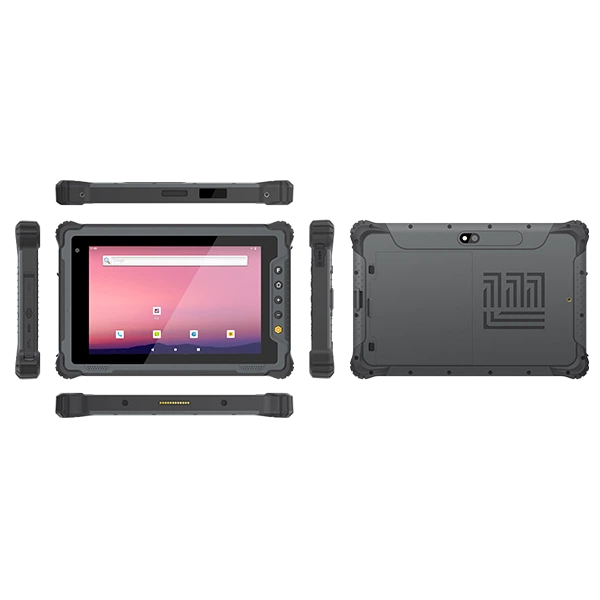

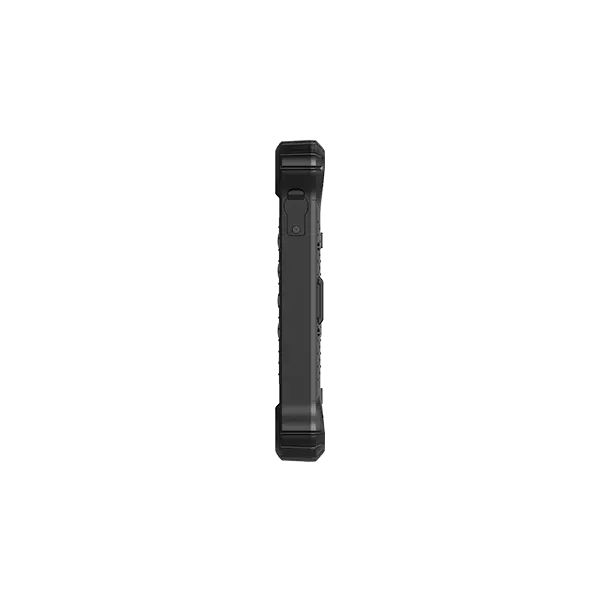

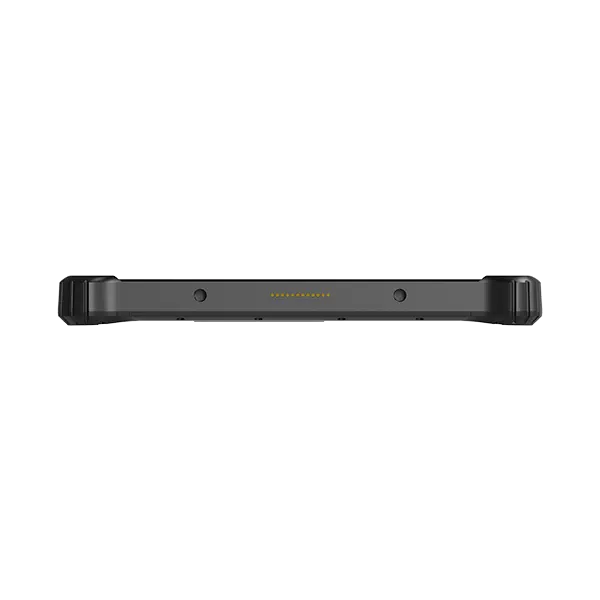

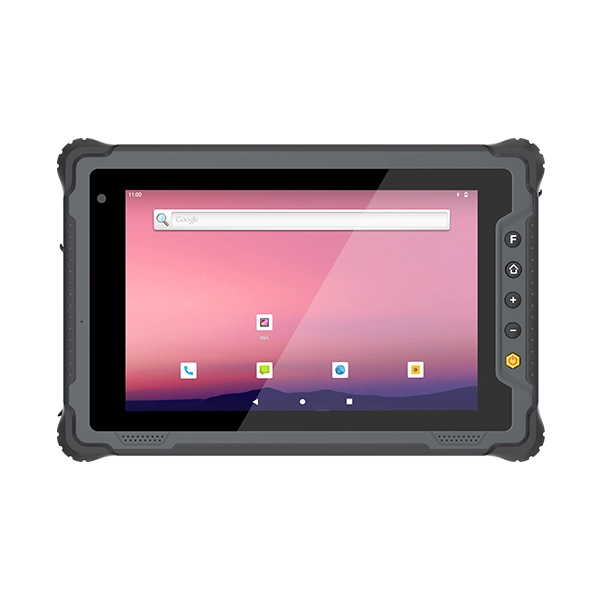

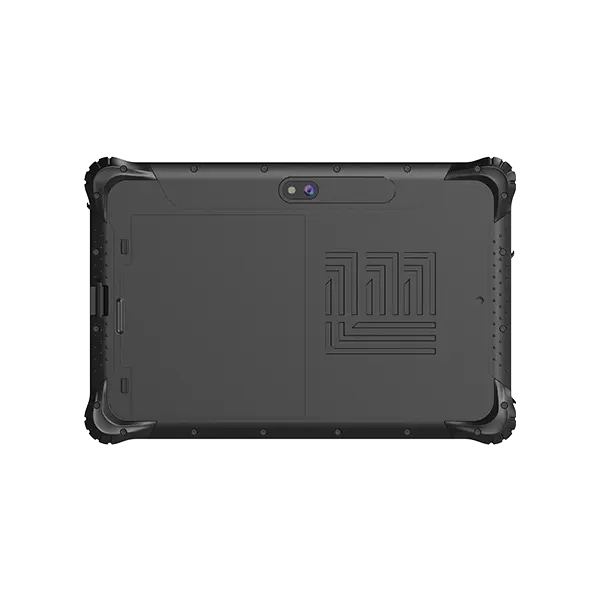

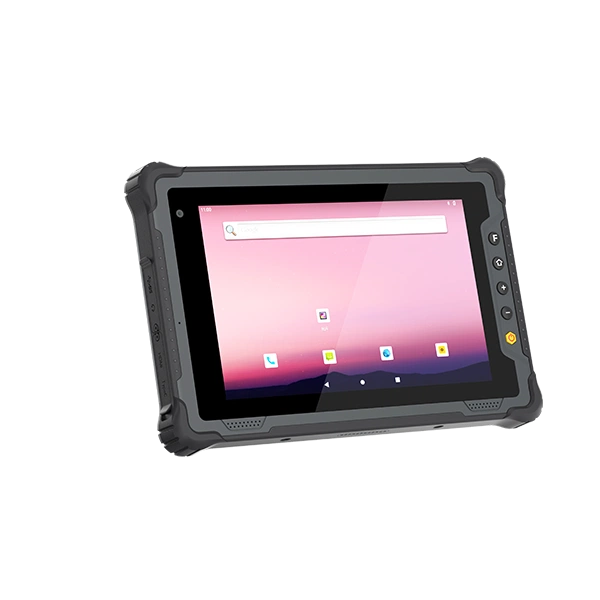

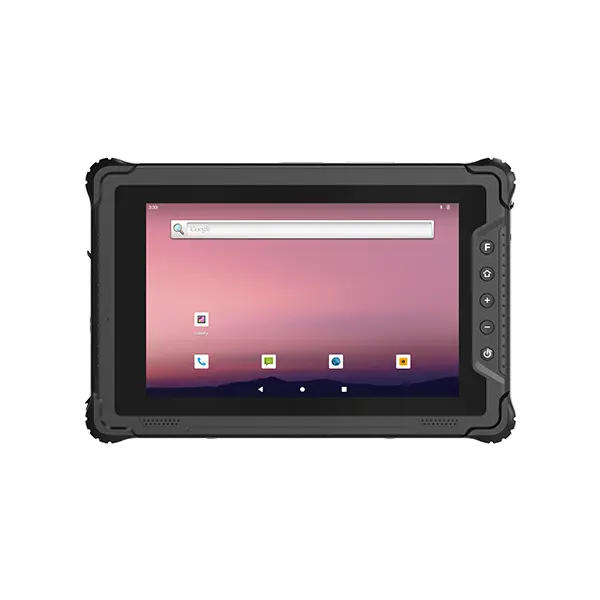

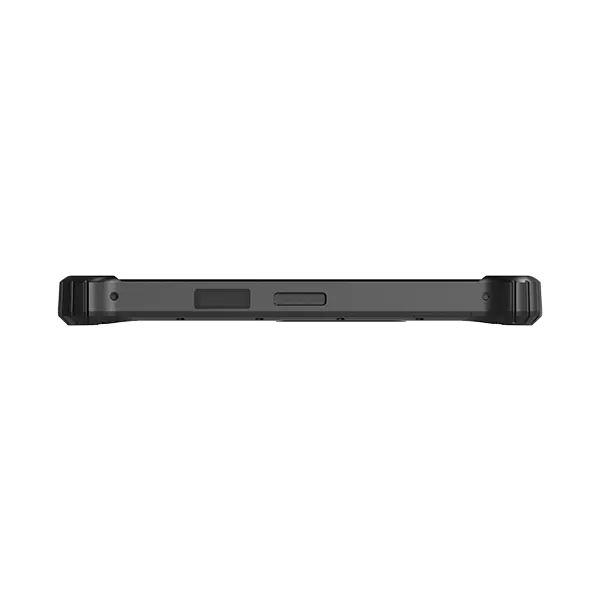

Six views of Rockchip3568 Quad-Core 2.0GHz 8 inch Rugged Android Tablet with GPS EM-R88



Specifications of Rockchip3568 Quad-Core 2.0GHz 8 inch Rugged Android Tablet with GPS EM-R88

Basic parametersPerformance parameter
Dimension  236.7 x 155.7 x 20.8mmCPU  RK3568
Weight  Device unit 818 gOS  Android 12
Device Color  GrayRAM  4GB
LCD  8 inch IPS 16:10, 800×1280, 700 nitsStorage  128GB
Touch Panel  10 point G+G capacitive touch screenBattery
Camera  Front 5.0MP Rear 8.0MPCapacity  3.8V/10000mAh
I/O  USB 3.0 Type-A x 1, USB Type-C x 1,
SIM Card x 1, TF Card x 1 (MAX 512GB),
Φ3.5mm standard earphone jack x 1,
DC jack x 1,
HDMI x 1,
12PIN Pogo Pin x 1

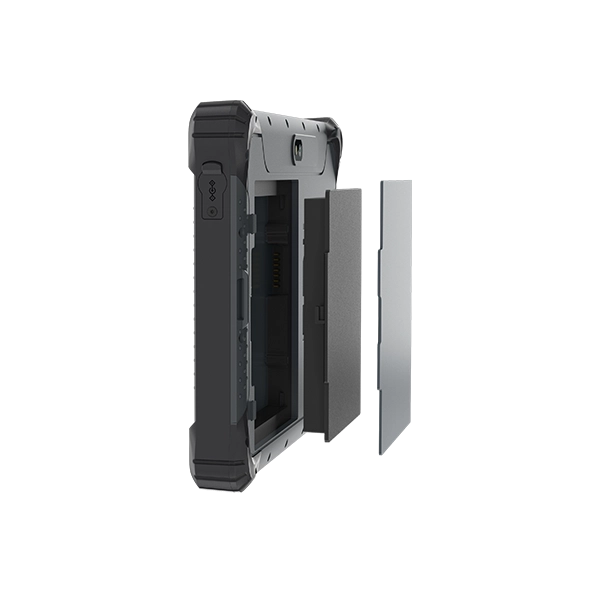

Type  Removable Li-polymer battery
Endurance  11hrs (50% volume sounds, 50% screen brightness,
1080P HD video display by default)
Reliability
Power  AC100V ~ 240V, 50Hz/60Hz, Output DC 5V/4AOperate
Temperature
   -15 °C ~ 60 °C
Network connectionsStore
Temperature
   -30 °C ~ 70 °C
WIFI  WiFi 802.11 a/b/g/n/ac (2.4G+5G)Humidity  95% Non-Condensing
Bluetooth  BT5.0
Transmission distance: 10 m
Rugged
Feature
  IP65 certified, MIL-STD-810G certified
2G/3G/4G   GSM:900/1800
WCDMA:B1/B5/B8
TDD:B40
FDD:B1/B3/B5/B7/B8/B20
Drop Height  1.22m drop
Data Collection
2D  Optional, Optical resolution: 5mil/
scan speed: 50 times/s
GNSS  Support GPS+BeiDou

NFC  Optional, 13.56MHz,
Support ISO/IEC 14443A protocol
Card reading distance: 3-5cm



* Please be aware all technical data, specification and performance figures subject to change without notice.


Features of Rockchip3568 Quad-Core 2.0GHz 8 inch Rugged Android Tablet with GPS EM-R88

EM-R88, a rugged Android tablet with GPS that boasts an impressive battery life and powerful performance. Equipped with the Rockchip RK3568 SoC from Rockchip, this quad-core tablet features ARM Cortex-A55 processors with low power consumption and 64-bit architecture that can reach speeds of up to 2.0 GHz. With 4 GB of LPDDR4 RAM and 64 GB of high-speed storage memory, the EM-R88 can handle all your industrial tasks with ease.


But that's not all - this rugged Android tablet with GPS also includes a micro SD card reader that supports cards up to 512GB, ensuring that you have plenty of storage space for all your important files and data. And thanks to its tough shell with reinforced corners, the EM-R88 can withstand even the toughest drops and impacts, making it the perfect tablet for mobile workers in rugged environments.


In addition to its durability, the EM-R88 also boasts an 8-inch IPS touch screen with a resolution of 1200×800 pixels and a high brightness of 700nit, making it easy to view in any lighting condition. And for even more convenience, it also supports a stylus for handwritten notes and drawings input.


Connectivity is not an issue either, as this rugged Android tablet with GPS comes equipped with integrated 2.4GHz+5GHz dual-band WiFi, 4G/LTE, and BT5.0. And with support for GPS, GLONASS, and BeiDou, mobile workers can get fast and accurate location data, relying on its reliable performance.


But perhaps the most impressive feature of the EM-R88 is its long-lasting battery life. With its energy-efficient processors and optimized software, this Android tablet with good battery life can run for hours on end without needing to be recharged. So whether you're out in the field or working in a remote location, the EM-R88 has you covered.



Accessories of Rockchip3568 Quad-Core 2.0GHz 8 inch Rugged Android Tablet with GPS EM-R88

Various modules and accessories can be selected to meet customers' application in various industries.


Application Range of Rockchip3568 Quad-Core 2.0GHz 8 inch Rugged Android Tablet with GPS EM-R88

Various modules and accessories can be selected to meet customers' application in various industries.


Outdoor Exploration
Outdoor Exploration

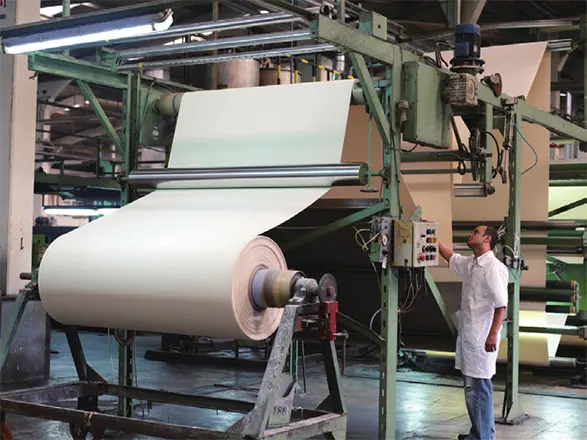

Manufacturing
Manufacturing
Industry
Industry
Animal Husbandry
Animal Husbandry
