How about Emdoor information’s EM-X33 ?

There seems to be a consensus in today's era that the more convenient things are, the more they have a market. The same goes for rugged notebooks. However, rugged notebooks have always been limited by size, and many users have criticized the balance between their comprehensive performance and convenience.

The new reinforced notebook EM-X33 released by Emdoor Information strives to break through the limitation of volume and realize the thin and light notebook. So, what is the real performance of this ruggedized notebook? Let's take you further in-depth understanding.

Industrial grade metal body

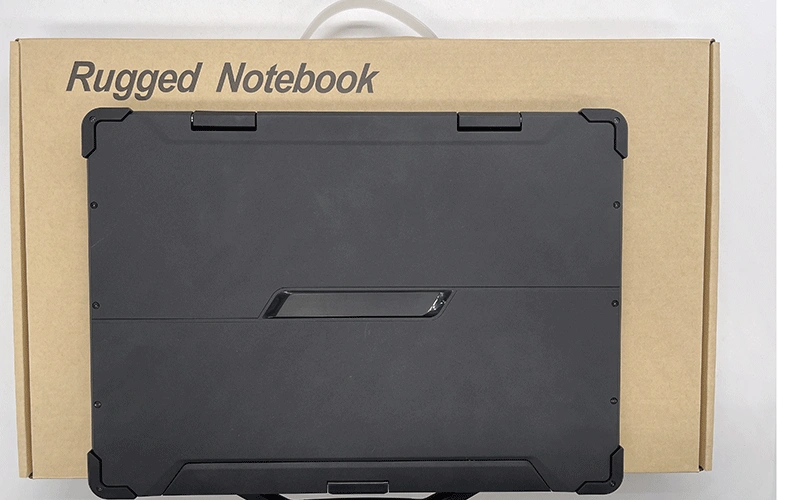

未标题-1_0006_图11.pngFour sides are made of magnesium alloy, light and strong—high-grade matte texture created by multiple processes. The center is reserved for the parallel and staggered brand logo, with a full sense of design. The surrounding protective pads are tightly wrapped, the front lock is firmly fixed, the rear shaft is closely connected, and the front handle is prominent and convenient, and there is no extra element in the whole. The whole machine is as light as 2.1kg and as thin as 26mm, giving up the heavy burden and using simplicity to demonstrate the high-level sense of industry.

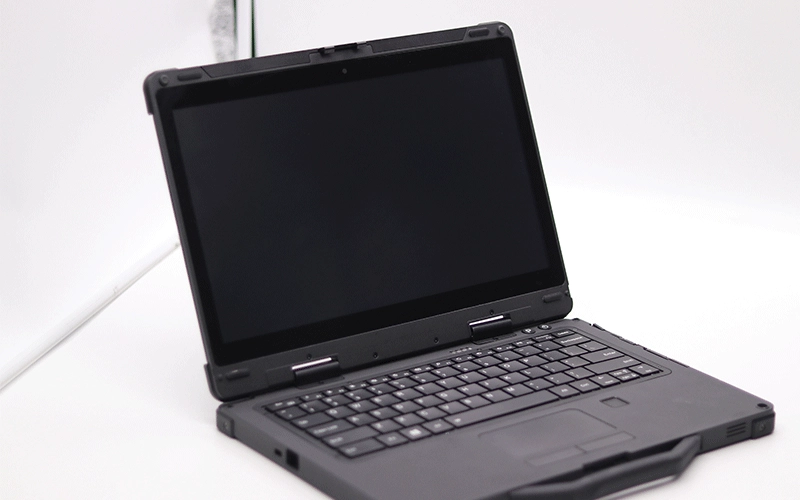

The original 13.3-inch and 16:9 industrial full screen, full HD resolution, 400 nits brightness, 10-point capacitive touch, and a physical privacy camera are also equipped. In addition, it adopts a full-size backlit keyboard with the same color as the body, equipped with a large-size touchpad for a precise touch and a push-type fingerprint module for flexible encryption. All details are outstanding.

EM-X33 has a wealth of interfaces. On the right are USB3.0, Thunderbolt 4, 3.5mm headphone port, and circular power port, and on the back are RS232 serial ports, RJ45 Gigabit Ethernet ports, USB3.0, and HDMI ports. It is not easy to integrate all the above mainstream interfaces for such a light and thin reinforced notebook. However, it can meet almost all interface requirements at work. Among them, the Thunderbolt 4 interface and HDMI interface can also support 8K video output.




Intimate user experience

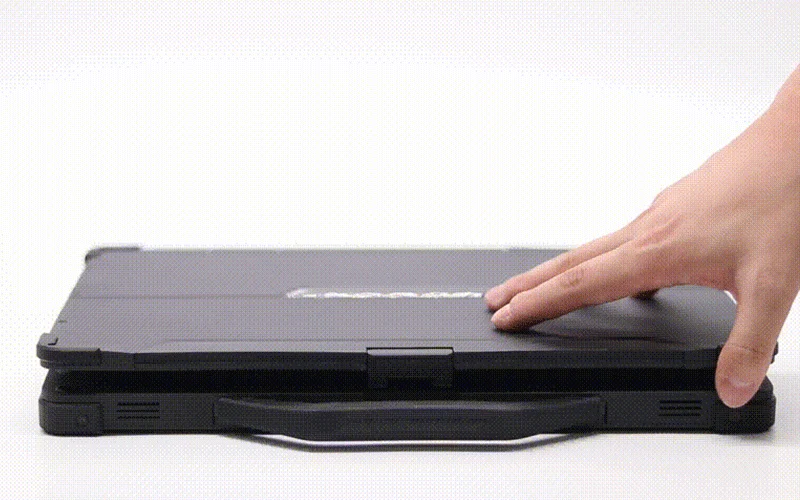

The EM-X33's lock connection and shaft damping are just right, which can realize a one-handed opening and closing of the screen and a large 180-degree flip. Use touch to complete some interactive operations that PC cannot complete. The backlit keyboard that automatically lights up with one key can better adapt to the use environment. For example, touch the fingerprint module with your finger; the screen will automatically turn on to the login interface and enter the system automatically.

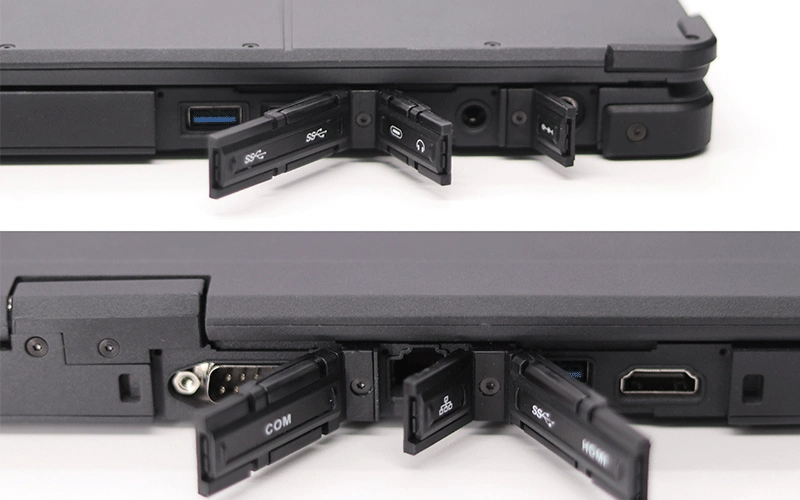

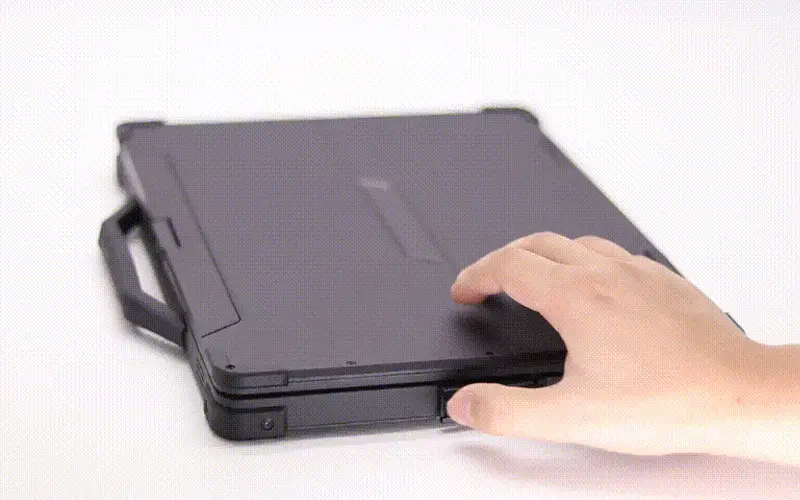

Unlike the past, EM-X33 does not use a sinking interface structure to open the interface plug from the gap but uses a new push-pull fixed buckle coupling method. You only need to push slightly in this new way, and the interface plug will pop out automatically.

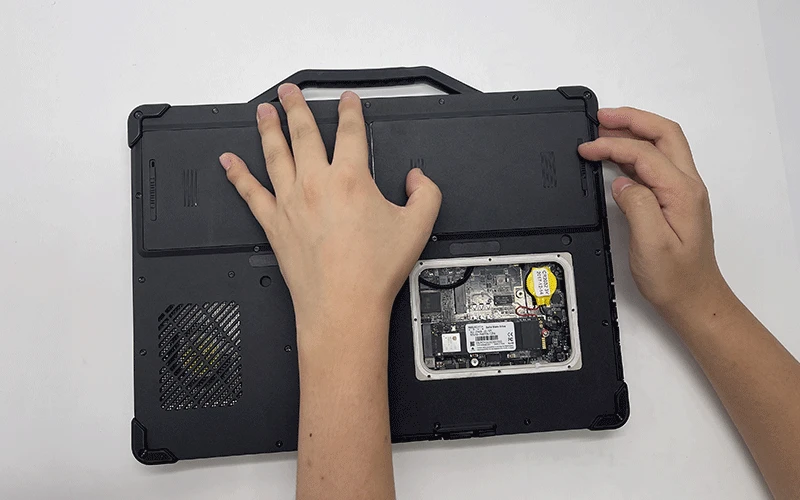

The EM-X33 is equipped with two batteries with the same capacity. The overall battery capacity is up to 62Wh, and the battery life can reach 8-10 hours, which can support a full day of daily work. The battery cover has also been upgraded, from the non-resilient structure to the rebound structure, making the lock more flexible and maneuverable. There is also a detachable structure on the back of the EM-X33. Open the door. A 256GB SSD with M.2 interface can be seen and replaced as needed. There is also an exposed M.2 interface for installing 4G modules.



Perfect hardware configuration

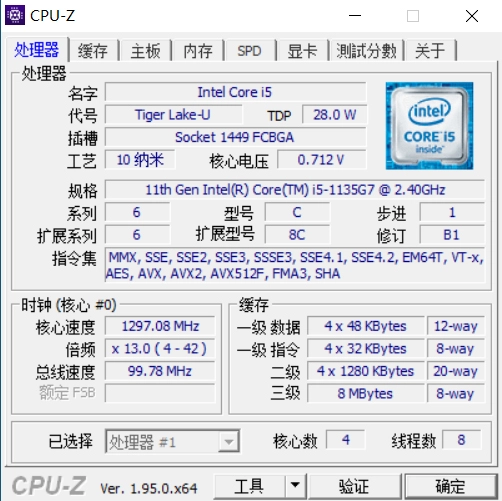

Use CPU-Z to read the CPU data of EM-X33. EM-X33 is equipped with Intel’s 11th-generation TigerLake series i5-1135G7, 4 cores and 8 threads, clocked at 2.4GHz, single-core core frequency at 4.2GHz, TDP is 28W, The process technology is 10nm, and it has 8MB of L3 cache, which overturns the existing performance standard for rugged notebook. Another bright spot is that whether a battery or a power cord powers the TigerLake processor will not significantly impact performance. For example, the performance decline when using a battery will not exceed 10%.

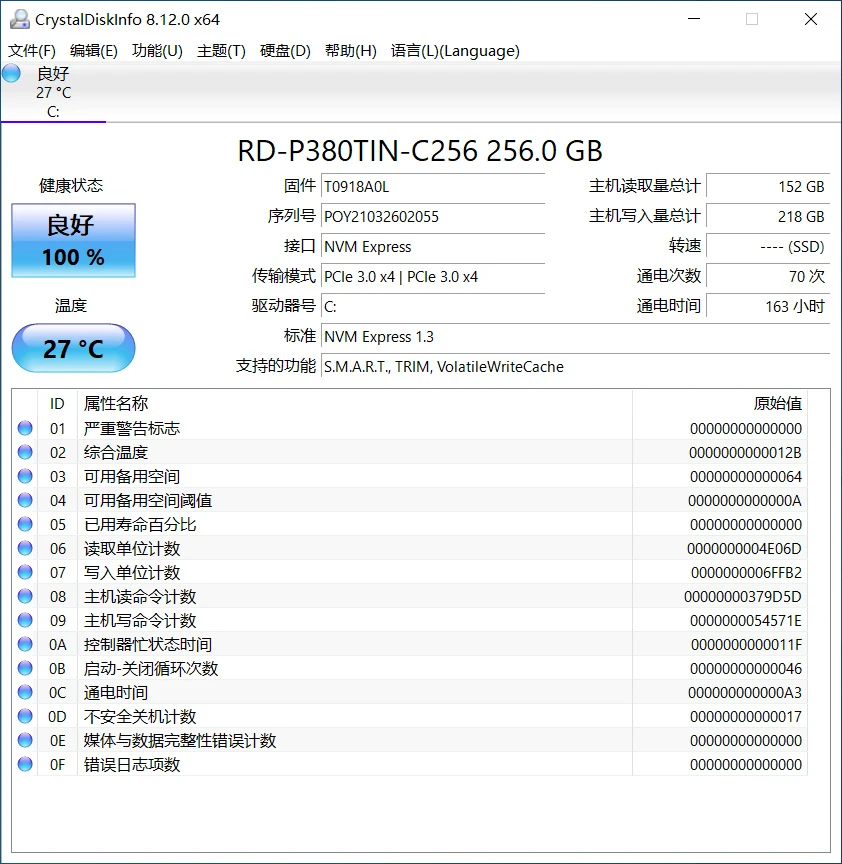

Use CrystalDiskInfo and AIDA64 to read the hard disk and memory information of EM-X33. EM-X33 is equipped with PCIE3.0×4 NVMe 256GB M.2 SSD and onboard 8GB four-channel LPDDR4 4266MHz memory. It is a typical high-speed NVMe solid-state drive with good performance.

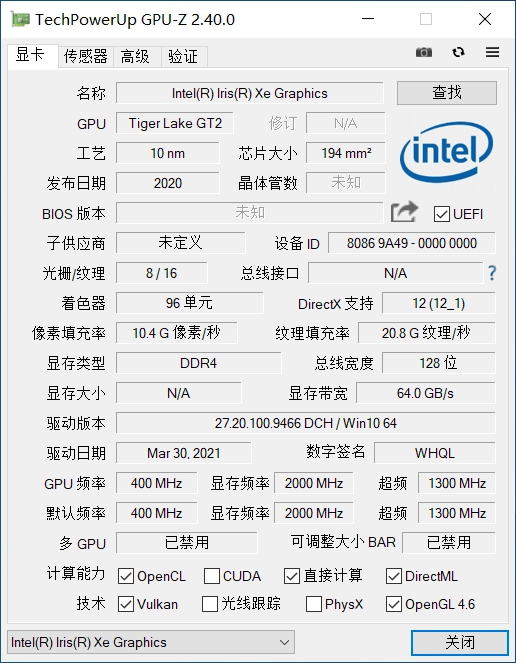

In terms of the graphics cards, the EM-X33 is equipped with a brand new Intel Iris Xe core display, with up to 96 execution units (EU), the default frequency is 400MHz, and the acceleration frequency can reach 1300MHz, which provides powerful image performance for rugged notebooks. Compared with some mainstream independent displays, the advantages are also obvious.



Prove efficient productivity with strength

EM-X33 is a ruggedized notebook that stands out from the trade-offs between thinness and performance. We used CineBench R15 to test a short-term benchmark of single-core and multi-core CPUs to verify their strength. In the end, the single-core running score was 198cb, and the multi-core running score was 928cb.

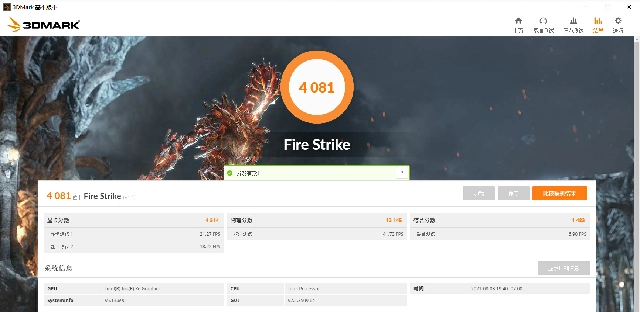

In the core display part, we used 3DMark to test the EM-X33 graphics card and got FireStrike running points, 4000+ points, the results are quite amazing, and it is fully equipped to replace the entry-level standalone display. Moreover, it proves that EM-X33 can be stably realized whether playing ultra-definition video or processing three-dimensional drawing work.

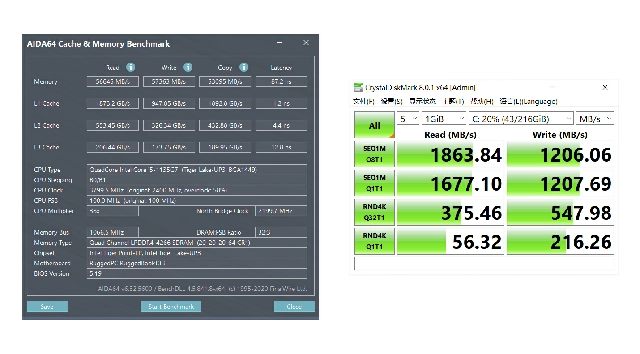

The performance of storage components is also the key that many users easily overlook. In fact, they also play an important role in the overall performance of the device. In the test, the continuous read speed of the solid-state drive is 1863.84MB/s, and the write speed is 1206.06MB/s, which is at the mainstream level. The measured read and write performance is good in memory, and the delay time is also controlled at 87.2ns.

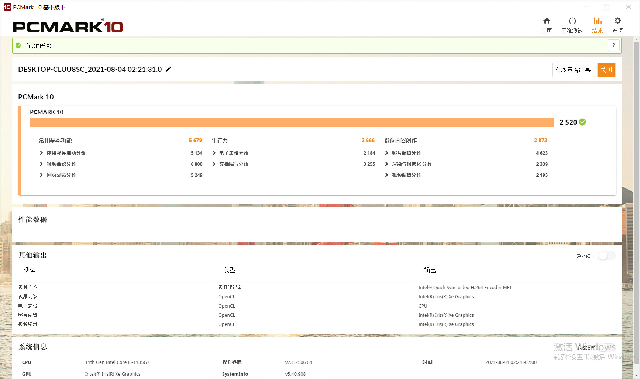

Finally, to test the performance of EM-X33 in daily use, PCMark10 was used to simulate a series of daily operations and productivity output such as video conferencing, web browsing, form processing, document writing, picture/ picture/ picture/video editing, etc. The final score of the test was 2520 points. Thus, it can fully satisfy daily smooth use.


As a whole, The new ruggedized notebook EM-X33 from Emdoor is a new flagship model with both internal and external repairs. In addition, it is lighter and thinner than the mainstream ruggedized notebooks on the market and has excellent performance. Therefore, it is undoubtedly a good new choice for industry users.
