New Product Release: R/J Series Panel Computer and an EM-PPC10B Panel Computer with a flexible configuration option.

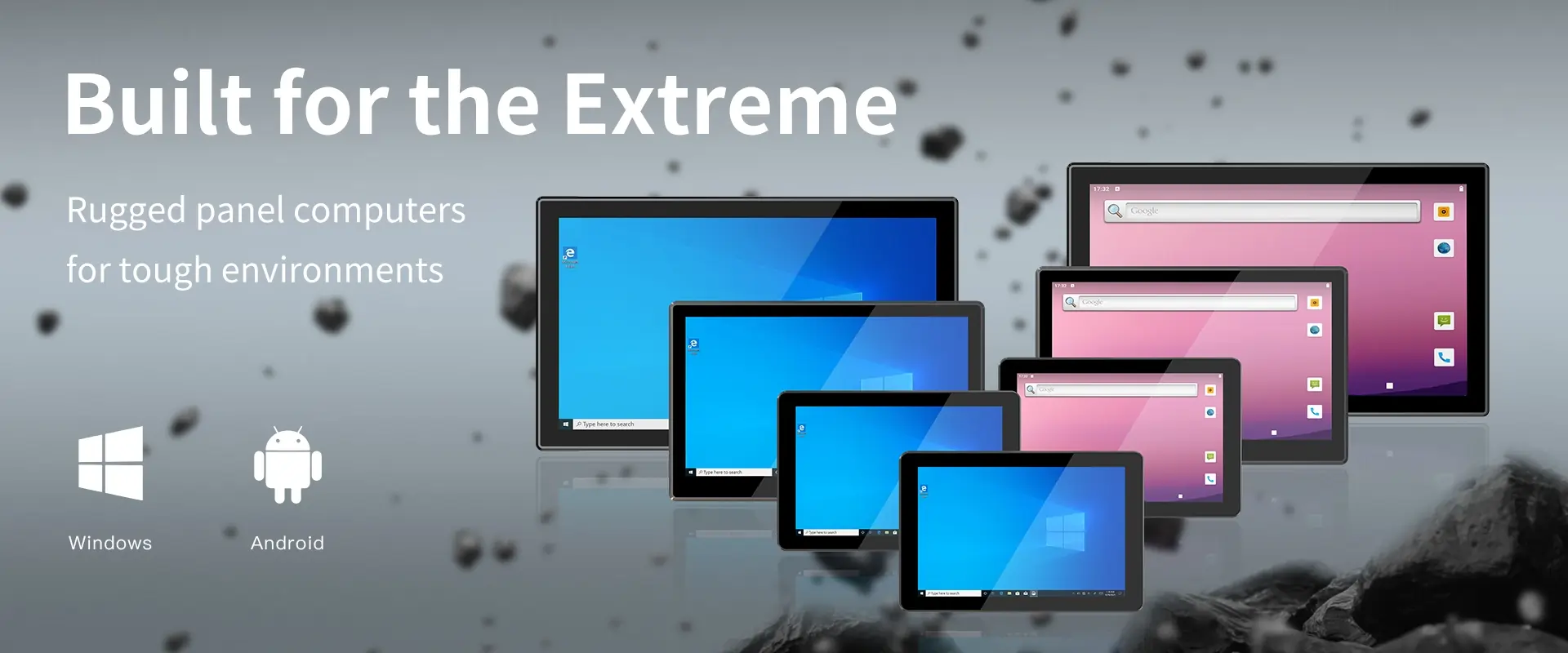

Emdoor, a global rugged computer manufacturer, has launched seven rugged panel PCs uniquely suited for industrial applications in the modern factory.



With the advent of Industry 4.0, industrial panel pc suppliers are under increasing pressure to optimize factory operations. This shift has increased the need for intelligent tablets and notebook PCs in industrial and business. To be suited for industrial applications in the modern factory, equipment needs to provide long-term stable supply, robustness, and smooth touch operability. For these, Emdoor has developed a line of new industrial panel PCs that combine high-performance, energy-efficient, and advanced touch screen display technology.



Emdoor J series industrial panel pc includes 10.1-inch EM-PPC10J, 15.6-inch EM-PPC15J, and 21.5-inch EM-PPC21J. They are powered by an 11th generation Intel® Celeron™ processor that supports Intel® Turbo Boost technology and multi-task processing for enhanced computing performance and guaranteed compatibility with the Windows 10 OS platform. Apart from these, they carry several onboard interfaces for the easy and flexible integration of whatever peripheral devices an application requires.



J series industrial panel pc Features:

  • 11th generation Intel® Celeron™ processor with support for Windows 10 OS

  • Compact, slim design with a truly flat, easy-to-clean, multi-touch front surface

  • Rugged IP65-front rated bezel protects against the ingress of dust, dirt, and liquids

  • 2x USB 3.0 ports, 2x USB 2.0 ports, 2x COM, 2x Gb LAN port, 1x HDMI,1xM2 Mini PCIe slot and other rich expansion interfaces

  • Fanless design provides a nearly silent operation

  • Wide range of DC input

  • Wireless communication with various devices by Wireless LAN, Bluetooth5.0, and 802.11b/g/n WIFI

  • Embedded & VESA Mount Dual Mounting Schemes

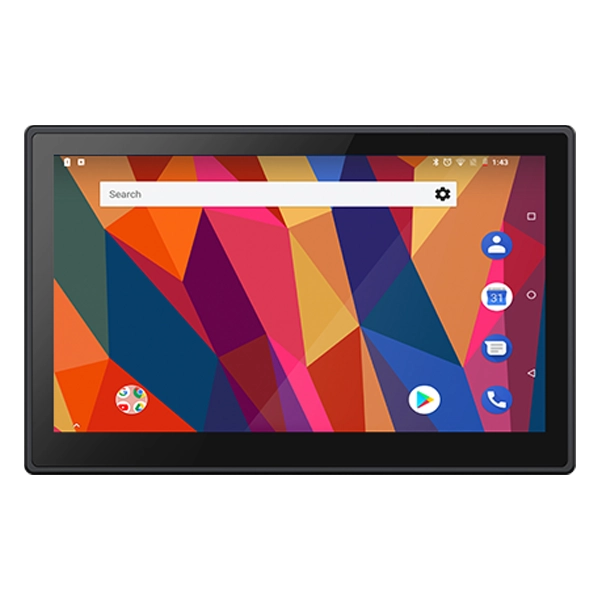

Emdoor R series industrial panel pc includes three devices with screen sizes ranging from 10.1, 15.6, to 21.5 inches, which comes along with a high-range general-purpose SoC, made in 22nm process technology, integrated 4-core ARM architecture A55 processor. As a result, enhanced computing performance and higher screen resolution make them excellent solutions for businesses or industries.



R series industrial tablet panel pc Features:

  • Rockchip RK3568 Arm Quad Cortex-A55 processor with support for Android 11 OS

  • Compact, slim design with a truly flat, easy-to-clean, multi-touch front surface

  • Rugged IP65-front rated bezel protects against the ingress of dust, dirt, and liquids

  • Dual USB 3.0 ports, 2x COM, 1x Gb LAN port, 1x HDMI, 1x Mini PCIe slot, and other rich expansion interfaces

  • Fanless design provides a nearly silent operation

  • Wide range DC input

  • Embedded & VESA Mount Dual Mounting Schemes





The separately introduced EM-PPC10B rugged panel PC uses the most commonly Intel Celeron quad-core processor, which has proven its excellent stability in the most factory and industrial automation applications. Equipped with 4 GB of DDR4 memory and 64GB of SSD storage, it facilitates high-speed data processing and storage. Additionally, EM-PPC10B offers different configuration choices. Clients are free to choose from Windows 7 or Windows 10 operating systems. Furthermore, the EM-PPC10B panel PCs are equipped with rich interfaces and a mini mPCIe slot for 4G, LTE, and Wi-Fi to ensure superior mobile connectivity and easy system expansion.



Key Features of EM-PPC10B rugged panel PC:

  • Intel Celeron quad-core processor with 4 GB of DDR4 storage

  • A true-flat 10.1-inch touchscreen with IP65-rated front panel

  • Wide operating temperature range (-20 ~ 60°C)

  • 1x USB 3.0, 3 x USB 2.0, 2 x RS-232, and 2 x RJ45 ports

  • Supports embedded and VESA mounting for convenient installation

  • Fanless design provides a nearly silent operation
