10'' Intel: EM-I10U win7/win10 Rugged PC

• Support for Win 7, Win 10 system

• Intel® Core™ i5-8250U/i7-8550U, greatly improved performance

• Equipped with built-in 860mAh, detachable 5000mAh polymer lithium-ion battery

• IP65 high protection level, in accordance with MIL-STD-810G

• Support GPS, Beidou, GLONASS, and more accurate positioning

• Support 8 million pixel auto focus camera, easy to collect images and video information

• Support 1D/2D, NFC, and other functional modules for free selection

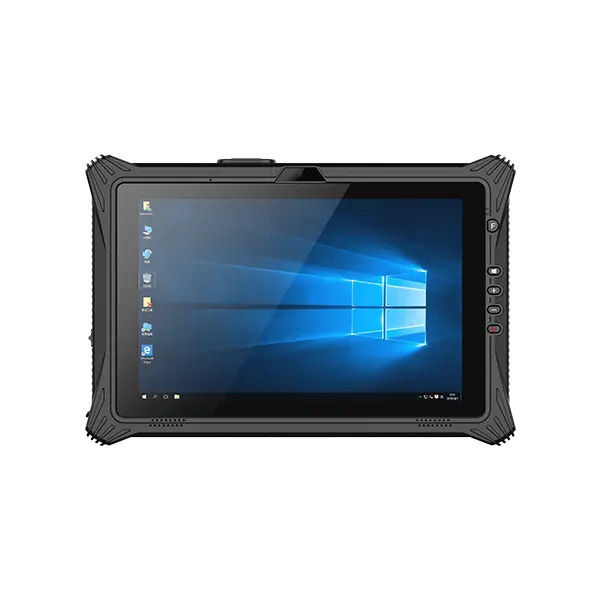

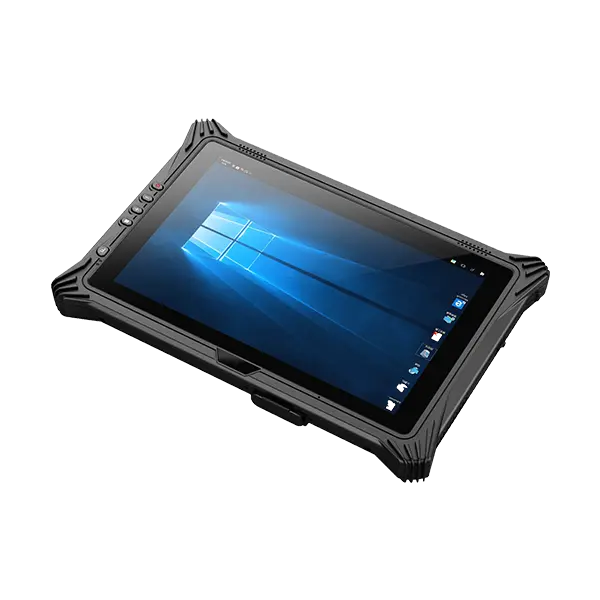

10'' Intel: EM-I10U Rugged Tablet
10'' Intel: EM-I10U Rugged Tablet
10'' Intel: EM-I10U Rugged Tablet
10'' Intel: EM-I10U Rugged Tablet
10'' Intel: EM-I10U Rugged Tablet
Windows Windows
IP65 IP65
GPS GPS
Dual-battery Dual-battery
NFC NFC
Bluetooth Bluetooth
1D 1D
2D 2D
4G 4G
WiFi WiFi

Features of 10'' Intel Tablet EM-I10U Rugged PC


  • Support Windows 10;

  • Support  USB3.0 type A connector;

  • Support Battery Single Charger Docking;

  • Support GPS navigation;

  • Support 1D/2D barcode scanner;

  • Support Finger Identification;

  • Rugged IP65 protection level;

  • Support 5000mAh pluggable battery, big and small double batteries;

  • Support UART port, RJ45 port, and customized port;

  • Support Wrist Strap and back jacket;

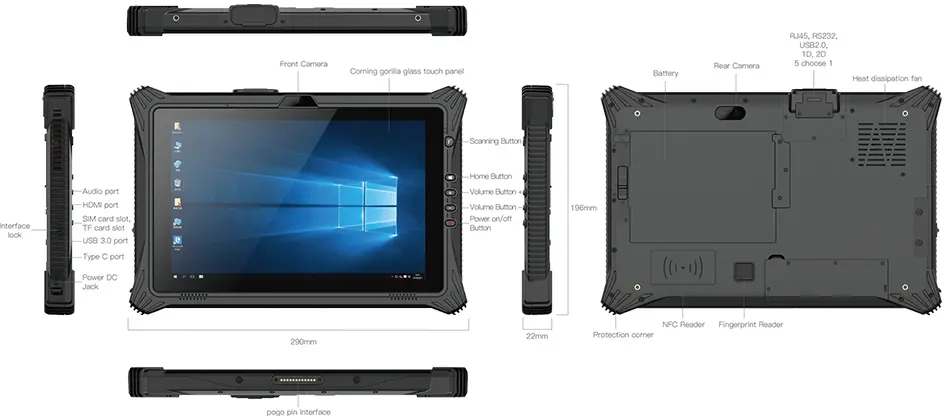

Six Views of 10'' Intel Tablet EM-I10U Rugged PC


10'' Intel Tablet EM-I10U Rugged PC



Specifications of 10'' Intel Tablet EM-I10U Rugged PC

Product Outlook
TypeDetailsStandard ConfigurationOptional
Product FormTypeRugged TabletNA
Dimension289.9*196.7*27.4mmNA
WeightDevice unit: 1140g
5000mAh battery:250g
NA
Device ColorBlack(Front and Rear Panel: Black,Decorate Board:Black)NA
LCDScreen Size10.1 inch   16:10Full-fit components
Resolution1200×1920  (or 800*1280)
Brightness400 cd/m2  (or 450 cd/m2 )
TPTouch Panel10 points Capacitive,G+G,Rigidity: above 7H-Anti-scratchOptional SLR Sunlight visible film
CameraFrontFront:2.0MP  NA
RearRear: 8.0MP    USB Camera With flash lightNA
SpeakerBuilt-inEmbedded 8Ω/0.8W waterproof speaker x 1NA
Mic
Sensitivity:-42db, Output resistance:2.2kΩNA
Small BatteryTypeBuild in Lithium-ion polymer battery,  Non-removableNA
Capacity7.4V/860mAhNA
Endurance30mins(default 50% volumn,default200nit,play 1080P HD video)NA
Bigl BatteryTypeLithium-ion polymer battery , pluggable, Hot SwapNA
Capacity7.4V/5000mAhNA
Endurance5hrs(default 50% volumn,default200nit,play 1080P HD video)NA
System Hardware Configuration
TypeDetailsDescriptionOptional
CPUType8th Generation  KBL-R Intel® Core™ i5-8250U8th Generation  KBL-R Intel® Core™ i7-8550U
Speed4M Cache, 3.40 GHzmaximum frequency 4.0 GHz
GPUTypeIntel® UHD Graphics 620Intel® UHD Graphics 620
RAMDDR4L8GB16GB
SSDNGFF SSD128GB   removable256GB/512GB
TPMBuilt-inTPM2.0   SLB9665TNA
G_sensorBuilt-inGravity acceleration sensorNA
FingerprintBuilt-in×1 SPI Fingerprint (windows hellow boot login)NA
FanBuilt-in×1  IPX5风扇NA
NFCBuilt-inNANXP100
Network Connections
TypeDetailsDescriptionOptional
WIFIWIFI ModuleWIFI 802.11(a/b/g/n/ac)  dual frequency 2.4G+5.8G WIFIwi-fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax dual frequency 2.4G+5.8G WIFI
BluetoothBuilt-inBT4.2 (BLE) class1  transmited distance:10mBluetooth 5.1
4GBuilt-inEC25-EC

LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8

China (China Unicom Telecom, mobile support is not good, only B8 supports no TDD band) Europe, Middle East, Africa, Taiwan, Japan

NA
GPSBuilt-inU-blox  M8Q ,Support:GPS, Beidou module, glonassNA
Interface Configuration
TypeDetailsDescriptionsOptional
type A usbUSB3.0x1  USB 3.0NA
Type CType C*1 Type C (USB3.0/HDMI/Charging)NA
Earphone JackAudio Output∮3.5mm Standard Earphone Jack  x1NA
HDMI JackAudio&Video OutputHDMI 1.4a mini  x1NA
TF SlotExtensive External MemorySupport TF   x1    max:128GNA
SIM SlotSIM SlotSIM   x1    NA
DC JackPowerDC 19V 3.42A ∮5.5mm Power connector  x1NA
pogo pinpogo pinx1   12pin(USB&Docking charging)NA
Keys
TypeDetailsDescriptionsOptional configuration
F KEYScanner keyScanner key x1,No barcode then customizable ((GPIO)NA
volume+volumeVolume adjustment key(+)  x 1NA
volume-volumeVolume adjustment key(-)  x 1NA
windowswindows keyx1NA
powerpower keyx1NA
Indicator light
TypeDetailsDescriptionsOptional configuration
powerBuilt-inPower on is always blue, power off light is off ×1NA
baterryBuilt-in(Red and Green) Charging red, full of green, red light flashing on low power, not discharging ×1NA
Module extension (Note: The following modules are one of five)
TypeDetailsDescriptionsOptional configuration
Ethernet interfaceRJ45 board*1(10/100M) Ethernet interface
serial portDB9 boardNA*1 (RS232)9-line full function
USB2.0USB2.0NA*1  USB2.0 Big USB
One-dimension barcodeoptionalNAMOTO  SE655E100R/Optical resolution: 5mil/scan speed: 50 times /s serial port
Two-dimension barcodeoptionalNAHoneywell N3680  hardcode
Optical resolution:5mil
scan speed:50 times /s
Code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
 Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
Standard Accessories
TypeDetailsDescriptionsOptional
Power AdaptorStandardAC100V ~ 240V、19V3.42A/65W Output       USA Standard  CE approvalUK Standard
EU Standard
Software Configuration
TypeDetailsDescriptionsOptional
Operation SystemOS versionwindows 10 Home 64bit   Default language:English  windows 10 Home 64bit
Windows 10 Pro 64bit
Windows 10 IOT 64bit
Product Certificate
TypeDetailsDescriptionsOptional
Certificate SystemIP65IP65 Report:Water Resistance:IP-X5,Dust Resistance:P-6X  Report ID no.:SET2015-07677
a.Inner Nozzle Diameter:6.3mm;   b. Water Speed:12.5±0.625L/min;
c. Water Pressure:Adjust according to water volumn;
d.Central part of water volumn :A round with a diameter of about 40mm at the distance from the nozzle 2.5m.
e.Spray time in surface of panele: About 1 min/Square meter;f.Test time:at least 3min;
g.Distance between nozzle and panel surface:2.5~3m。
After test,there is no water leakage in sample.
NA
CE-NBYESNA
MIL-STD-810GYESNA
CCCYESNA
BatteryUN3803,MSDS,IEC62133,Aviation, Ocean shipping reportsNA
Reliability
TypeDetailsDescriptionsOptional
Product ReliabilityDrop Height1.22cm  composite wood floors, in operation status
Operate Temperature‘-20 °C to 60 °C
Store Temperature’-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing



Accessories of 10'' Intel Tablet EM-I10U Rugged PC


Hand-strap
Hand-strap
Vehicle Mount
Vehicle Mount
Docking Charger
Docking Charger
Battery
Battery
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable

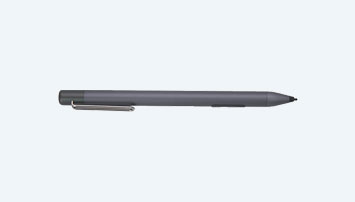

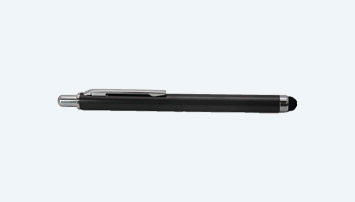

Stylus
Stylus
Stylus
Stylus
Carry handle
Carry handle

Gallary of 10'' Intel Tablet EM-I10U Rugged PC

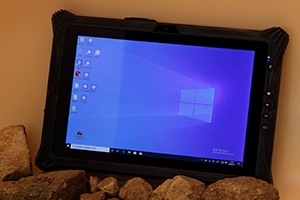

em i10u0002mg2082
em i10u0002mg2082

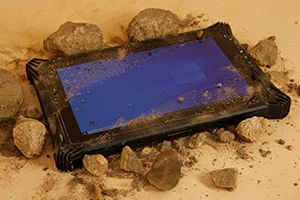

em i10u0001mg2128
em i10u0001mg2128

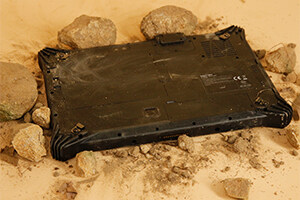

em i10u0000mg2129
em i10u0000mg2129

Application Range of 10'' Intel Tablet EM-I10U Rugged PC


Surveying & Mapping Industry
Surveying & Mapping Industry
Manufacturing Industry
Manufacturing Industry
Energy Industry
Energy Industry
Public Industry
Public Industry
Traffic Industry
Traffic Industry
emdoor warehouse logistics industry
emdoor warehouse logistics industry
