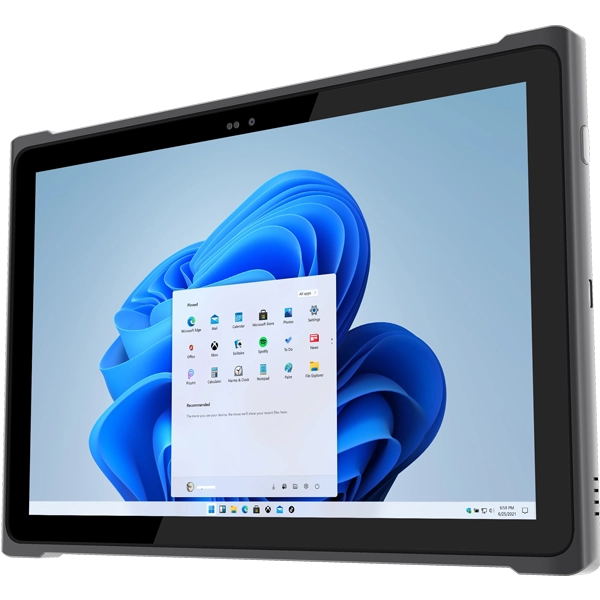

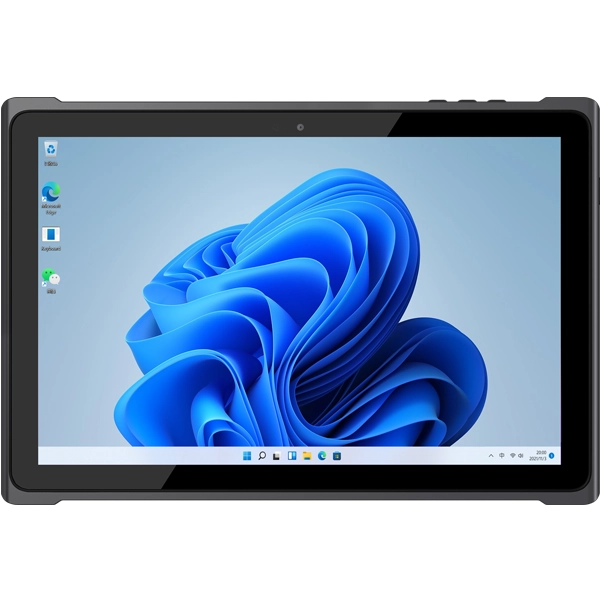

10.1'' ARM: EM-Q19 4G Windows 11 Slim Rugged Tablet With Barcode Scanner

  • With Built-in Barcode Scanner

  • ARM OCTA CPU with up to 2.4 GHz

  • Windows 11 OS, optional 8GB+128GB

  • 10.1 inch IPS screen with 10-point touch

  • Dual band WIFI 2.4G+5.0G(5.1G+5.8G)

  • High speed 4G LTE

  • Upgrade BT 5.1, fast and more stable

  • Support GPS / GLONASS / GALILEO / BDS

  • IP65 Waterproof and Dustproof


Rugged Tablet
Rugged Tablet
Rugged Tablet
Rugged Tablet
Rugged Tablet
IP65 IP65
GNSS GNSS
2D 2D
3G/4G 3G/4G
WiFi WiFi
Bluetooth Bluetooth
Windows Windows
High-capacity High-capacity
Camera Camera

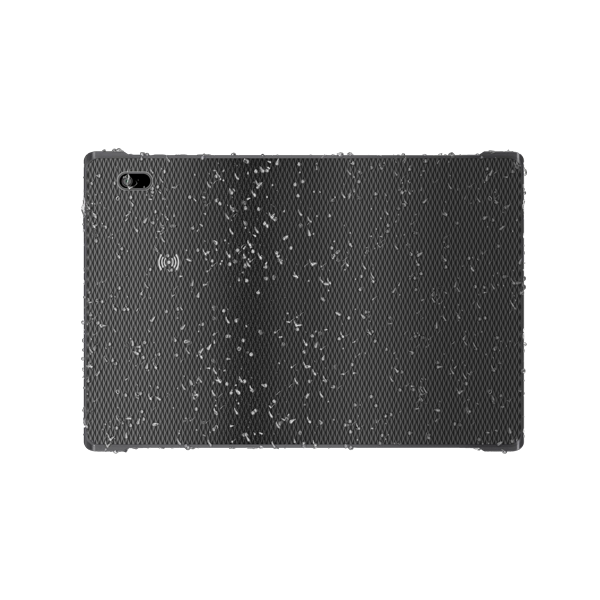

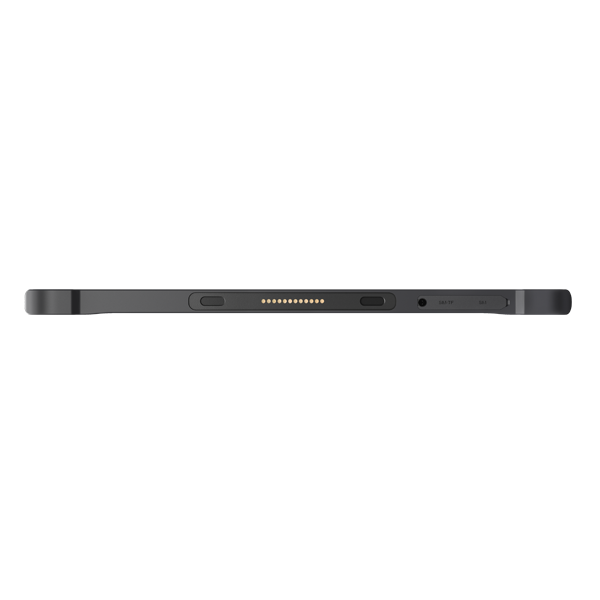

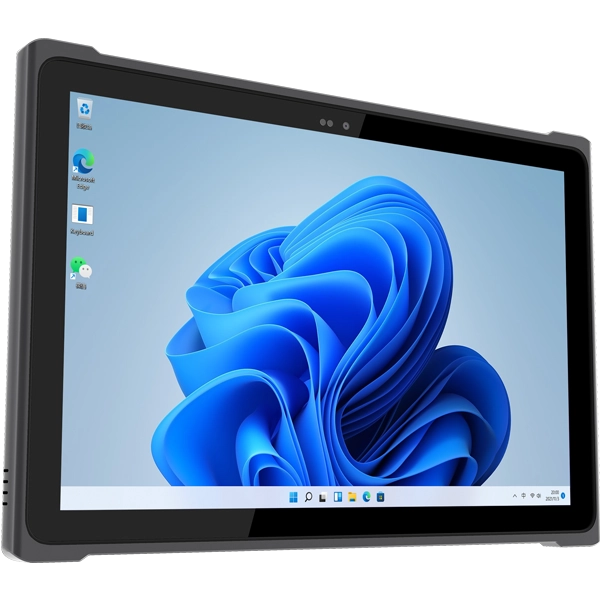

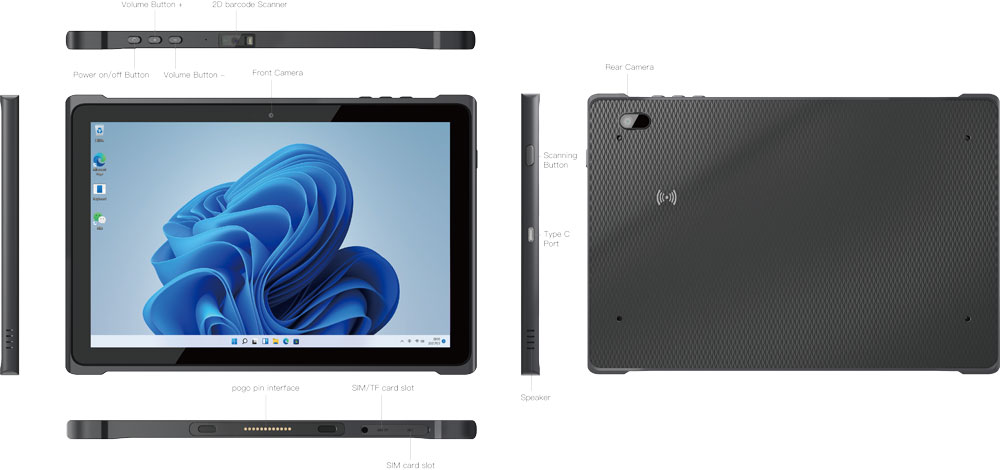

Multi-dimensional Views of EM-Q19: 4G Windows 11 Slim Rugged Tablet With Barcode Scanner

Rugged Tablet

Features of EM-Q19: 4G Windows 11 Slim Rugged Tablet With Barcode Scanner

  • Professional 2D scanner

  • Support GPS / GLONASS / GALILEO / BDS

  • Equipped with multiple accessories, like docking charger, hand-strap, detachable keyboard

  • Dual band WIFI 2.4G+5.0G(5.1G+5.8G)

  • High speed 4G LTE

  • Upgrade BT 5.1, fast and more stable

Specifications of EM-Q19: 4G Windows 11 Slim Rugged Tablet With Barcode Scanner

Basic parametersPerformance parameter
Dimension  263 x 177 x 10.5mmCPU  ARM OCTA Core
Weight  700gOS  Windows 11 Pro
Device Color  BlackRAM  8GB
LCD  10.1 inch IPS 16:10, 1200x1920, 400nitsROM  128GB
Touch Panel   10 point G+G capacitive touch screenBattery
Camera  Front 5.0MP Rear 13.0MPCapacity  4750mAh/7.6V
I/O  USB Type-C x 1,
SIM Card x 1, TF Card x 1,
(Two out of three Cato)
12PIN Pogo Pin x 1
Type  Built-in Li-polymer battery
Endurance   11hrs ( 50% volume sounds, 50% screen brightness,
1080P HD video display by default )
Data Collection
Power  USB Type-C interface,
Voltage stabilization 12V/3A, 36W
2DOptional
Optical resolution: ≥3mil
scan speed: 75 times /s
Code system:
1D:Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E,
Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code
93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11,
Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey,
MSI_x005f_x005f_x005f Plessey
2D:PDF417, QR Code, Micro QR, Data Matrix
Communication
WIFI  WiFi 802.11 a/b/g/n/ac (2.4G+5.0G or 5.1G+5.8G)
Bluetooth  BT5.1
Transmission distance: 10m
2G/3G/4G
(Optional)
European version band:
GSM:NA
WCDMA:B1/B3/B5/B8
FDD:B1/B3/B5/B7/B8/B20/B28(a+b)
TDD:B38/B39/B40/B41
American version band:
GSM:NA
WCDMA:B2/B4/B5
FDD:B2/B4/B5/B12/B13/B14/B17/B25/B26/B30/B66/B71
TDD:B38+B41N
Reliability
Operate
Temperature
  -10 °C ~ 50 °C
Store
Temperature
  -20 °C ~ 60 °C
Humidity  95% Non-Condensing
GNSS  Support GPS/Galileo/GLONASS/BeiDou(G+G+G+B)Rugged
Feature
  IP65 certified

Drop Height  1m

* Please be aware all technical data, specification and performance figures subject to change without notice.


Accessories of EM-Q19: 4G Windows 11 Slim Rugged Tablet With Barcode Scanner

Various modules and accessories can be selected to meet customers' application in various industries.


Application Range of EM-Q19: 4G Windows 11 Slim Rugged Tablet With Barcode Scanner

Various modules and accessories can be selected to meet customers' application in various industries.


Warehouse Logistics Industry
Warehouse Logistics Industry
Surveying Mapping Industry
Surveying Mapping Industry
Manufacturing Industry
Manufacturing Industry
Energy Industry
Energy Industry
Public Industry
Public Industry
Traffic Industry
Traffic Industry
