10'' Intel: EM-I16K Fingerprint/NFC Rugged PC

10.1' Windows Rugged Tablet EM-I16K

  • A right size Rugged Tablet with high performance

  • Intel® Core™ with Win10/ Linux OS Gorilla glass TP

  • 1D/2D barcode scanner/Fingerprint/NFC

  • A right size for work, 10.1' widescreen with Hight-Bightness Display is ready for every environment.

  • EM-I16K has rich experience in public safety, utilities and industrial manufacturing applications.

Windows Windows
IP65 IP65
GPS GPS
Bluetooth Bluetooth
Fingerprint Fingerprint
1D 1D
2D 2D
RFID RFID
3G,4G 3G,4G
WiFi WiFi

Features of 10'' Intel Tablet EM-I16K Rugged PC


  • Support for Windows 10 system

  • Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes

  • 5000mAh battery,  pluggable battery, 6-8 hours of machine endurance

  • IP65 high protection level, in accordance with MIL-STD-810G

  • Support GPS, more accurate positioning

  • Support 8 million pixel autofocus camera, easy to collect images and video information

  • Support 1D/2D, ID card and other functional modules for free selection

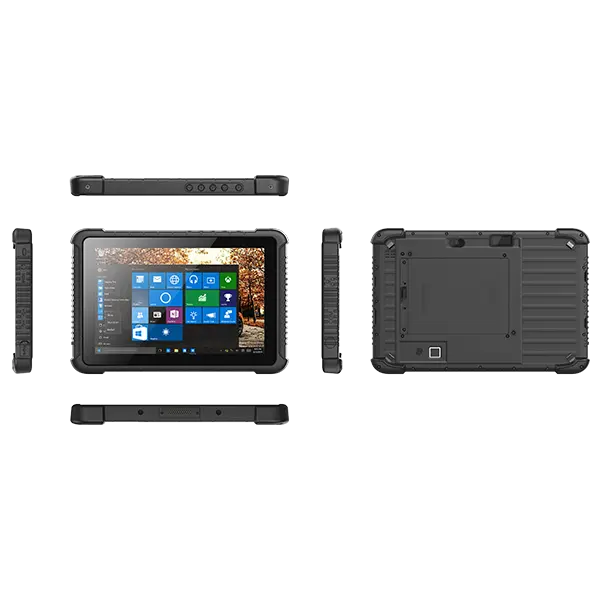

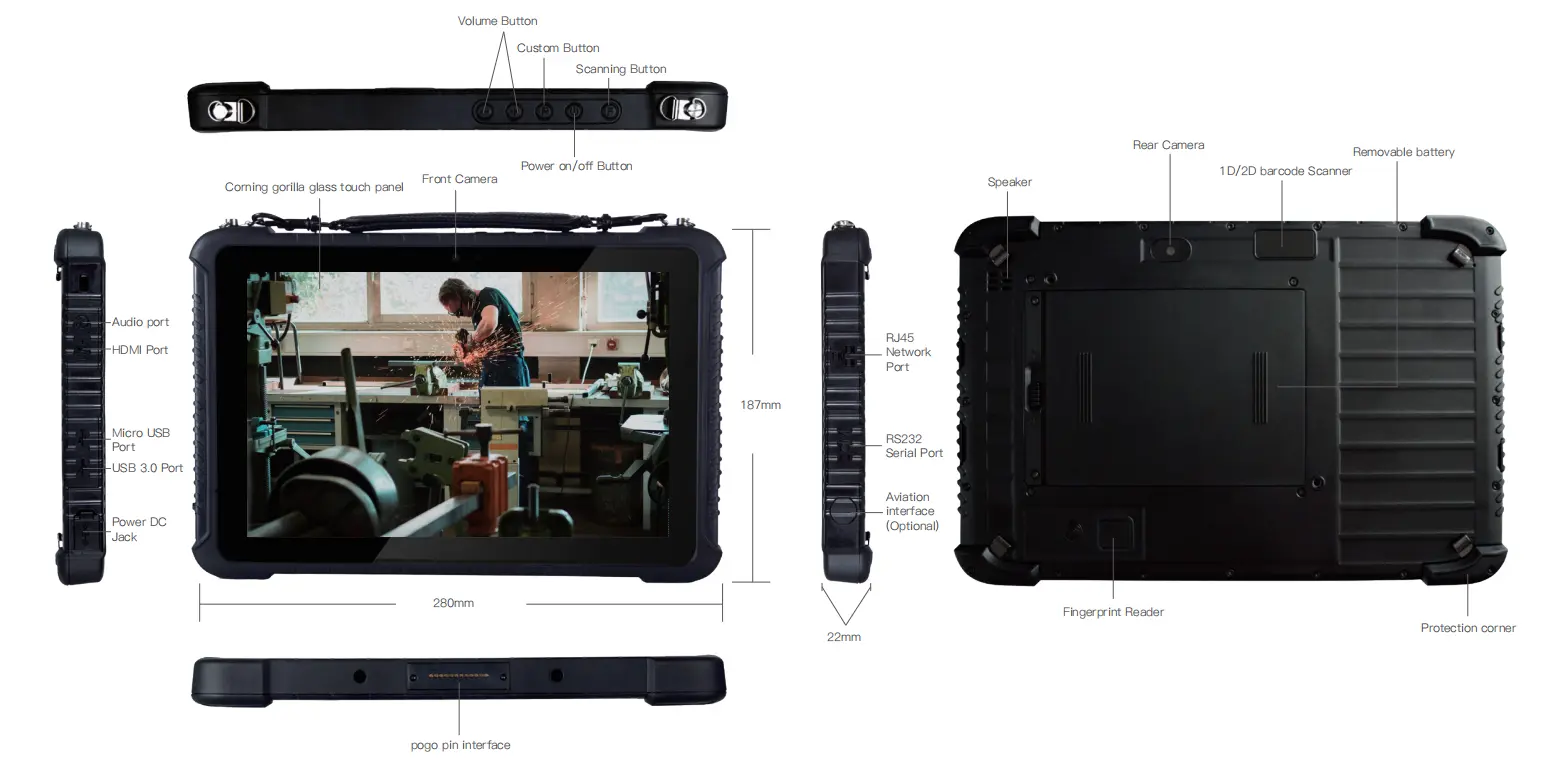

Six Views of 10'' Intel Tablet EM-I16K Rugged PC




Specifications of 10'' Intel Tablet EM-I16K Rugged PC


TypeDetailsStandard ConfigurationOptional
Product FormTypeRugged TabletNA
Dimension280*187*22mmNA
WeightDevice unit: 1014g
Unit with giftbox and standard accessories:1990g
Docking:290g,5000mAh battery:250g
NA
Device ColorBlack(Front and Rear Panel: Black,Decorate Board:Black)NA
LCDScreen Size10.1 inch   16:10NA
Resolution1200×1920NA
Brightness330 cd/m2Optional SLR Sunlight visible film
TPTouch Panel10 points Capacitive,G+G,Rigidity: above 7H-Anti-scratchOptional SLR Sunlight visible film
CameraFrontFront:2.0MP   with chargeing indicator lightNA
RearRear: 8.0MP    USB CameraNA
SpeakerBuilt-inEmbedded 8Ω/0.8W waterproof speaker x 1NA
Mic
Sensitivity:-42db, Output resistance:2.2kΩNA
BatteryTypeLithium-ion polymer battery , pluggable, dimension: 121.8*92.3*9.5mmStandard:1pcs,optional: 2pcs
Capacity7.4V/5000mAhNA
Endurance6hrs(default 50% volumn,default200nit,play 1080P HD video)NA
System Hardware Configuration
TypeDetailsDescriptionOptional
CPUTypeIntel® Skylake M3-6Y30kabylake Core™ m3-7Y30 /8200Y
Speed4M Cache, 2.20 GHzNA
GPUTypeIntel® HD Graphics 515NA
RAMDDR3L4GB8GB
SSDNGFF SSD64GB128G
G_sensorBuilt-inGravity acceleration sensorNA
Network Connections
TypeDetailsDescriptionOptional
WIFIWIFI ModuleWIFI 802.11(a/b/g/n/ac)  dual frequency 2.4G+5.8G WIFI intel 3165D2WG (3.3v)NA
BluetoothBuilt-inBT4.2 (BLE) class1  transmited distance:10mNA
3GBuilt-inNAFIBOCOM_H350
GSM/GPRS/EDGE Band(MHz):900/1800;WCDMA Band(MHz):900/2100
1.Asia Pacific,Europe
2.China Unicom 3G
4GBuilt-inEC25-EC
LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8
NA
GPSBuilt-inU-blox NEO-7,Support:GPS; Capture sensitivity:-160 dBm;Cool Start Time:<50 second,Hot start time:<28 second,Frequency:0.25 Hz … 10 MHz (configurable)NA
Data Collection
TypeDetailsDescriptionOptional
1D Barcode scannerOptionalNAMOTO  SE655E100R
Optical Position:5mil
Scan speed: 50/s
Symbol System:UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93  ,Code 11
2D Barcode ScannerOptionalNAEM80   Hardware decoder
Optical Position:5mil
Scan speed:50/s
Symbol System:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
 Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
Interface Configuration
TypeDetailsDescriptionsOptional
TF SlotExtensive External MemorySupport TF   x1    max:128GNA
SIM SlotSIM SlotSIM   x1NA
Micr usbUSB2.0Micr USB 2.0x1NA
type A usbUSB3.0USB 3.0*1NA
DC JackPowerDC 12V 4A ∮4.0mm Power connector  x1NA
Earphone JackAudio Output∮3.5mm Standard Earphone Jack  x1NA
HDMI JackAudio&Video OutputHDMI 1.4a Type C  x1NA
Extensive SlotPogo Pin12pin  Pogo Pin   x1NA
DB9 PORTUART Serial port*1 (RS232) TTL Electrical LevelNA
RJ45 PORTInternet port*1(10/100 Self-adaption)NA
Air outletAir outletNA*1( Build in small board for customer customized )  Motherboard reserved standard USB2.0 interface.
TLU1HPO2H0709J-50( Tong Mao Plug)
LU1HR04H0709K( Tong Mao Plug)
Standard Accessories
TypeDetailsDescriptionsOptional
OTG CableOTG CableUSB OTG to MICRO USB cable, length:45mmNA
USB CableUSB CableUSB to micro 5P L=1.2M  4 core aluminum foil shield cableNA
Power AdaptorStandardAC100V ~ 240V、50Hz/60Hz output DC 12V/4A       USA Standard  CE approvalUK Standard
EU Standard
Software Configuration
TypeDetailsDescriptionsOptional
Operation SystemOS versionwindows 10 Home 64bit   Default language:Englishwindows 10 Home 64bit
Windows 10 Pro 64bit
Windows 10 IOT 64bit
Product Certificate
TypeDetailsDescriptionsOptional
Certificate SystemIP65IP65 Report:Water Resistance:IP-X5,Dust Resistance:P-6X  Report ID no.:SET2015-07677
a.Inner Nozzle Diameter:6.3mm;   b. Water Speed:12.5±0.625L/min;
c. Water Pressure:Adjust according to water volumn;
d.Central part of water volumn :A round with a diameter of about 40mm at the distance from the nozzle 2.5m.
e.Spray time in surface of panele: About 1 min/Square meter;f.Test time:at least 3min;
g.Distance between nozzle and panel surface:2.5~3m。
After test,there is no water leakage in sample.
NA
CE-NBYESNA
MIL-STD-810GYESNA
CCCYESNA
BatteryUN3803,MSDS,IEC62133,Aviation, Ocean shipping reportsNA
Reliability
TypeDetailsDescriptionsOptional
Product ReliabilityDrop HeightMIL-STD-810G 1.22m drop
Operate Temperature‘-20 °C to 60 °C
Store Temperature’-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing
Product feature:
1.Support Windows 10;
2.Support  USB2.0 type A connector;
3.Support Battery Single Charger Docking;
4.Support GPS navigation;
5.Support 1D/2D barcode scanner;
6.Support Finger Identification;
7.Rugged IP65 protection level;
8.Support 5000mAh pluggable battery;
9.Support UART port, RJ45 port and customized port;
10.Support Wrist Strap and back jacket;



Accessories of 10'' Intel Tablet EM-I16K Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.


Hand-strap
Hand-strap
Back-Straps
Back-Straps
Car Charge
Car Charge
Vehicle Mount
Vehicle Mount
Docking Charger
Docking Charger

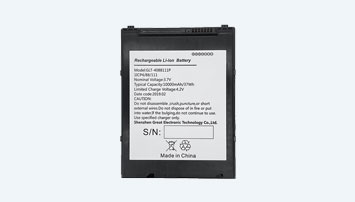

Battery
Battery
Shoulder-strap
Shoulder-strap
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Carry Handle
Carry Handle

Application Range of 10'' Intel Tablet EM-I16K Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.


Warehouse & Logistics Industry
Warehouse & Logistics Industry
Surveying & Mapping Industry
Surveying & Mapping Industry
Manufacturing Industry
Manufacturing Industry
Energy Industry
Energy Industry
Public Industry
Public Industry
Traffic Industry
Traffic Industry
